Question

FG200 OOB IN HA MODE

  • October 20, 2022
  • 1 reply
  • 1455 views

I have setup FG-200 in HA and it's not allowing me to define MGMT as OOB interface using the following command.



config system dedicated-mgmt
set status enable
set interface "mgmt"





FortiGate-200F-ACTIVE # config system dedicated-mgmt
command parse error before 'dedicated-mgmt'
Command fail. Return code 1



What should be my command to make it OOB?



1 reply

sagha
Staff
sagha
Staff
October 21, 2022

Hi Ataro,



Since the devices are in HA, you can have a look at this: https://community.fortinet.com/t5/FortiGate/Technical-Tip-HA-Reserved-Management-Interface/ta-p/190132



Thank you.

Shahan

ataro
ataroAuthor
Explorer II
October 21, 2022

My objective is to assign "MGMT" as OOB interface. How can I do this in HA mode?

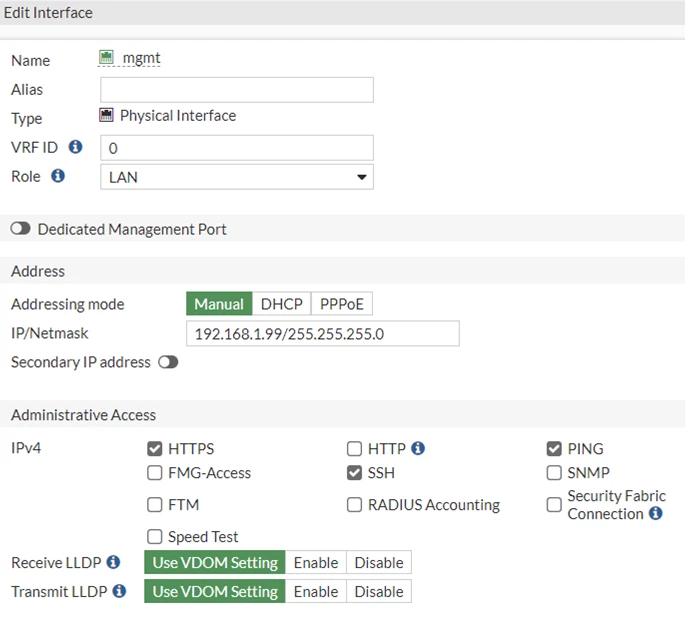

In the following setting, there is an option to select "Dedicated management port" Is this sufficient.  Please share he command to set MGMT as OOB and also define gateway for oob.








sagha
Staff
sagha
Staff
October 24, 2022

Hi @ataro,



yes, you can set this up as dedicated-to-management but please be aware that you would only be able to access on FGT at a time and that would be primary one.



To access both FGTs, you can setup  reserved management interfaces for both:

 https://community.fortinet.com/t5/FortiGate/Technical-Tip-HA-Reserved-Management-Interface/ta-p/1901...





Thank you.

Shahan
