Explorer III
October 5, 2022
Solved

FG 7.2.x Change Certificate for SSO SP port 7831

  • October 5, 2022
  • 4 replies
  • 3834 views

How can you change the SSL certificate presented by the SSO SP on port 7831?

Changing it under the following places does not seem to work.

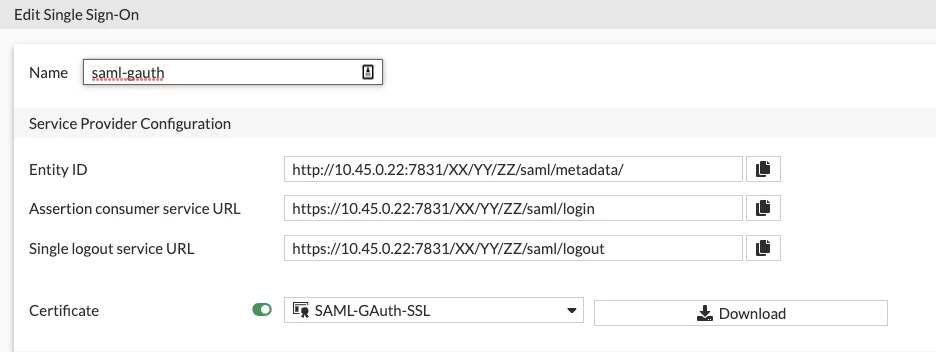

-User & Auth > SSO

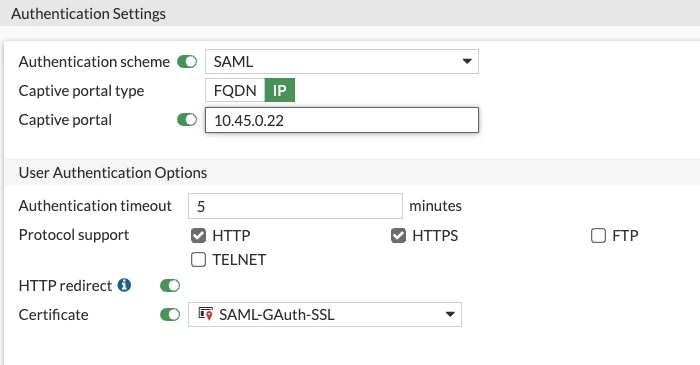

-User & Auth > Auth Settings >




I'm using this though an explicit proxy and it just continues to present the factory SSL cert with the FG serial number.



Best answer by Anonymous_User

The following settings will help you to assign the right certificate using FortiGate CLI.

By default, you would see:
FGT # show full web-proxy global
config web-proxy global
set ssl-cert "Fortinet_Factory"
set ssl-ca-cert "Fortinet_CA_SSL"

You should replace the imported SSL Certificate using FortiGate CLI.
config web-proxy global
set ssl-cert "new-ssl-example.com"

Reference:

Technical Tip: Fortiproxy and certificate used for... - Fortinet Community

4 replies

Anthony_E
Staff
Anthony_E
Staff
October 9, 2022

Hello Ryan,



Thank you for using the Community Forum.

I will seek to get you an answer or help. We will reply to this thread with an update as soon as possible.



Regards,

Best Regards
    Anthony_E
    Staff
    Anthony_E
    Staff
    October 11, 2022

    Hello Ryan,



    I have found this document:



    https://docs.fortinet.com/document/fortigate/7.2.0/administration-guide/447498/saml-authentication-in-a-proxy-policy



    Could you please tell me if it helps?



    Regards,

    Best Regards
    ryan_www
    ryan_wwwAuthor
    Explorer III
    October 11, 2022

    Hi Anthony,



    Unfortunately, I just worked though that link and it does not help.  I've tried both self signed and publicly signed certificates and none of them will show on connections to port 7831.  They do work for the regular captive portal.  (not going though the explicit proxy) I even just tried the factory CA certificate as shown in that example, but it did not work either.



    It is also interesting to note in the last screen shot of that link it looks like they are ignoring the certificate error too.  Notice the yellow warning triangle in the address bar.  Hopefully there is a way to change the SSL certificate presented on port 7831.






    Thanks for your assistance!

    Ryan



      Anthony_E
      Staff
      Anthony_E
      Staff
      October 12, 2022

      Hello Ryan,



      Thanks a lot for your feedback!



      I will continue to look for a solution.



      Regards,

      Best Regards
      ryan_www
      ryan_wwwAuthor
      Explorer III
      October 12, 2022

      You're welcome!



      Is there any way to make port 1003 reachable via the explicit proxy using a local in policy rule?  I think that could be a potential short term work around to the issue.

      A
      Anonymous_UserAnswer
      Contributor
      March 9, 2023

      The following settings will help you to assign the right certificate using FortiGate CLI.

      By default, you would see:
      FGT # show full web-proxy global
      config web-proxy global
      set ssl-cert "Fortinet_Factory"
      set ssl-ca-cert "Fortinet_CA_SSL"

      You should replace the imported SSL Certificate using FortiGate CLI.
      config web-proxy global
      set ssl-cert "new-ssl-example.com"

      Reference:

      Technical Tip: Fortiproxy and certificate used for... - Fortinet Community
