Failed FSW108F - FortiLink mode over a layer-3 network

  • October 24, 2023
  • 4 replies
  • 2035 views


Hi Community,

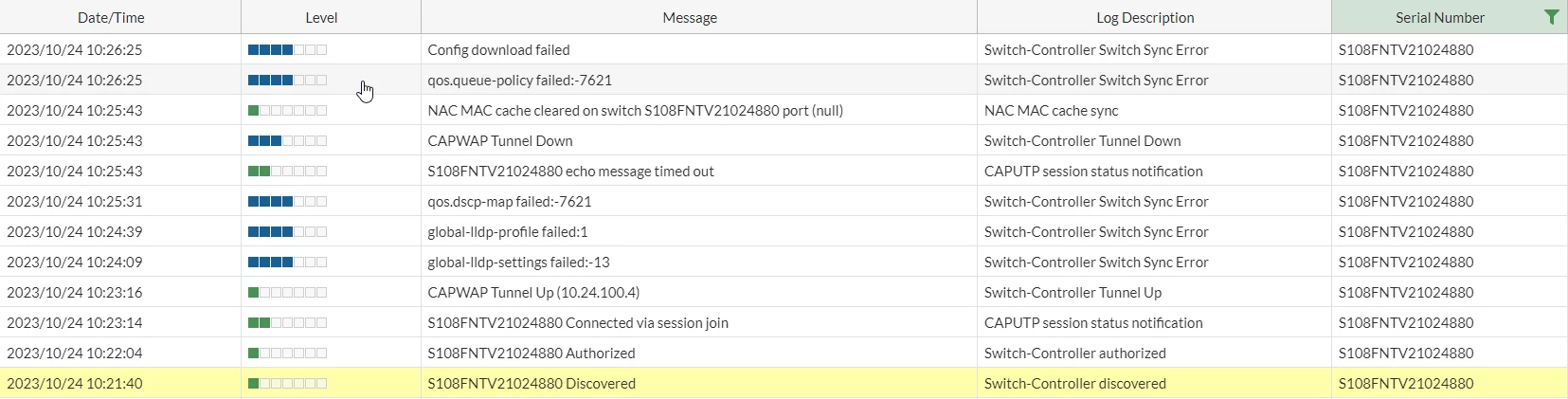

I'm running into a problem while testing a customer setup. Customer is using a 3rd party device between FG and FortiSwitches, so I'm testing that setup. FortiLink mode over a layer-3 network is working fine with 2 FS224D-FPOE, but the FS108F is making some trouble. Fortigate is running version 7.2.5, all FortiSwitches are running 7.2.3. As you can see in the screenshot, CAPWAP is coming up, but after some time there are some error messages and the CAPWAP is down again. Anyone an idear what's wrong here? When connecting the FS108F direct to another fortiswitch, it's working fine.



Thanks

Regards

Nico

2023-10-24 10_38_17-FortiGate - FG-Consulting_Testlab.png

Best answer by Niggo0609

Hi Anthony,



I already was able to solve that one. I've done a FW update for the 108F from v7.2.3 to v7.2.4.

Now the switch is stable.



Anyhow, thanks a lot for taking care of this one.

4 replies

Anthony_E
Staff
Anthony_E
Staff
October 27, 2023

Hello Nico,


Thank you for using the Community Forum. I will seek to get you an answer or help. We will reply to this thread with an update as soon as possible.


Thanks,

Best Regards
Anthony_E
Staff
Anthony_E
Staff
October 30, 2023

Hello Nico,



We are still looking for someone to help you.

We will come back to you ASAP.


Regards,

Best Regards
Niggo0609
Niggo0609AuthorAnswer
New Member
October 30, 2023

Hi Anthony,



I already was able to solve that one. I've done a FW update for the 108F from v7.2.3 to v7.2.4.

Now the switch is stable.



Anyhow, thanks a lot for taking care of this one.

    Anthony_E
    Staff
    Anthony_E
    Staff
    October 30, 2023

    Hi Nico,



    Thanks a lot for your answer that will help :)!



    Regards,

    Best Regards
