Facebook blocked and not blocked with same policy

  • February 6, 2024
  • 7 replies
  • 11418 views

Hello,



I have a mystery on a Fortigate.

I have a security group that block Facebook using application control and webfilter categories.

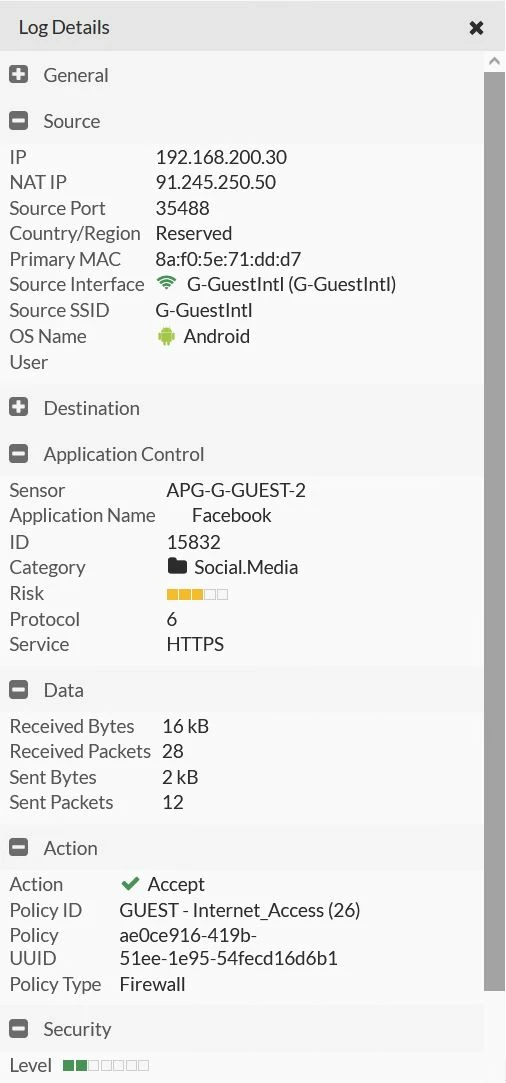

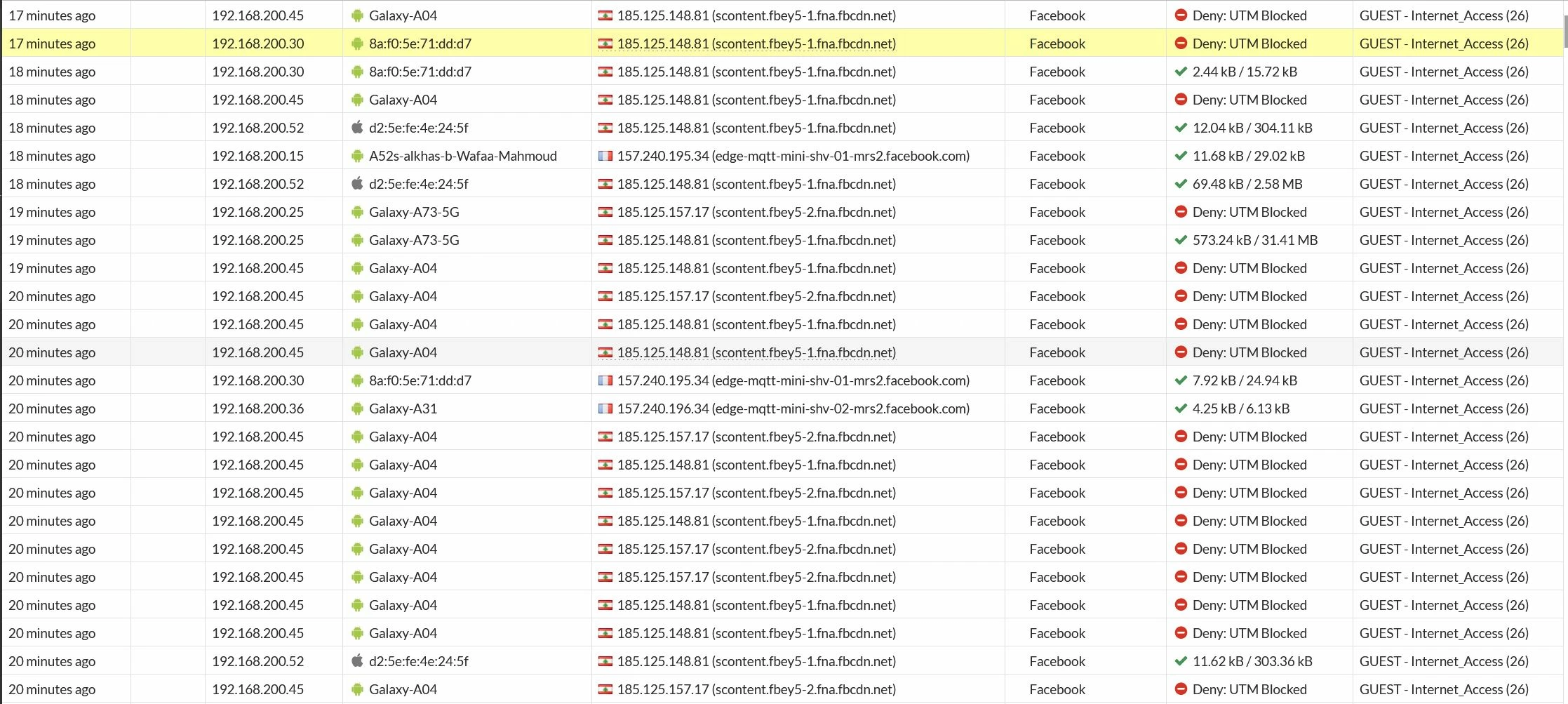

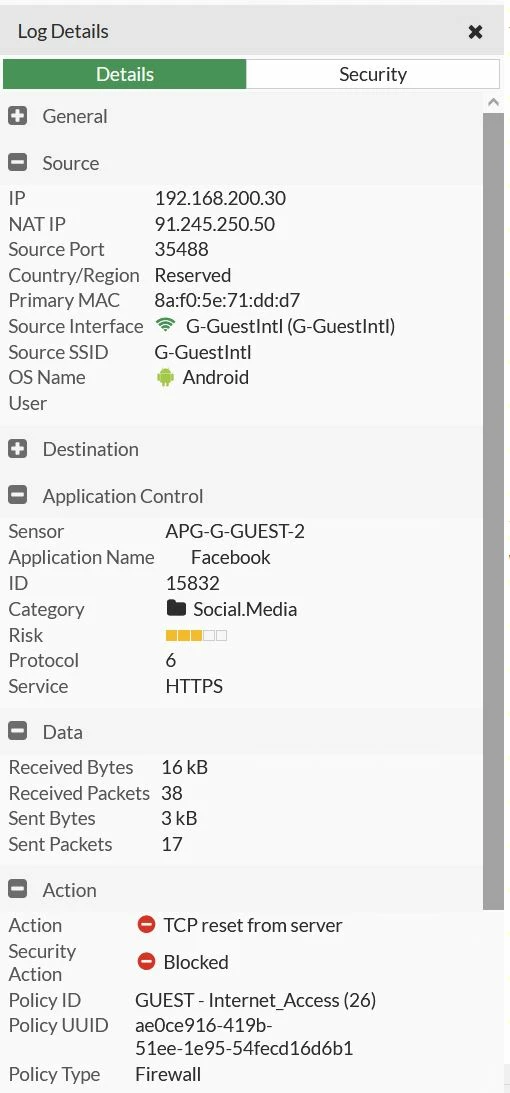

My users told by that they still can use Facebook. I checked the log and I see that most of the traffic linked to Facebook is blocked, but, I have some line with allowed traffic to facebook, using the same firewall policy. it's unbelievable, my own rules which block Facebook is also allowing it.

How this is possible ?

2024-02-06 12_03_25-Clipboard.jpg2024-02-06 12_05_11-Clipboard.jpg




2024-02-06 12_06_18-Mozilla Firefox (Work Resources).jpg





Best answer by fricci_FTNT

Proxy mode can be a workaround for now.
Flow-based inspection uses hardware acceleration (where available, depends on the model), Proxy inspected traffic goes through the FortiGate main CPU.
Using Proxy mode is more CPU intensive but in normal condition should be fine, it actually depend on the traffic running through the FortiGate. Please keep on eye on the CPU (get sys performance status).

Here you can find some more details about Flow/Proxy inspection: https://docs.fortinet.com/document/fortigate/7.4.2/administration-guide/721410/inspection-modes

Best regards,

7 replies

adambomb1219
SuperUser
adambomb1219
SuperUser
February 6, 2024

What does your rule actually look like?  Are you using Application Control?  ISDB?  Something else?  Also why would you block Facebook on a guest network?

Ambush4261
Ambush4261Author
Explorer
February 6, 2024

Hi,



I'm using a firewall policy, flow-based,  which use a "security profile group" which use "web filter and "application control".

I block the social media category in the application control profile and also in the web filter filter profile.

AEK
SuperUser
AEK
SuperUser
February 6, 2024

Hello

SSL deep inspection is required to recognize most facebook traffic.

Try on of the below:

  • Either enable deep inspection
  • Or you can always try filtering by ISDB
AEK
    Ambush4261
    Ambush4261Author
    Explorer
    February 6, 2024

    I am using "certificate inspection" not the deep one because of the complexity of deploying the router certificate on the users smartphone.

    What do you mean by ISDB, the categories in the fortigate ?

    AEK
    SuperUser
    AEK
    SuperUser
    February 6, 2024

    Create a "deny" policy and add the related fb services as destination.

    Please see the below guide:

    https://docs.fortinet.com/document/fortigate/6.2.15/cookbook/179236/using-internet-service-in-policy

    AEK
    Ambush4261
    Ambush4261Author
    Explorer
    February 6, 2024

    okay, well understood, I will try with the new rule and the fb related service, good idea.



    Thanks for support!

    Ambush4261
    Ambush4261Author
    Explorer
    February 6, 2024

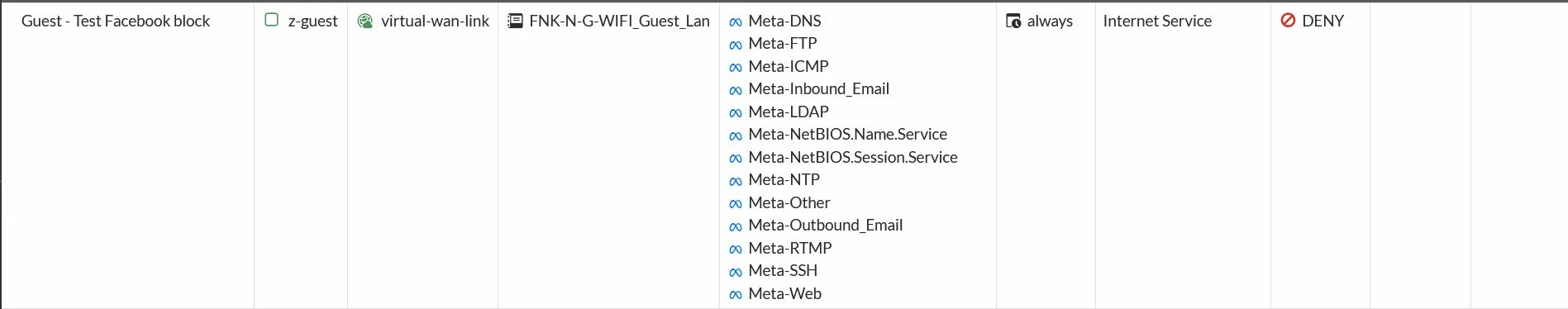

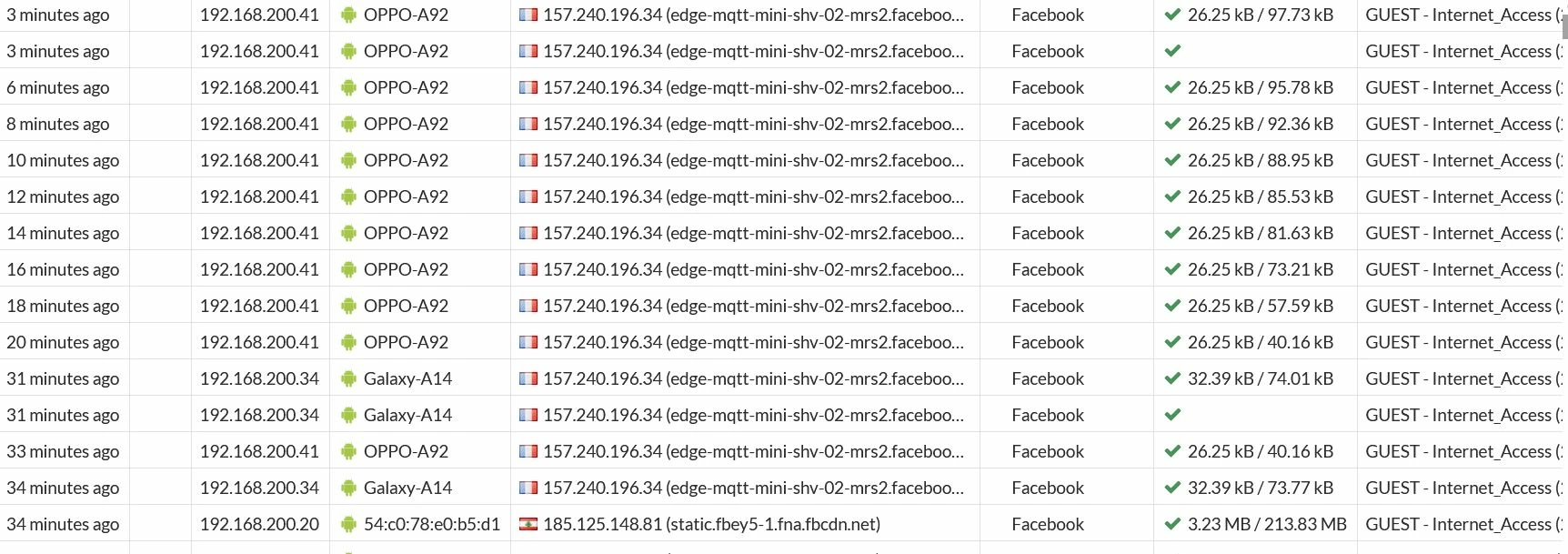

    Just tested with the ISDB, it block some of the traffic but a lot is not blocked.



    2024-02-06 16_04_30-Clipboard.jpg





    2024-02-06 16_05_55-Clipboard.jpg

    AEK
    SuperUser
    AEK
    SuperUser
    February 6, 2024

    Are you using policy based mode? (check in System > Setting)

    Can you also check the ISDB signatures date? (check in System > FortiGuard)

    AEK
    Ambush4261
    Ambush4261Author
    Explorer
    February 8, 2024

    I switch to "proxy-based" and it seems to work much better, 99% of the traffic I want to block is really blocked now.

    Whats the impact of settings a firewall policy to proxy-based instead of flow-based ? it will load the firewall cpu ?

    fricci_FTNT
    Staff
    fricci_FTNTAnswer
    Staff
    February 8, 2024

    Proxy mode can be a workaround for now.
    Flow-based inspection uses hardware acceleration (where available, depends on the model), Proxy inspected traffic goes through the FortiGate main CPU.
    Using Proxy mode is more CPU intensive but in normal condition should be fine, it actually depend on the traffic running through the FortiGate. Please keep on eye on the CPU (get sys performance status).

    Here you can find some more details about Flow/Proxy inspection: https://docs.fortinet.com/document/fortigate/7.4.2/administration-guide/721410/inspection-modes

    Best regards,
