May 31, 2022
Solved

External Connector FSSO Agent on Windows AD

  • May 31, 2022
  • 3 replies
  • 10268 views

Hello everyone,



I have two different FortiGates I recently installed on my work network.

Fortigate 200E

Fortigate 81E

They are both on FortiOS 6.4.8



I am having an issue with one of them (the 81E) not fully populating the users/group. Are there limitations on the selected groups the Fortigate 81E can choose simultaneously? And if there is, what is the best way to specify a group. See the screenshots attached.



They are both connected to the same FSSO agent on a windows device.



Thanks in advance for your help.

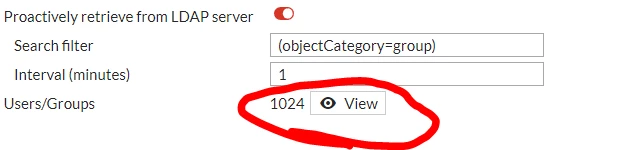

FGT-200E FSSO.PNGFGT-81E FSSO.PNG



Best answer by bpozdena_FTNT

1024 is the maximum number of FSSO user groups supported by Fortigate 81E.






Source: https://docs.fortinet.com/max-value-table



You will need to apply group filter and only synchronize the groups you actually need for your firewall policy configuration.

3 replies

A
Anonymous_User
Contributor
June 1, 2022

I can see the difference between interval(minutes). 1st picture is 180minutes and 2nd picture is 1 minutes.  Longer interval allow Fortigate to retrieve proper information. 1 minutes might be too fast to complete the task and you may see this kind of behavior. Try to increase the inverval between 15-30 minutes. Hope that helps.

xsilver_FTNT
Staff
xsilver_FTNT
Staff
June 1, 2022

Agree, 1 minute interval is nonsense ..
1. you are going to overload LDAP with periodical queries.



2. once the LDAP starts to have load issues and start to react slowly, your queries stockpile and will just increase the load with non-responded queries queued.



3. once there will be issue connecting to that LDAP (DoS / network outage / load on server), then FortiGate will start to stockpile non-responded queries in queue which is memory, so you will possibly overload FortiGate as well.



4. seriously, how often do you change group membership of the users and how fast you need to sync this "promotion" through all connected systems?

You just need to find a balance between sync time and for how long you can keep possibly older group membership info, versus some reasonable auto-update interval.

Besides that, if group cache record times out, then on next login spotted by FSSO there will be fresh LDAP group membership query anyway.



In summary, I do not see any reason to knock on LDAP's door extremely often.
Short intervals like 30 minutes are fine. And even longer update periods like few hours might be OK as well, as said it depends mainly on frequency of your group membership changes.



bpozdena_FTNT
Staff
bpozdena_FTNTAnswer
Staff
June 1, 2022

1024 is the maximum number of FSSO user groups supported by Fortigate 81E.






Source: https://docs.fortinet.com/max-value-table



You will need to apply group filter and only synchronize the groups you actually need for your firewall policy configuration.

    80211WiGuy
    80211WiGuy
    Explorer III
    November 23, 2022

    Hello Bpozdena,

    TAC found your post for me on a similar case.  I'm very interested to know how you are able to determine that "user.adgrp" is the object in the maximum values table that's most relevant to this?  I was hoping the max val table would have links to descriptions for each object but havent come across documentation on these objects yet in our search.

    bpozdena_FTNT
    Staff
    bpozdena_FTNT
    Staff
    November 24, 2022

    Hello 80211WiGuy,



    The object names in the maximum value table follow the same naming as in FortiOS CLI, just separated with a dot instead of space.



    Whenever an FSSO user group is synchronized into Fortigate, the group is saved in the config file under config user adgrp . You can list all FSSO groups with command show user adgrp .



    FortiOS CLI command Object Name in Maximum Value Table
    config firewall policy firewall.policy
    config user adgrp user.adgrp



    If you wish to find out the complete maximum values for your FortiGate unit, use the following CLI command: print tablesize

    Zerotrust
    ZerotrustAuthor
    Explorer
    June 1, 2022

    Thanks, everyone, for your replies. I have already adjusted the interval times to a longer query. The 1 minute was just a test.



    I will apply a filter and include only the groups I need.
