Question

External Captive Portal Redirect Error

  • December 22, 2024
  • 4 replies
  • 2343 views



Hello,

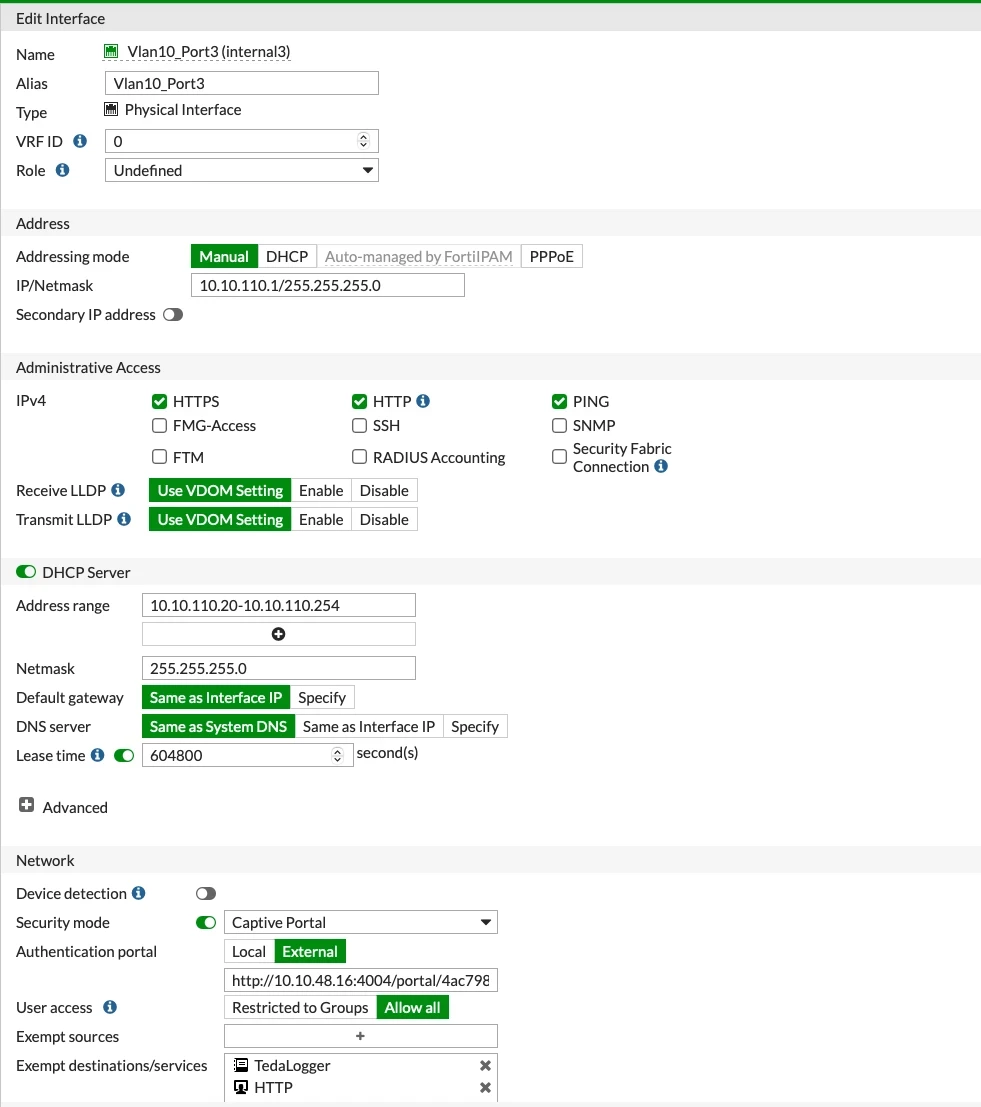

I'm trying to implement an external captive portal. For this, I designed a React frontend and I'm using a RESTful service to send accessRequest and CoA requests over RADIUS on the firewall. I created a dedicated VLAN for the guest network and configured the external captive portal through Network > Interfaces. I also set up FreeRADIUS and performed connectivity and authentication tests, all of which worked smoothly as described in the documentation.

After completing these steps, I connected to the Wi-Fi network with my mobile phone and obtained an IP address, but instead of being redirected to the captive portal login page, I was taken directly to the company’s homepage. To resolve this issue, I tried moving all the captive portal pages to the public cloud. I even created some static HTML pages to test the redirection, but unfortunately, I haven’t made any progress yet.




 

4 replies

apFortinet
Staff
Staff
December 22, 2024

Hi @capitansec ,



Please check below article on how to troubleshoot if captive portal is not getting triggered:

https://community.fortinet.com/t5/FortiGate/Troubleshooting-Tip-How-to-troubleshoot-if-captive-portal-not/ta-p/267904



Regards,

Ankit

If you have found a solution, please like and accept it to make it easily accessible to others.

kaman
Staff
Staff
December 22, 2024
capitansec
New Member
December 24, 2024

@apFortinet @kaman thanks guys. It didn't work. Configurated settings as you reffeer. What else can I try?

qumhh
New Member
December 24, 2024

The only way to avoid this from the FortiGate's side is to process it all through HTTPS -> config user setting > set auth-secure-http enable > end.
The price to pay is that you will need a valid certificate for the hostname used in that URL. (the redirection URL hostname is configurable in config firewall auth-portal)
