Question

EMS 7.4.4 Web Server 500 Error after migration

  • September 16, 2025
  • 17 replies
  • 4293 views

In my test environment, I migrated from FortiEMS client 7.2.2 to 7.4.4.
We deployed EMS on a Hyper-V VM.
I didn't encounter any issues during the migration.

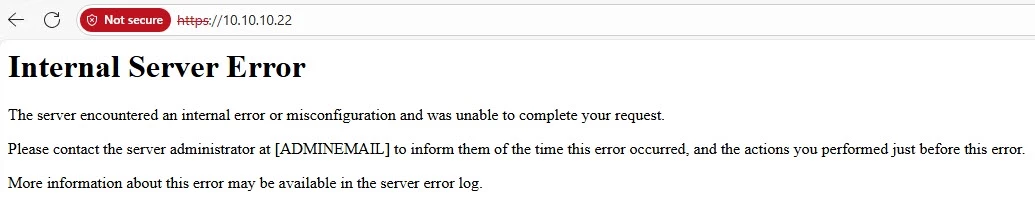

I want to start the console now, but I'm getting the error below.

I think it has something to do with the certificate, among other things.
How can I remove it and/or configure/import a new certificate?

17 replies

AEK
SuperUser
SuperUser
September 16, 2025

This doesn't look as certificate error.

Try check service logs from CLI.

https://docs.fortinet.com/document/forticlient/7.4.4/ems-cli-reference/370213/emscli-service-log

AEK
SteveJW
SteveJWAuthor
New Member
September 17, 2025

Hi,
service log --all.
I can't attach/upload the logfile??

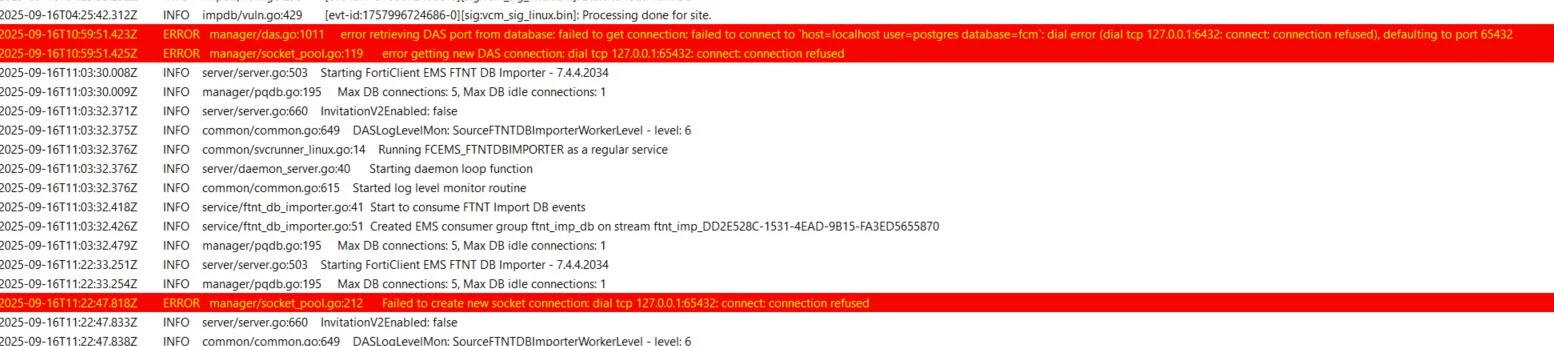

I see several errors in the log, including this one:

I don't know if this is the cause.

It suddenly occurred to me that I haven't configured a static IP address.

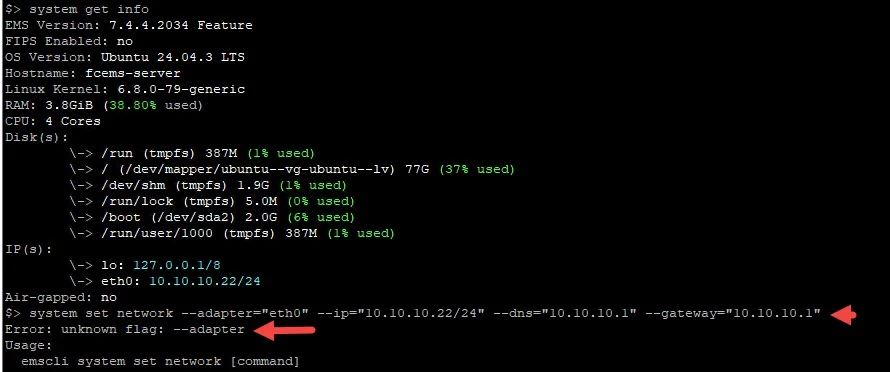

When I try to do this now, I get the error below.

Thanks.

AEK
SuperUser
SuperUser
September 17, 2025

It seems you forgot the "ip" sub command.

system set network ip | FortiClient 7.4.4 | Fortinet Document Library https://docs.fortinet.com/document/forticlient/7.4.4/ems-cli-reference/230835/system-set-network-ip

AEK
SteveJW
SteveJWAuthor
New Member
September 17, 2025

Thanks. I overlooked that.
I've now set a static IP address, but after a restart, I still can't start the console.

AEK
SuperUser
SuperUser
September 19, 2025

Can you share the new error from the log file?

AEK
SteveJW
SteveJWAuthor
New Member
September 19, 2025

I'm seeing several errors, but I'm not sure which ones might be related to my inability to access the console.
The output of the "service log --all" exceeds the number of characters I can post.
Is there a specific log file I can post the contents of?

pukalsu1
New Member
September 19, 2025

Yeah, it does appear broken at present. I can't download it either.

Considering it's freely available anyway, I've grabbed it off the Support Portal for you and dropped it here.

SteveJW
SteveJWAuthor
New Member
September 20, 2025

@pukalsu1
I think you posted your comment in the wrong post. :-))

The temporary location of the log file is valid for 6 days.
https://filebin.net/7yy95cba1plqqmkc

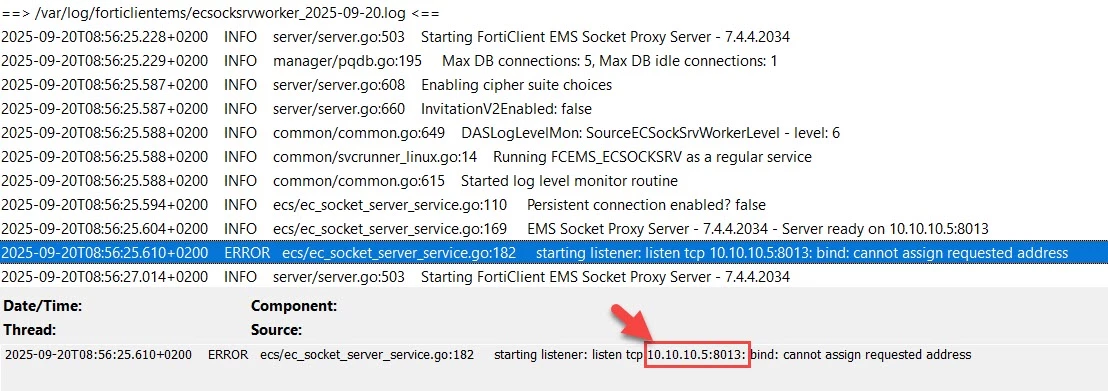

The reason for not being able to reach the web console is apparently that after the migration, the connection is made with the IP address of the Windows EMS server instead of the Ubuntu EMS server.

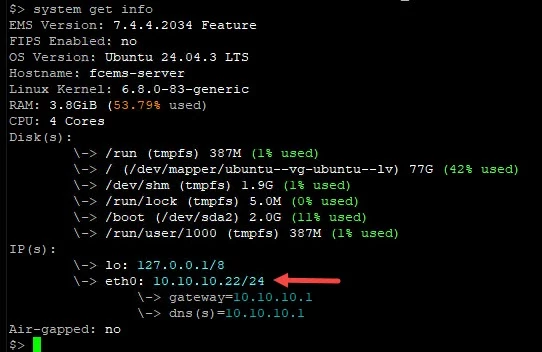

The IP address of the Ubuntu EMS server is 10.10.10.22.

Did something go wrong during the migration? I didn't see any error during or after migration process

How can I change the listener IP?

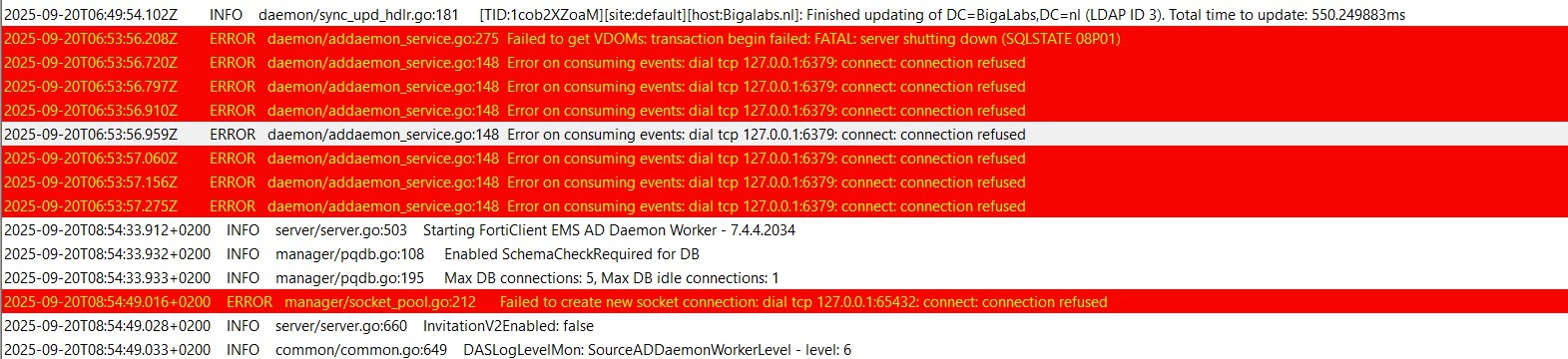

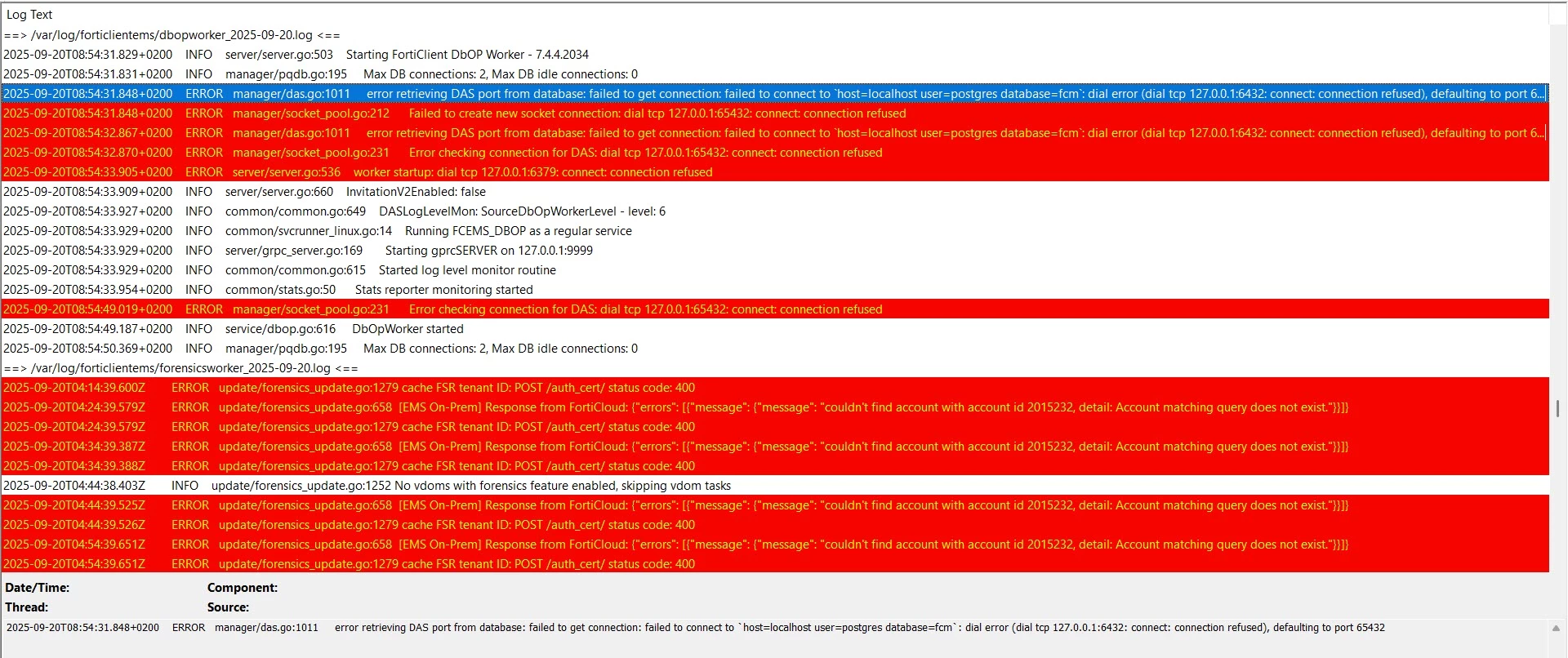

I see the following error frequently appearing in various log files:
2025-09-20T08:54:49.024+0200 ERROR manager/socket_pool.go:212 Failed to create new socket connection: dial tcp 127.0.0.1:65432: connect: connection refused
Is this related to a server restart? The server was restarted around 8:54 AM.

Thanks

AEK
SuperUser
SuperUser
September 20, 2025

I see the DB port is 6432 while I think the default should be 5432.

Can you share the following:

service get --all
config get db db.host
config get db db.port



AEK
SteveJW
SteveJWAuthor
New Member
September 21, 2025

Hi AEK,

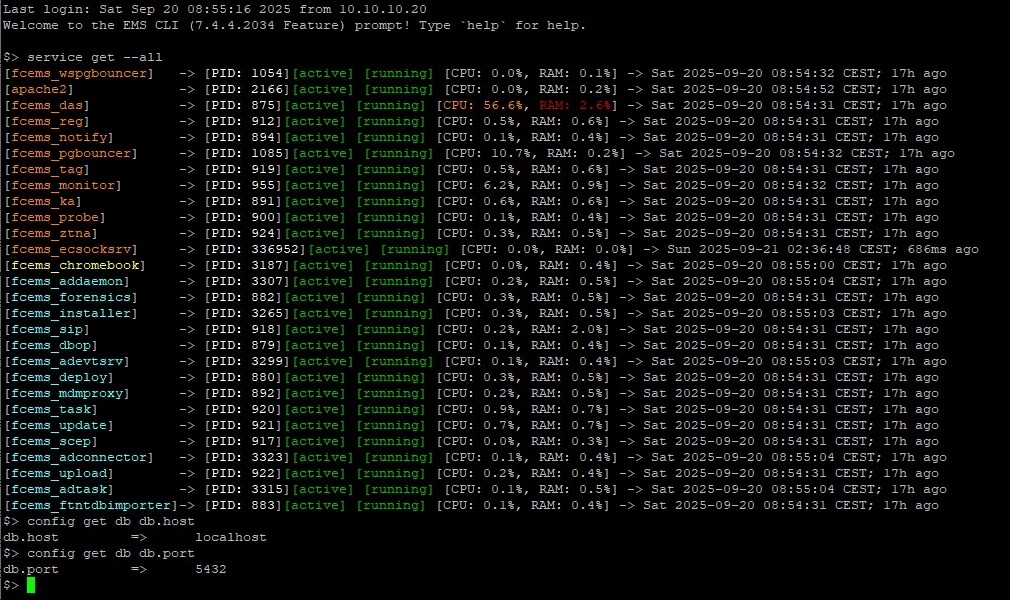

See printscreen

AEK
SuperUser
SuperUser
September 21, 2025

I see it is configured on the default port 5432, so I wonder why the app is trying to connect to 6432 instead?

I don't know how this could happen, and I don't find a way how to tell the app to use 5432 instead of 6432, but as a workaround I'd suggest to try change the DB port to 6432 so the app can find it with its current setting.

config set db --db.port 6432

The reboot the VM (probably required).

In case it doesn't work then rollback the change like this:

config unset db --db.port

Hope it helps.

AEK
SteveJW
SteveJWAuthor
New Member
September 22, 2025

Unfortunately, changing the DB port to 6432 didn't solve the problem.

I'll run the migration again.

Fortunately, I created a snapshot, so I can start the migration in a few minutes.



I only ran certain commands after the migration, such as configuring a static IP address and the timezone.

I don't think that's the cause, but I'll run the following before migrating:

system set network ip --adapter="eth0" --ip="10.10.10.22/24" --dns="10.10.10.1" --gateway="10.10.10.1"

execute timezone set Europe/Amsterdam



Are there any other commands I can run before starting the migration?

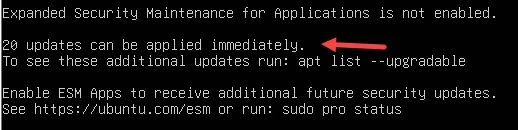

For example, I see that updates can be installed.


How can I install the updates?
