Question

Email alert when switching to another real server

  • March 15, 2023
  • 1 reply
  • 1536 views

Hi,

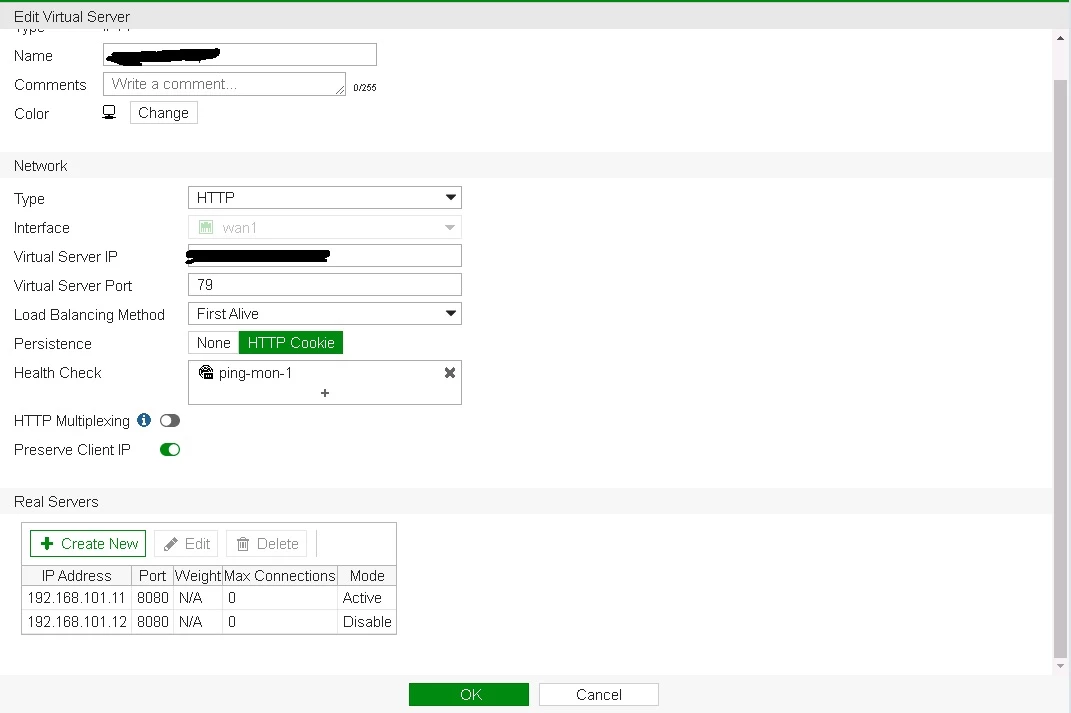

In virtual server setting, if there are two real server configured and the load balancing method is configured as "First Alive". May I know any email alert can be sent when switching to another real server (e.g. the original server A is down)?





1 reply

srajeswaran
Staff
srajeswaran
Staff
March 15, 2023

We can use the automation stitch to trigger the email alert based on the event log generated for the server down event.



https://community.fortinet.com/t5/FortiGate/Technical-Tip-Use-FortiGate-automation-stitches-for-alert-emails/ta-p/193355

TerryLeung
TerryLeungAuthor
New Member
March 15, 2023

Hi Suraj,

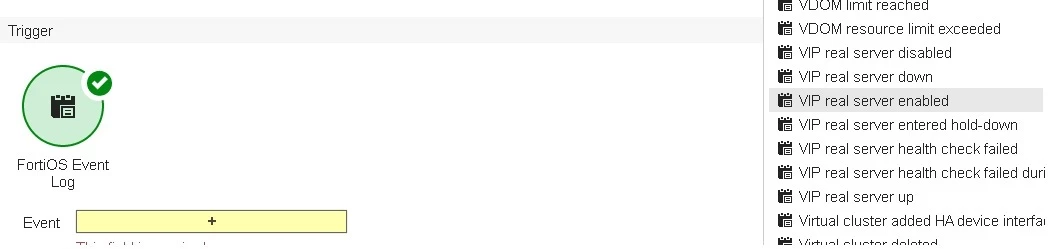

Thanks for your reply, I have tried to add automation rule with event log alert "VIP real server disabled". I expected that I can receive email when I disable one of real server but no luck. Is any further setting I need to conduct?








srajeswaran
Staff
srajeswaran
Staff
March 15, 2023

We need to configure the trigger (VIP real server disabled) , action (email).



Need to make sure the email settings are correct - ref : https://help.fortinet.com/fos60hlp/60/Content/FortiOS/fortigate-system-administration/Monitoring/Alert%20email.htm



Also, do you see the "VIP real server disabled" event under logs >system events?

For testing the email alert, we may use some other logs like login/logut events as trigger and then change the event to the LB log.
