Easily Identify FortiSwitch port searching by MAC (FortiLink CLI)

Forum|Forum|8 months ago
December 5, 2025
4 replies
958 views

I’m using Fortilink to manage switches from the Fortigate. When searching to find the port for a device MAC I can dump the mac table using this command:

# diag switch-controller switch-info mac-table

This gives me pages and pages since I have 25 FortiSwitches on this system. When I use grep and add the MAC, there can be one line for every switch that has this entry in its table. I can tell from the output below that the device is on Port43 but no good way to tell which FortiSwitch in Foritlink.

# diag switch-controller switch-info mac-table | grep 23:27

MAC: fc:0f:e7:17:23:27 VLAN: 249 Trunk: _FlInK1_ICL0_(trunk-id 0)

MAC: fc:0f:e7:17:23:27 VLAN: 249 Trunk: 8EPTF24001548-0(trunk-id 11)

MAC: fc:0f:e7:17:23:27 VLAN: 249 Trunk: E24TF24002765-0(trunk-id 1)

MAC: fc:0f:e7:17:23:27 VLAN: 249 Trunk: _FlInK1_MLAG0_(trunk-id 0)

MAC: fc:0f:e7:17:23:27 VLAN: 249 Port: port43(port-id 43)

MAC: fc:0f:e7:17:23:27 VLAN: 249 Trunk: 8EPTF24001548-0(trunk-id 0)

It would be nice if every line in the dump had the FortiSwitch name at the beginning, but it doesn’t. Anyone found a good way to get this information in the CLI? I’ve tried using the -f switch with grep but that doesn’t work.

AEK

SuperUser

Since FOS' grep command is not as rich as Linux', as a workaround I'd copy the whole text to my text editor and search for the MAC.

A dumb workaround but is better than nothing.

AEK

ebilcari

Staff

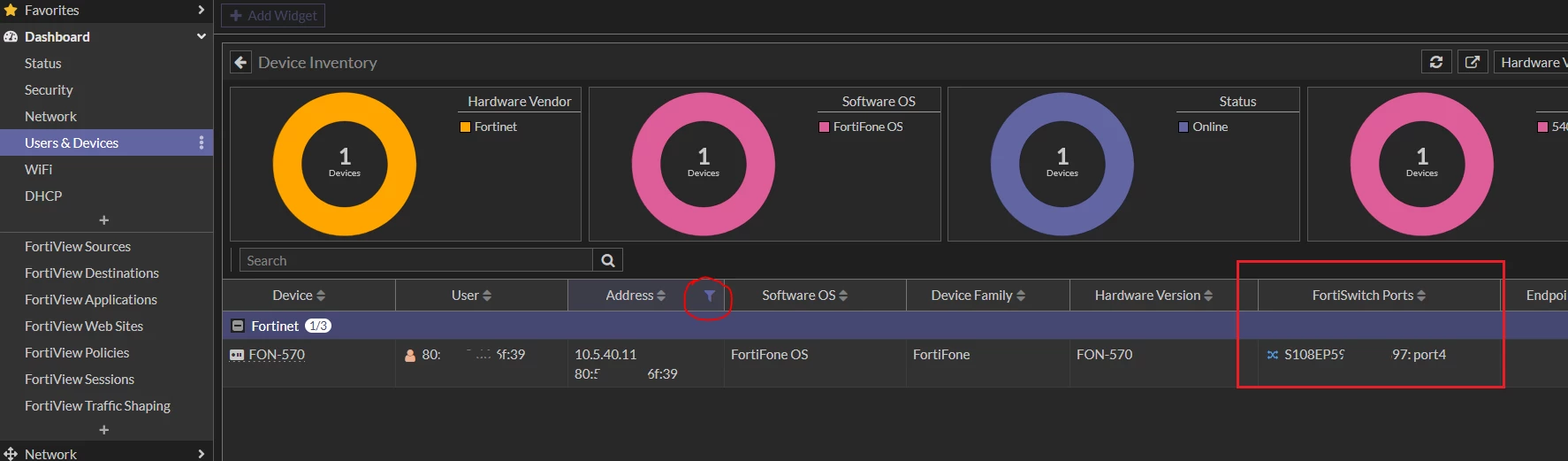

You can use the FGT UI, it can be checked in Device inventory, filter by Address:

or similar in FortiSwitch Clients output and filter by Device.

I tried from the CLI and ended up with a complex output that contains this information scattered throughout the lines. :)

# diagnose user-device-store device memory list | grep 80:5xxxx:6f:39 -A10

Emirjon

Jeremy5385Author

Visitor III

The "diag user-device-store ..." is really clunky and hard with having to vary the -A syntax depending on the device return. The result is there none-the-less.

I'm guessing Device Inventory is now Assets & Identities > Assets in 7.6. In there, I was able to add the FortiSwitch and Port columns to see the data. This seems to be the easiest method. Still wish the CLI had an easy one-liner return. Thanks for the UI find.

AEK

SuperUser

I believe SNMP can help as well. There must be some OID to list the MAC addresses.

You can run snmpwalk from a Linux host and use grep, awk, and other cool text filtering commands.
