Disk usage on a FGT60C at 98.5%, where to look for disk useage detail

  • March 12, 2014
  • 5 replies
  • 18194 views
Hello, I got an warning that disk space is full and when i look to the System Resources, it does indeed say that Disk Usage is at 98.5% and we have gotten some complaints today that the network was performing poorly. I am trying to understand where and how the disk space is used but haven' t found a good way to do it. I thought it would be logs, but then again logging is not turned on. Firmware : v5.0,build0271 (GA Patch 6) # get log disk setting status : disable # diag sys logdisk usage Total HD usage: 7153MB/7262MB Total HD logging space: 2178MB Total HD logging space for each vdom: 2178MB HD logging space usage for vdom " root" : 0MB/2178MB Any good hints on where further to look for how the disk space is used would be very much appreciated. Thanks, Ants.

    5 replies

    ShrewLWD
    ShrewLWD
    New Member
    March 13, 2014
    Hi AntsA, Could it be WAN optimization caching? show wanopt settings and show wanopt storage
    Dave_Hall
    Dave_Hall
    New Member
    March 13, 2014

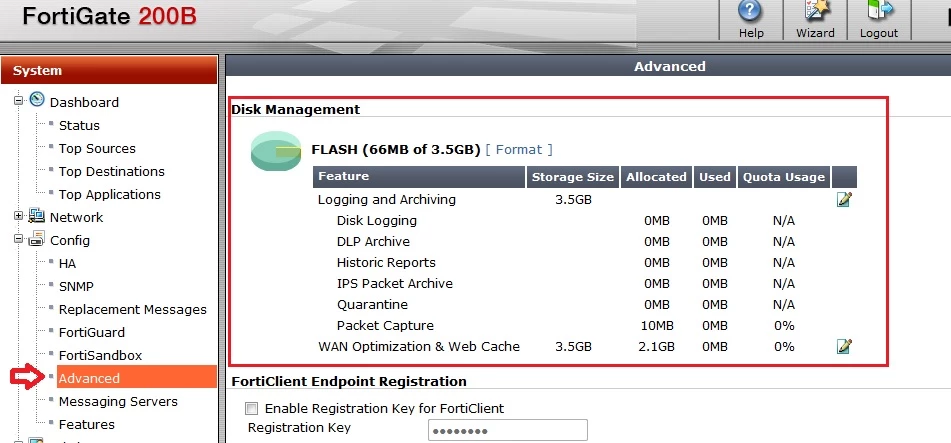

    Check the Disk Management section under System->Config->Advance.
    AntsA
    AntsAAuthor
    New Member
    March 17, 2014

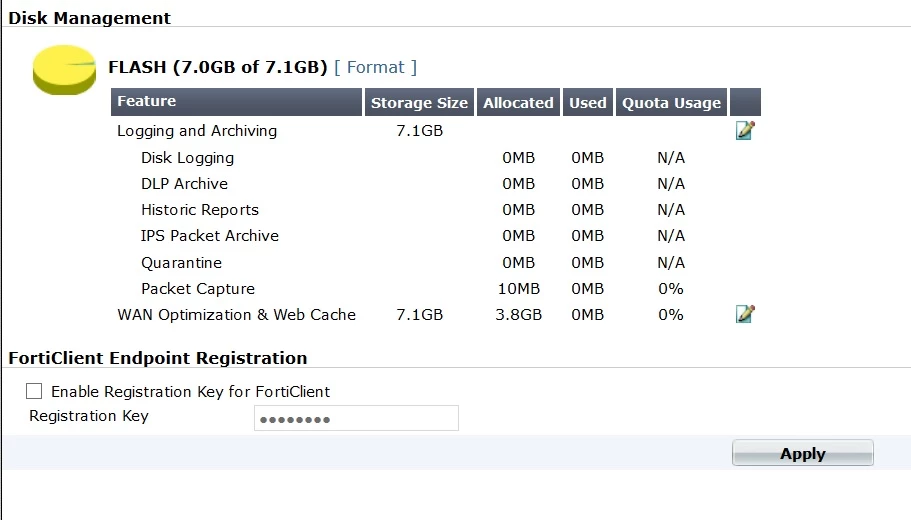

    Hey, thanks for the tips. The advanced section looks like this and it shows me only the size but not where the rest of the disk space is used. # show wanopt settings config wanopt settings set host-id " default-id" end show wanopt storage config wanopt storage edit " FLASH" set size 3900 next end Thanks a lot, Ants.
    AntsA
    AntsAAuthor
    New Member
    March 17, 2014

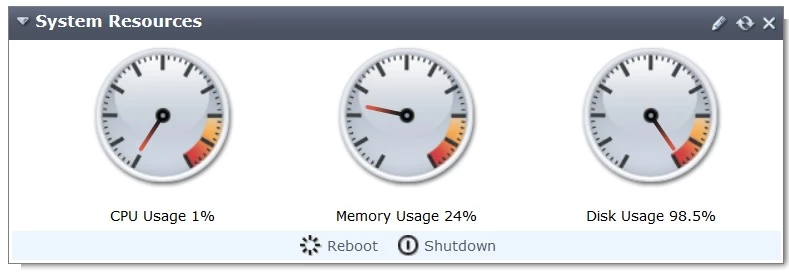

    And this is the 98.5% that kind of worries me of which i' m not able to find a " good" explanation I thought it might have been some temp usage and also tried rebooting. But still same result. Thanks for any further good tips, Ants.
    Dave_Hall
    Dave_Hall
    New Member
    March 17, 2014
    I suggest formatting the disk logging device (the format link next to Flash) then check disk usage; perthaps try allocating more storage to disk logging. (Formating the disk logging device will reboot the fgt device btw.)
