Dialup vpn HUB's phase2 selector only psuhing tunnel ip instead of 0.0.0.0/0

You’re mixing up two different types of IPsec VPNs.
Which is true: you have Dialup/Remote access IPsec VPN with FortiClient, or you have a HQ - Spoke site-to-site dialup IPsec?
If the former, the client side gets only 1 IP allocated and pushed from the FGT. But if the latter, both HQ side and spoke side have to have matching (mirror image) phase2 network selectors like 0/0<->0/0 configured manually to be used for IKE negotiation. It would never be pushed.

Toshi


i have dialup ipsec site to site with mode config enabled
when i turn off mode config bgp neighbourship break

earlier it was 0.0.0.0 after changeing it to .254 i manualy down and up the tunnel but issue still persist

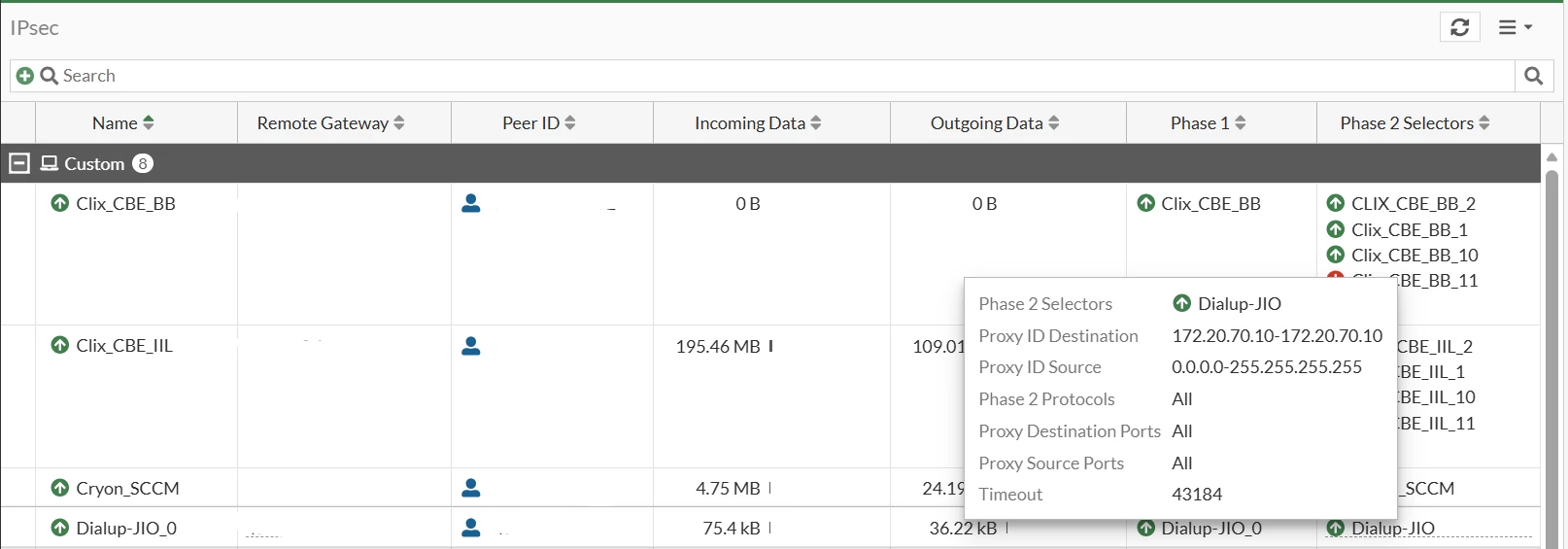

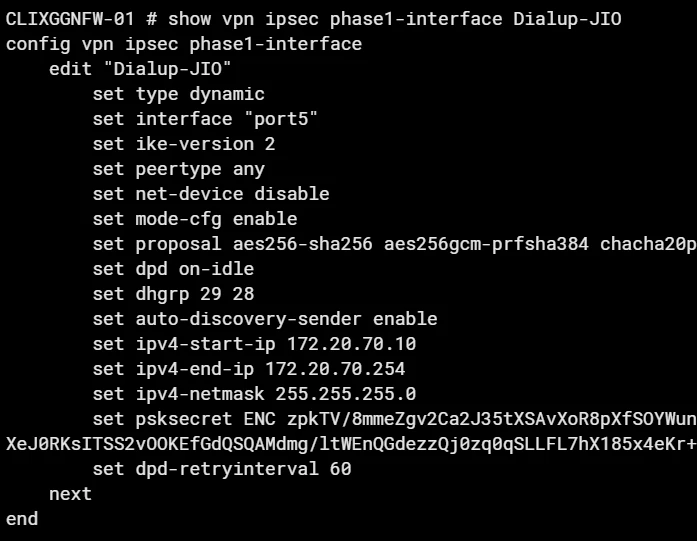

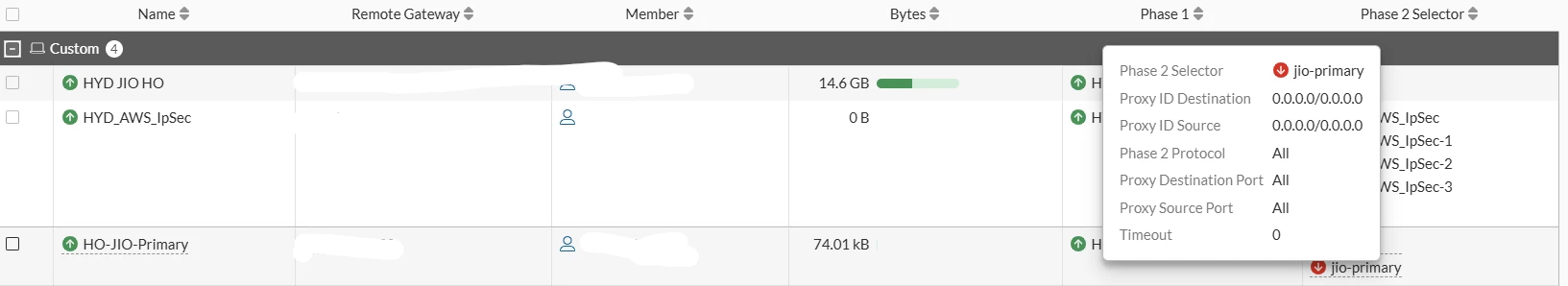

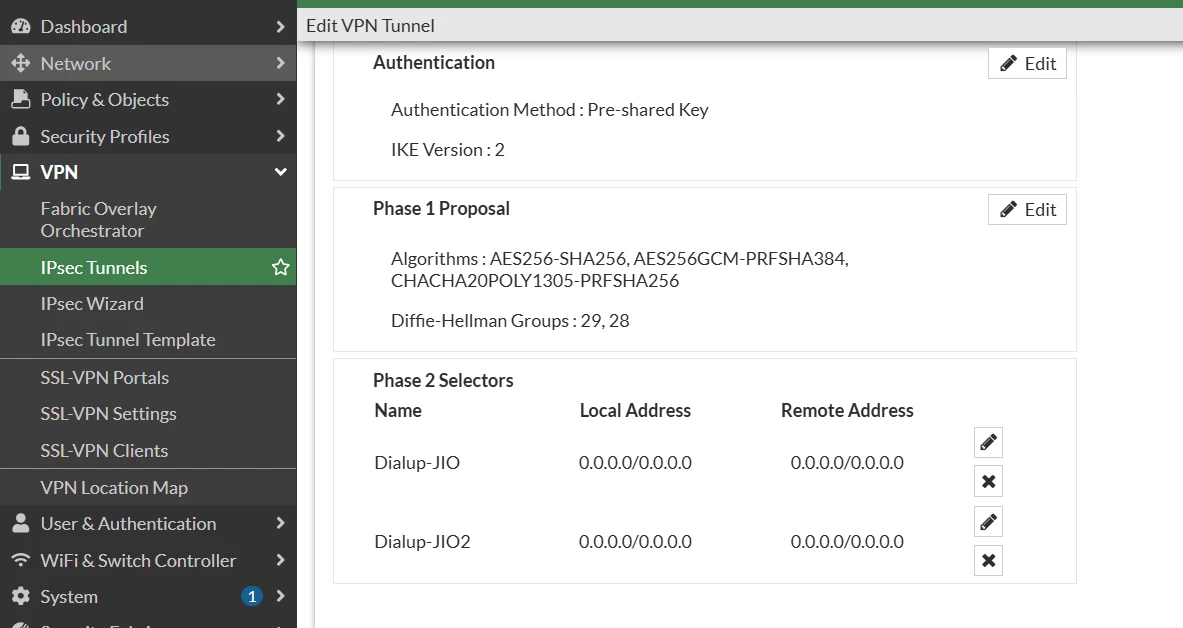

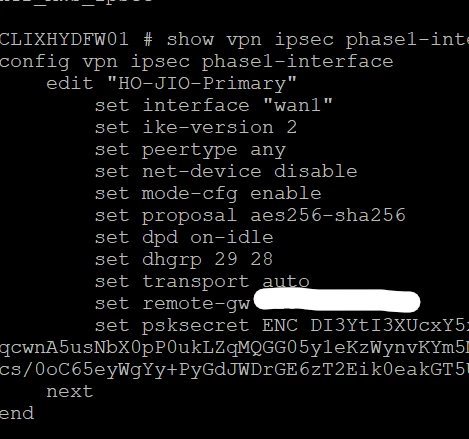

first 2 snap from hub and last 2 from spoke

for understanding

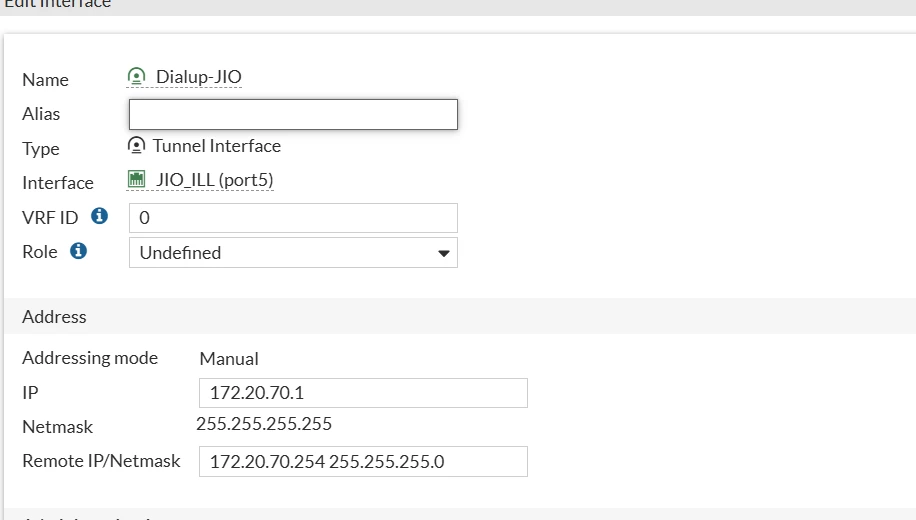

hub end

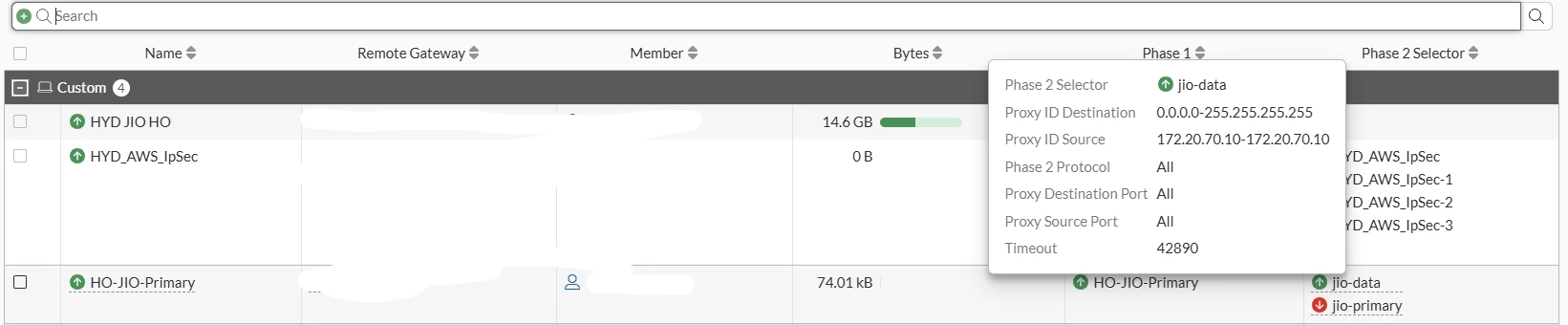

HUB END

I’m going to leave here a Hub and Spoke IPsec w/ ADVPN config that I used at my last project some while ago mentioning the fact that the Hub had dual ISP therefore you would see -ISP1 and -ISP2 in some parts of the config, please adapt it to your needs and see if it resolves your situation

HUB:

config vpn ipsec phase1-interface
edit "Hub-VPN-ISP1"
set type dynamic
set interface <>
set ike-version 2
set peertype any
set net-device disable
set proposal <>
set add-route disable
set dpd on-idle
set dhgrp 14
set auto-discovery-sender enable
set auto-discovery-forwarder enable
set network-overlay enable
set network-id 1
set psksecret <>
set dpd-retryinterval 20
set dpd-retrycount 3
next
end

config vpn ipsec phase2-interface
edit "Hub-VPN-ISP1-p2"
set phase1name "Hub-VPN-ISP1"
set proposal <>
set dhgrp 14
set replay disable
set keepalive enable
next
end

config system interface
edit "Hub-VPN-ISP1"
set vdom "root"
set ip 100.64.100.253 255.255.255.255
set allowaccess ping
set type tunnel
set remote-ip 100.64.100.254 255.255.255.0
next

SPOKE:

config vpn ipsec phase1-interface
edit "to-Hub-ISP1"
set interface wan1
set ike-version 2
set peertype any
set net-device enable
set proposal <>
set add-route disable
set localid "Branch<>"
set dpd on-idle
set dhgrp 14
set auto-discovery-receiver enable
set auto-discovery-shortcuts dependent
set network-overlay enable
set network-id 1
set remote-gw <>
set dpd-retryinterval 20
set dpd-retrycount 3
set idle-timeout enable
set idle-timeoutinterval 5
set psksecret <>
next
end

config vpn ipsec phase2-interface
edit "to-Hub-ISP1-p2"
set phase1name "to-Hub-ISP1"
set proposal <>
set dhgrp 14
set replay disable
set auto-negotiate enable
next
end

config system interface
edit "to-Hub-ISP1"
set vdom "root"
set ip 100.64.100.<> 255.255.255.255
set allowaccess ping
set type tunnel
set remote-ip 100.64.100.253 255.255.255.0
next
end

Hi ​@Lalaram ,

Can you try to disable add-route under phase1 configuration ?


config vpn ipsec phase1-interface
edit Dialup-Jio
set add-route disable​​​​​​​
​​​​​​​end

If you have found a solution, please like and mark it as solved to make it easily accessible for everyone.

Thanks,
​​​​​​​Mayur Padma

when i diable the add route bgp neighbourship went down
