DHCP and LTE on 30e

Forum|Forum|4 years ago
April 29, 2022
2 replies
2747 views

Dear Fortinet Community!

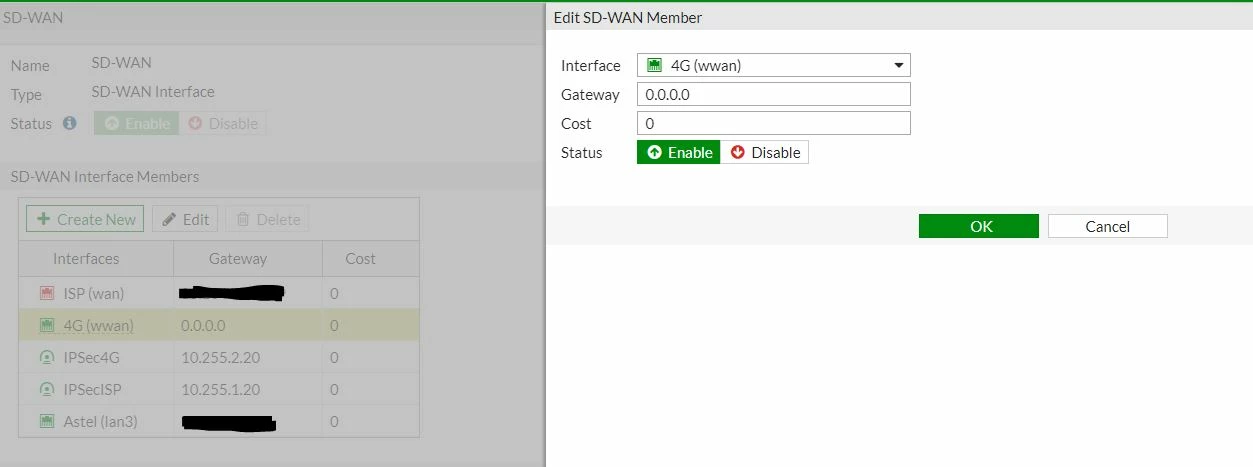

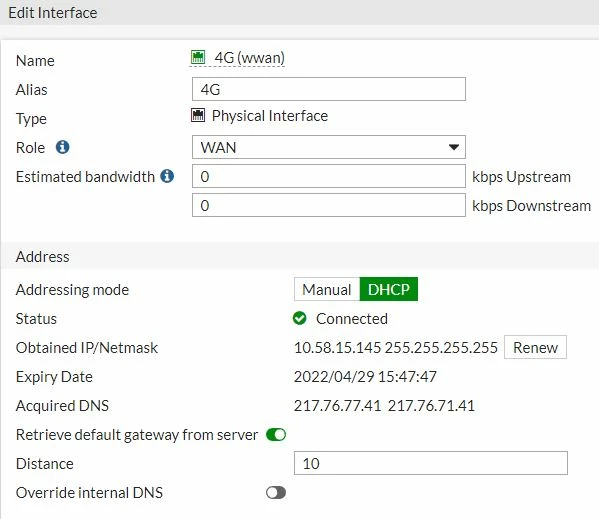

FWF30E-3G4G (6.2.10) is using onboard LTE modem with SDWAN. It works only with direct routes, and doesn't work with static route sdwan--> 0.0.0.0. LTE gets dhcp address with /32 mask - so there is no any gateway... If I downgrade it to 6.2.9 - everything is fine, LTE gets /30 address with normal gateway. Asking here to see if anybody recently had this issue. Thanks!

FortiGate

Best answer by AlexC-FTNT

Nevermind, found the bug 745856;

Resolved In 7.0.6, 7.2.0. Waiting for a fix in 6.4.10.

No fix in 6.2.10 (out of Eng. Support).

Staff

Check first if the gateway is received by LTE and if the route is added to routing table:

#diagnose sys lte-modem data-session-info

#get router info routing-table database

AlexC-FTNTAnswer

Staff

Nevermind, found the bug 745856;

Resolved In 7.0.6, 7.2.0. Waiting for a fix in 6.4.10.

No fix in 6.2.10 (out of Eng. Support).

Maxim_VanichkinAuthor

Visitor III

Alex! Thank you very much! Workaround is to add RANDOM hahaha gateway to wwan and priority at 100. ))) Awesome
