Question

Default route to GCP Site-to-Site IPsec VPN Tunnel failed

  • October 5, 2021
  • 1 reply
  • 1849 views

Hi, guys,



I am using Fortigate 60E with FortiOS v7.0.1, and a Site-to-Site IPsec VPN tunnel is formed with GCP Gateway;



My idea:

1. I want some LAN users to access internet through GCP network ( a host with GCP subnet, as the LAN gateway

    (10.192.10.254/32);

2. The specified LAN subnet (10.10.1.0/24) has default route (configured in Fortigate 60E) is pointed to GCP network ( host with GCP

3.  The policy route in Fortigate 60E :

     10.10.1.0/24 (source) --> 0.0.0.0/0 ---> 10.192.10.254 (next hop) ---> Internet

4.  Security Policy is set to allow all to GCP.

5.  10.192.10.254 is a host in GCP, and network traffic NATed and forwarded to internet has been configured and worked.









Problems found as below :



id=20085 trace_id=5619 func=ipsecdev_hard_start_xmit line=634 msg="enter IPSec interface Remote-GCP-VPN" id=20085 trace_id=5619 func=_do_ipsecdev_hard_start_xmit line=238 msg="output to IPSec tunnel Remote-GCP-VPN" id=20085 trace_id=5619 func=ipsec_common_output4 line=870 msg="No matching IPsec selector, drop"





GCP issue ? please advice and recommendation ?





1 reply

abarushka
Staff
Staff
April 19, 2022

Hello,

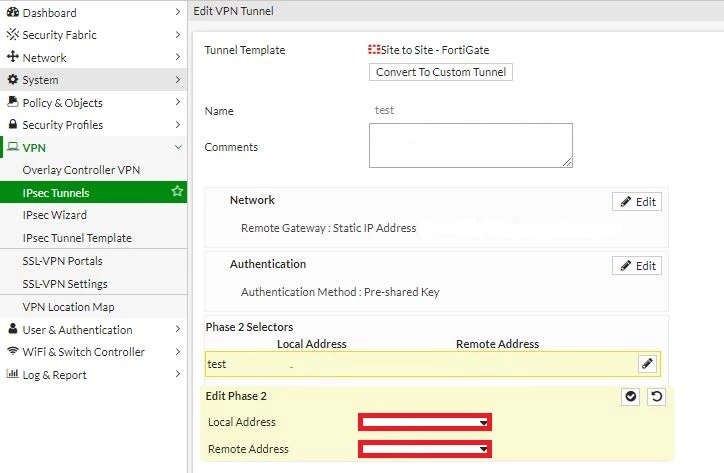

Log message indicates that traffic is not matching IP selectors configured on FortiGate side. Please make sure that correct IP selectors configured under IPsec phase 2 selectors. Please find an attached file.phase2.JPG
