Deep SSL Inspection + WAF for Internal Server via DNAT - Not Working

Forum|Forum|6 months ago
November 27, 2025
1 reply
416 views

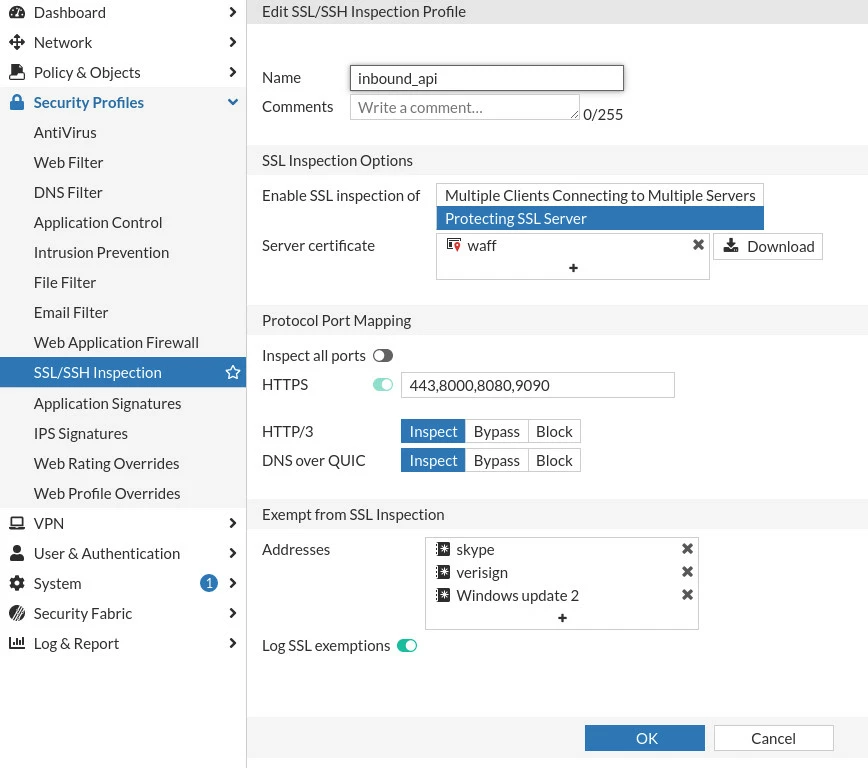

ssl profile.jpg Hi all,

Need help with FortiGate 7.4 SSL inspection setup:

Setup:

Internal API: 10.10.10.99:8000 (HTTPS)

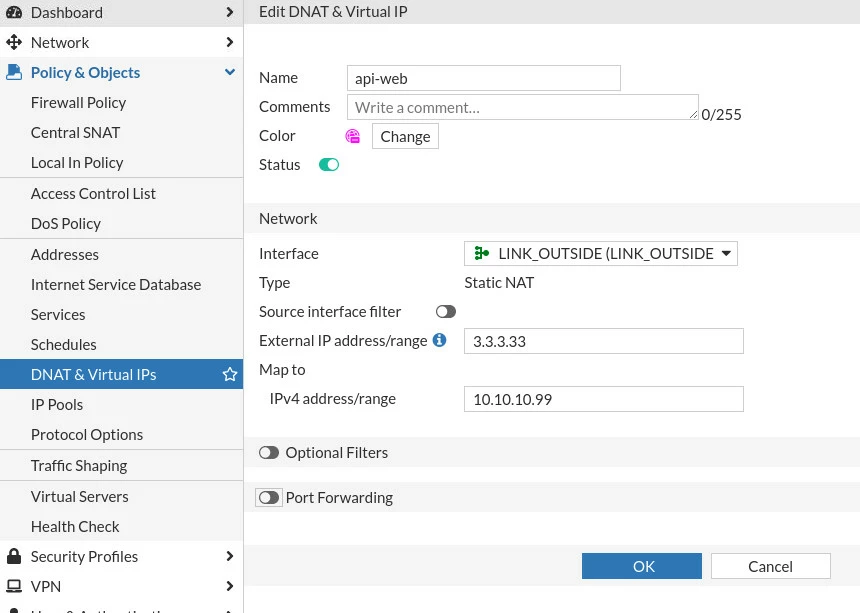

External access: 3.3.3.33:8000 → DNAT to internal
Corporate CA certificates imported to FortiGate
SSL/SSH profile: "Protecting SSL Server" mode
WAF profile: Monitor mode

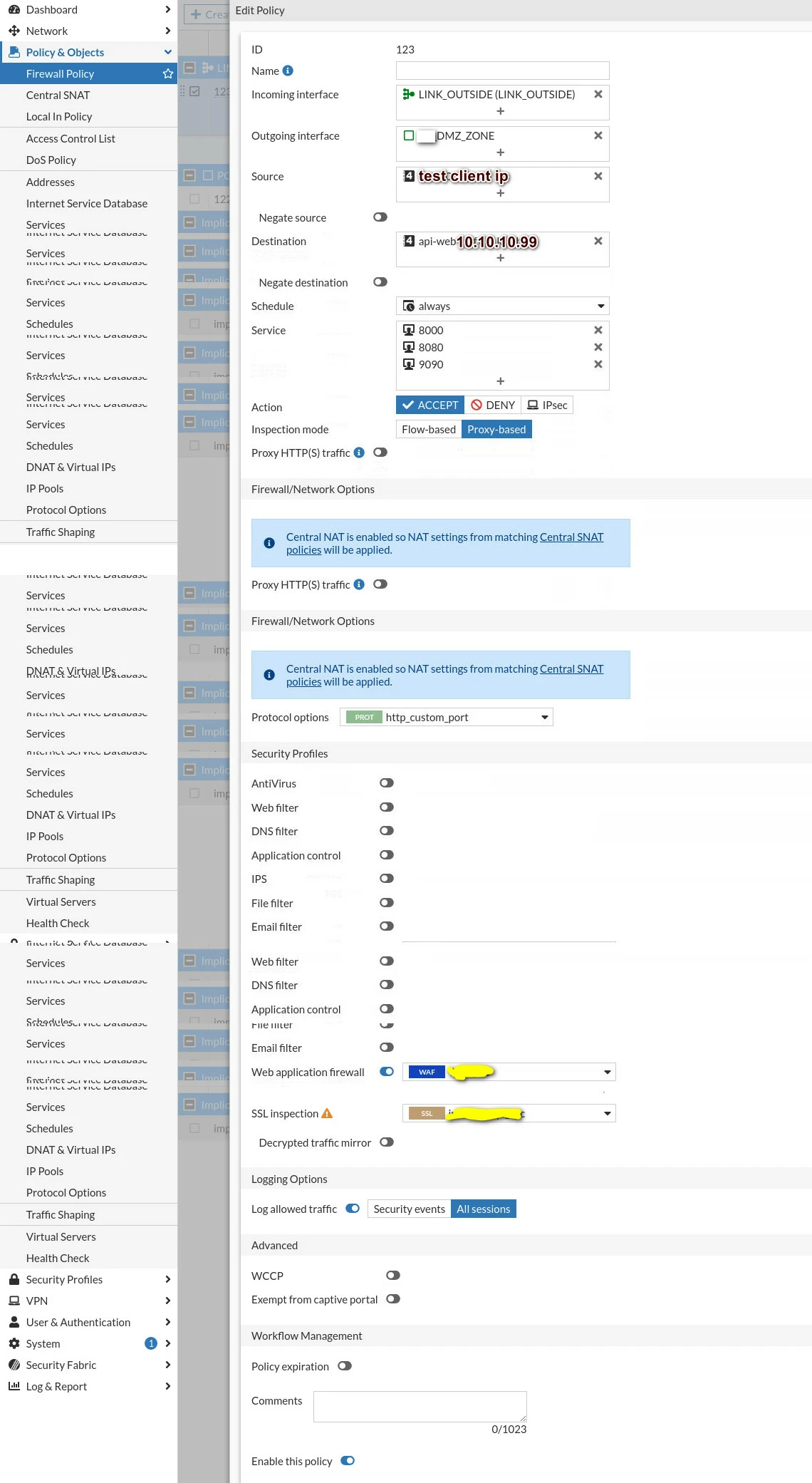

Policy: Proxy inspection mode with SSL + WAF profiles

Issue: Traffic passes through but SSL inspection doesn't work - no SSL logs, WAF not inspecting content.

Has anyone configured "Protecting SSL Server" for inbound API traffic? What's the correct architecture?

Thanks!

SSL SSH inspection

AEK

SuperUser

Hi Terasto

I'm not aware that FGT's WAF can protect API server. I'm actually pretty certain it doesn't.

You need a dedicated WAF that does API protection, like FortiWeb.

AEK

terastoAuthor

Explorer

Hi AEK!
Okay, let's say I don't need to protect the API service, but I need to use the built-in WAF functionality on the firewall specifically in the scheme (Protecting SSL Server) that I described earlier. I'm wondering, should I enable IPS? It seems like it has some basic attack scenarios for web services that it can block.

AEK

SuperUser

Hi Terasto

Here are the recommended steps.

https://community.fortinet.com/t5/FortiGate/Technical-Tip-Recommended-configuration-for-HTTPS-Virtual-Server/ta-p/225289

AEK
