Current Bandwith Monitor

Hello,

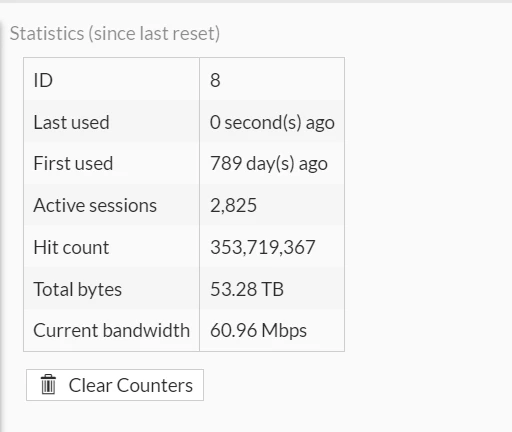

For each firewall rule we can see the Current Bandwidth like pic below.

Is the current bandwidth can be monitored by SNMP manager? What OID for getting this value?






5 replies

dbhavsar
Staff
Staff
Jul 29, 2024 11:59 AM UTC

Hello @HS08 ,



Below oids can be used

IF-MIB:interfaces.ifTable.ifEntry.ifInOctets          - 1.3.6.1.2.1.2.2.1.10

IF-MIB:interfaces.ifTable.ifEntry.ifOutOctets        -1.3.6.1.2.1.2.2.1.16

you can still download MIB file and verify this OIDs

HS08
HS08Author
Valued Contributor
Jul 30, 2024 3:49 AM UTC

HI,  This is oid for interface utilization and not per rules.

AEK
SuperUser
SuperUser
Jul 29, 2024 1:14 PM UTC

Hi

In addition to dbhavsar suggestion, as per my knowledge this info is only available per interface, not per firewall rule.

AEK
HS08
HS08Author
Valued Contributor
Jul 30, 2024 3:50 AM UTC

correct, what i want is per fw rule

ebilcari
Staff
Staff
Aug 7, 2024 1:44 PM UTC

It seems that the SNMP OID currently support these counters [.1.3.6.1.4.1.12356.101.5.1.2.1.1]:

  • fgFwPolPktCount
  • fgFwPolByteCount
  • fgFwPolLastUsed
  • fgFwPolPktCountHc
  • fgFwPolByteCountHc



The nearest value you can use is OID: .1.3.6.1.4.1.12356.101.5.1.2.1.1.6.1[.10]
Value: 189386274

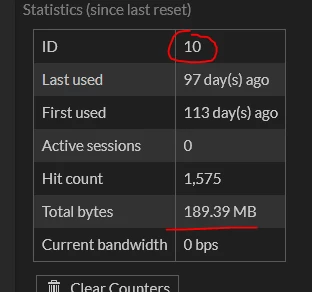

total bytes.PNG

Maybe you can use it in a script in your monitoring system to convert the difference of the total traffic in time and generate an approximate value of bandwidth used during that time.

Emirjon
