Question

Conserve Mode, FGT-60F & FortiOS 7.4

Forum|Forum|1 year ago
July 18, 2024
16 replies
35623 views

Hi,

Anyone out there using FortiOS v7.4.4,build2662 on the FortiGate-60F? How is your RAM usage?

I've installed v7.4.4,build2662 a couple of weeks ago, and the device was entering conserve mode every few days or so. Usual RAM utilization was around 75%, right after boot, so no wonder it was pushing it into conserve mode.

I've since downgraded to 7.2 (now usual RAM usage i 60-65%) but with this version we're having other issues which I would love to resolve (long connection times, need to refresh a web page a few times to open it etc...).

Here is the info I got during the last conserve mode:

firewall01 get system status

Version: FortiGate-60F v7.4.4,build2662,240514 (GA.F)

First GA patch build date: 230509

Security Level: 2

Firmware Signature: certified

Virus-DB: 92.05717(2024-07-10 07:26)

Extended DB: 92.05717(2024-07-10 07:25)

AV AI/ML Model: 2.17065(2024-07-10 07:45)

IPS-DB: 28.00824(2024-07-10 00:15)

IPS-ETDB: 0.00000(2001-01-01 00:00)

APP-DB: 28.00823(2024-07-08 23:57)

FMWP-DB: 24.00070(2024-07-05 17:45)

IPS Malicious URL Database: 5.00107(2024-07-10 08:52)

IoT-Detect: 28.00824(2024-07-09 17:07)

OT-Detect-DB: 28.00824(2024-07-09 17:07)

OT-Patch-DB: 28.00824(2024-07-09 17:11)

OT-Threat-DB: 28.00823(2024-07-08 23:57)

IPS-Engine: 7.00539(2024-05-09 00:27)

Serial-Number: FGT60F*********

BIOS version: 05000030

System Part-Number: P24286-07

Log hard disk: Not available

Hostname: firewall01

Private Encryption: Disable

Operation Mode: NAT

Current virtual domain: root

Max number of virtual domains: 10

Virtual domains status: 1 in NAT mode, 0 in TP mode

Virtual domain configuration: disable

FIPS-CC mode: disable

Current HA mode: standalone

Branch point: 2662

Release Version Information: GA

System time: Wed Jul 10 18:32:42 2024

Last reboot reason: warm reboot

firewall01 diag sys top

[H[JRun Time: 0 days, 22 hours and 34 minutes

12U, 0N, 0S, 85I, 3WA, 0HI, 0SI, 0ST; 1917T, 301F

ipshelper 186 R < 99.9 9.0 6

quard 208 S 2.9 0.8 4

snmpd 197 S 0.4 0.6 0

node 169 S 0.0 4.1 6

ipsengine 346 S < 0.0 3.3 5

ipsengine 347 D < 0.0 3.3 7

ipsengine 348 S < 0.0 3.1 6

wad 298 S 0.0 2.6 2

forticron 174 S 0.0 2.3 2

wad 300 S 0.0 2.1 6

cmdbsvr 132 S 0.0 2.1 0

miglogd 183 S 0.0 2.0 0

cw_acd 221 S 0.0 1.8 1

forticron 3677 S 0.0 1.6 2

wad 190 S 0.0 1.5 5

forticron 3678 R 0.0 1.5 3

forticron 3676 S 0.0 1.5 4

sslvpnd 187 S 0.0 1.4 3

csfd 228 S 0.0 1.3 5

scanunitd 3645 S < 0.0 1.2 2

[H[JRun Time: 0 days, 22 hours and 34 minutes

2U, 0N, 1S, 73I, 24WA, 0HI, 0SI, 0ST; 1917T, 304F

ipshelper 186 D < 11.7 7.0 1

iked 192 S 2.9 0.9 4

ipsengine 348 S < 1.9 3.7 6

ipsengine 346 S < 1.3 3.8 5

ipsengine 347 S < 1.3 3.8 7

miglogd 306 S 0.3 1.3 0

urlfilter 290 S < 0.3 0.8 1

radvd 213 S 0.3 0.6 2

forticron 3678 R 0.1 1.5 3

sslvpnd 235 S 0.1 1.1 3

sslvpnd 236 S 0.1 1.1 1

authd 176 S 0.1 0.7 1

syslogd 194 S 0.1 0.7 1

dnsproxy 215 S 0.1 0.5 1

acd 200 S 0.1 0.4 7

merged_daemons 172 S 0.1 0.4 2

node 169 S 0.0 4.1 6

wad 298 S 0.0 2.6 2

forticron 174 S 0.0 2.3 2

wad 300 S 0.0 2.1 2

[H[JRun Time: 0 days, 22 hours and 34 minutes

10U, 0N, 0S, 87I, 3WA, 0HI, 0SI, 0ST; 1917T, 316F

ipshelper 186 R < 83.1 7.4 1

forticron 174 S 0.7 2.3 3

ipsengine 346 S < 0.5 3.9 5

ipsengine 347 S < 0.5 3.8 7

ipsengine 348 S < 0.1 3.8 6

cw_acd 221 S 0.1 1.8 0

sslvpnd 238 S 0.1 1.1 7

node 169 S 0.0 4.1 6

wad 298 S 0.0 2.6 2

wad 300 S 0.0 2.1 0

cmdbsvr 132 S 0.0 2.1 0

miglogd 183 S 0.0 2.1 5

forticron 3677 S 0.0 1.6 2

wad 190 S 0.0 1.5 6

forticron 3678 R 0.0 1.5 3

forticron 3676 S 0.0 1.5 4

sslvpnd 187 S 0.0 1.4 5

miglogd 306 S 0.0 1.3 2

csfd 228 S 0.0 1.3 5

scanunitd 3645 S < 0.0 1.2 2

[H[JRun Time: 0 days, 22 hours and 34 minutes

11U, 0N, 0S, 86I, 3WA, 0HI, 0SI, 0ST; 1917T, 330F

ipshelper 186 R < 94.8 7.4 2

ipsengine 348 D < 1.1 3.9 6

cw_acd 221 S 0.1 1.8 3

forticron 3678 R 0.1 1.5 3

sslvpnd 235 S 0.1 1.1 4

snmpd 197 S 0.1 0.6 3

node 169 S 0.0 4.1 7

ipsengine 346 S < 0.0 3.9 5

ipsengine 347 S < 0.0 3.8 7

wad 298 S 0.0 2.6 5

forticron 174 S 0.0 2.3 3

wad 300 S 0.0 2.1 5

miglogd 183 S 0.0 2.1 0

cmdbsvr 132 S 0.0 2.1 0

forticron 3677 S 0.0 1.6 2

wad 190 S 0.0 1.5 6

forticron 3676 S 0.0 1.5 4

sslvpnd 187 S 0.0 1.4 5

miglogd 306 S 0.0 1.3 3

csfd 228 S 0.0 1.3 6

FortiGate

dbhavsar

Staff

Good day @NotMine ,

- There could be several processes that causes the device to enter the conserve mode, but since the FortiGate is rebooted there should be nothing much in the logs as well. But you can create this automation stitch: https://community.fortinet.com/t5/FortiGate/Troubleshooting-Tip-How-to-do-initial-troubleshooting-of-high/ta-p/194874 that triggers when the device enters the conserve mode. Or you can open up the TAC case to further investigate based on the logs collected from above stitch.

NotMineAuthor

Explorer III

Hello, thank You for answering. Well, there is the crashlog with several 'conserve mode' messages in it, and we are also saving the logs on the FortiAnalyzer.

My guess/fear is that FOS 7.4 is simply 'too much' for these entry level devices, that is why I asked if anyone else is using it.

TheMan

New Member

Any updates?

duster

New Member

Good afternoon, I have three FortiGate-60f and the same thing is happening to me with version 7.4.4 and 7.6.

NotMineAuthor

Explorer III

OK, so, considering that Fortinet is removing a lot of "proxy" features from entry-level FortiGate devices in versions 7.4.4 and 7.6 - "as part of improvements to enhance performance and optimize memory usage on FortiGate models with 2 GB RAM or less", I assume they are very much aware of this problem. They just refuse to acknowledge it here, or anywhere else apparently.

Since we were experiencing "slow Internet" with version 7.2 on FGT-60F, I had to upgrade to 7.4.4. Now our "Internet" is very good, until the device enters the conserve mode and bugs out. Last night I had to drive to the office and manually restart it in order to get it back online. So I'll open a ticket and stay on it until they provide a viable solution for this problem.

dbhavsar

Staff

Hello @NotMine ,

Can you check this one: https://community.fortinet.com/t5/FortiGate/Troubleshooting-Tip-How-to-optimize-memory-usage-specifically/ta-p/304981 this addresses the low-end device issue and you can set those settings on your device and monitor it if it enters the conserve mode again or not.

amuda

Staff

Hi @NotMine

Try this: https://community.fortinet.com/t5/FortiGate/Technical-Tip-IPS-memory-optimization-steps/ta-p/197486

NotMineAuthor

Explorer III

Thank you @dbhavsar and @amuda.

Yesterday I've implemented some of the changes recommended in KB @dbhavsar recommended and the device did NOT enter the conserve mode last night. Prior to the config changes, it would enter the conserve mode at least once a day, usually late afternoon. So, hopefully, these config changes helped.

I'll update the topic in the next few days with the result and exact config changes I've implemented.

Cheers!

NotMineAuthor

Explorer III

Unfortunately, after working fine for several days with the "optimize memory" configuration changes suggested here, the device went full retard. It simply stopped working and it would not boot after the restart. I had to format the boot device, reinstall the firmware from scratch and restore the configuration.

Now it goes to conserve mode every few days or so and I have to drive to the office and cold restart it. I did upgrade to 7.4.5 as soon as it was available.

This morning I've turned off as much of UTP scanning (AV especially) and logging in polices as I could, and I've also implemented some of the "memory optimization" tweaks. Hopefully, it will help.

Here are the config changes I've implemented (just for future reference):

config ips global
set engine-count 2

set socket-size 48
end

config log memory setting
set status disable
end

config system session-ttl
set default 600
end

config system dns
set dns-cache-limit 300
end

NotMineAuthor

Explorer III

After implementing the above changes, device is still entering conserve mode. Furthermore, two of the ports, connected to two separate network devices, are behaving strangely (flapping). HQIP passed, no hardware fault found. So i have a ticket opened, hoping for resolution.

pochtakazah

New Member

@NotMine Dude, just schedule killing of high-memory-consuming processes, idk for example every 3 hours... Here mine CLI script (FGT-60F):

fnsysctl killall wad
fnsysctl killall miglogd
fnsysctl killall ipsengine

without that FGT-60F (7.4.3) enters conserve mode every single day at same time (period 24 hours).

now it floats from 55% to 65% and again to 55% every 3 hours (with tweaks may be even lower).

also you can create automation to reboot FGT when it enters conserve mode (to not driving to reboot it manualy).

NSE 5

NotMineAuthor

Explorer III

Thanks, If it comes to that, I'll try your method. But I really think that we should not be forced to 'hack' the device this way.

Anyway, tech support initiated RMA of the device. Hopefully, it will solve at least some problems. But most likely, we'll upgrade to 70F, as I understand it has 4GB of RAM.

EME

Explorer III

Hello, I have a Fortigate 60F @Home. I upgraded it to 7.4.5 last Sunday (a maintenance window is rare at my house). My principle is to wait for patch .4 before upgrading to a new level. I was hoping I would be safe with 7.4.5.
But now my Fortigate enters “Kernel enters memory conserve mode” every day.
Once I had to reboot and twice it came out on its own.

I agree with @NotMine, that this Fortinet should fix this as it is clearly a bug. Changing the configuration, especially by disabling or limiting IPS scanning, is not an option for a Firewall.
By the way, this would certainly not be the first time either. I have also experienced it with FTG 1200Ds. Turned out to be a bug in the IPS engine after a very long case.

jblyon

New Member

We're seeing the same thing happen on our 60Fs running 7.4.5. It enters conserve mode and then extreme low memory mode a few seconds later. This is immediately after a Fortiguard update occurs and the unit needs to reload the AV database. The unit will drop all connections until it is either rebooted or about 20 minutes pass. If you let the 20 minutes pass memory use drops right back down to the 66% that it's normally always at. There's no sign of any other memory leaks, it's sudden after an AV database reload following an update.

We have a ticket open, but Fortinet has not responded to it yet. In the meantime we've scheduled updates to occur outside business hours where it doesn't matter if a branch office drops offline for 20 minutes afterward. This has kept the units from dropping off during business hours.

Edit: Support replied trying to blame the fact that the unit was already at 66% memory use before the update process. I asked them to explain how an increase of at least 29% on 7.4.5 could be considered normal when on 7.2 and 6.4 memory use increases by only 1-2% during Fortiguard updates...

EME

Explorer III

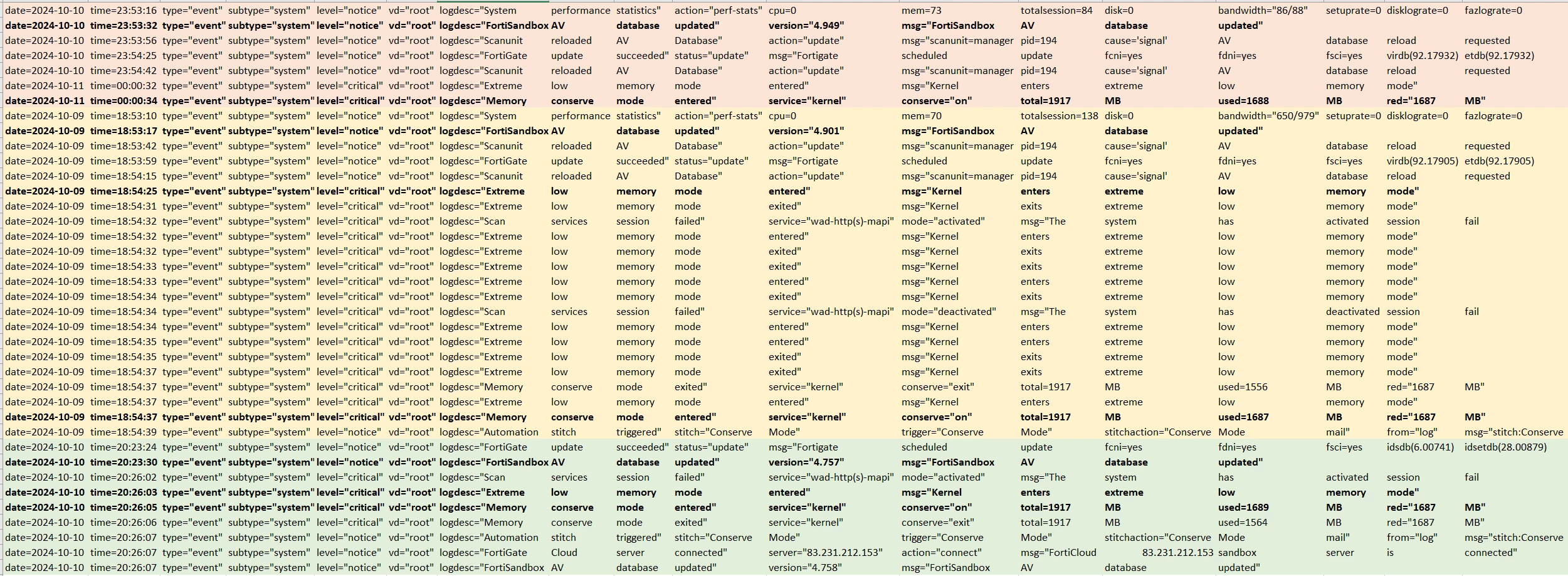

Yes I can confirm. After a “FortiSandbox AV database updated” I get “Low Memory” and “conserve mode” messages. I have listed 3 of them:

AV Update Conserve Mode.png

NotMineAuthor

Explorer III

Kudos to both of you, @jblyon and @EME, for narrowing down the potential cause!

We've replaced the unit in RMA, but the device is still entering the conserve mode.

I can substantiate your finding that FortiGuard update is causing this, because our device stopped responding yesterday around 1:30 PM, with FortiGuard updates scheduled daily at 1 PM. It was completely unresponsive, even thru the console connection.

Strangely enough, nothing in the crashlog about the conserve mode.

EME

Explorer III

I just registered a case with Fortinet :)

swissroot

New Member

I have exactly the same. Also done all tweaks mentioned by fortinet except the "killing" tasks and still get the conserve mode exactly at the time of the fortiguard update.

I upgraded this morning after the next down (this time even serial was not accessible) to 7.6 even this is feature and .0 release... read on some redit from a guy which has the same issues after that it was "more stable" :) also opened a ticket with forti.

Let's see if the community get the solution before the vendor... ;)

NotMineAuthor

Explorer III

Great to have someone brave enough to try 7.6, @swissroot! :) Looking forward to see if it will resolve the issue. Although for us it is not a viable solution because we need SSL VPN (for IOS devices), which is discontinued for low-end devices in 7.6+.

swissroot

New Member

The "brave" journey stopped hard over the weekend... First it was looking good until the update of the FortiGuard and then one CPU spiked to 100% and stayed there. After that randomly it gave no connection or extremely slow responses for surfing. The WebGui was still accessible without any issues and no special things are logged. The other day it was that bad with the random responses that I had to reboot it. This solved the CPU spike after 15min delay of the reboot... updating a IDS/AV???? But then it started again after about 3-4h uptime to get random delay's in surfing or streaming. Sometimes no delay sometimes even to the point of not reachable.

I was watching a movie on Sunday and this was doing it right in the middle again. I then decided to go the short way even with the knowledge of loosing something but being up hopefully in short time again and downgraded it to 7.2.10. This release is actually working fine on my 61F so I gave it a try. The downgrade took some time but since then (klapp on wood) it's stable on the 60F. I think I would doo a factory reset and fresh config on the 7.2.x train.

Hard to see that Fortinet is rolling out such bad releases more and more and in the same time removing functions which where working on the 7.0 and 7.2 without any bigger issues on the "low-end" models if you stay in the spec's of small business amount of users.

Also as mentioned below why not put 2 or 4 gb extra of ram in it this will not make the whole unit much more expensive in terms of manufacturing, except the are buying the memory from apple...;-)

will post an update when I made the fresh config to get rid of the downgrade mess if it's stable now.
