Explorer II
August 4, 2022
Question

Connect Router to internal elk server

  • August 4, 2022
  • 2 replies
  • 3376 views

Can you advice me ?

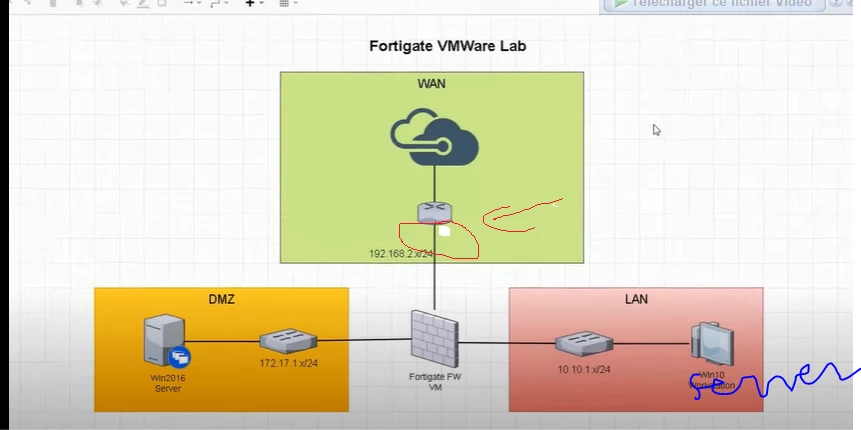

how to let the router access to the server i will send the logs of the router to the elastic server what i do in fortigate ? what i will configure in fortigate 294766800_562538495424875_9082956238751245529_n (1).png

2 replies

akristof
Staff
akristof
Staff
August 4, 2022

Hi,

If you are managing the router and if you have correct routing from router to your internal server, you just need firewall policy to allow traffic from ext_interface to int_interface. If router doesn't have routing info about your server, then VIP on FortiGate, external IP will be IP from 192.168.2.0/24 (probably IP of FortiGate's external interface) and forward it to internal IP of the server.

https://community.fortinet.com/t5/FortiGate/Technical-Tip-Virtual-IP-VIP-port-forwarding-configuration/ta-p/198143

Firasbg
FirasbgAuthor
Explorer II
August 4, 2022

@akrist how can i delete a VIP config by cli because i do an error VIP and i can't now access to fortigate via gui



akristof
Staff
akristof
Staff
August 4, 2022

Hi,

Connect to different interface (probably from different PC) or via console.

RonaldMccormick
RonaldMccormick
New Member
January 16, 2023

Hey there! Connecting a router to an internal Elastic server can be a bit tricky. To allow your router to access the server, you'll need to configure it to send its logs to the Elastic server. In terms of your Fortigate, you'll want to make sure you have the proper ports open and possibly set up a static IP for the server. If you need more specific guidance, feel free to check out this link https://routeripnet.com/ip/192-168-8-1/ for more information. Let me know if you have any other questions.
