Configuring FW Policy with NAT in an internet VDOM setup

Forum|Forum|1 year ago
November 11, 2024
8 replies
2333 views

hi,

i plan to configure SNAT in a FG with multiple VDOMs.

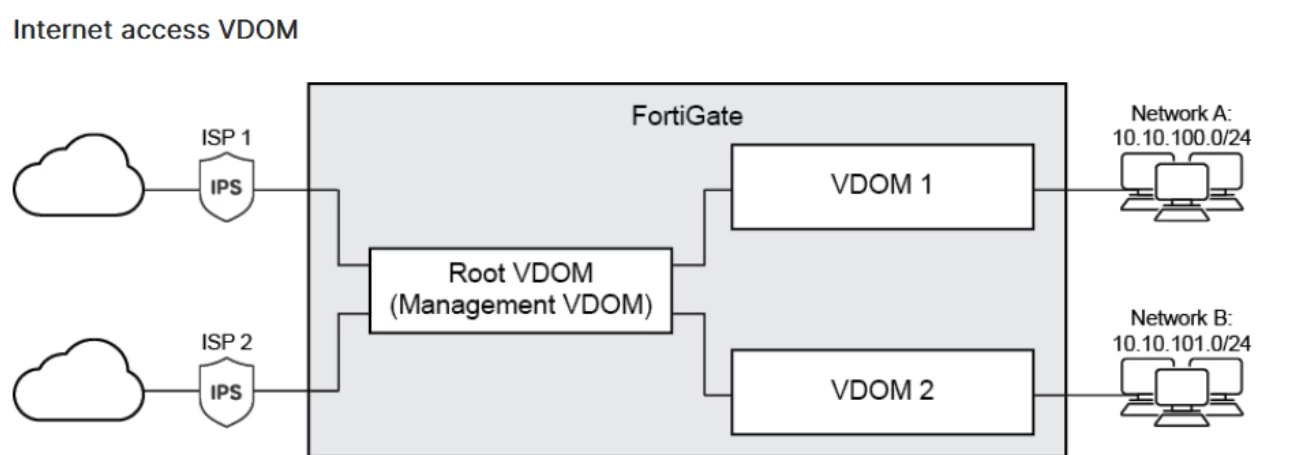

i currently have the "internet VDOM" topology wherein "internet" VDOM act as our internet edge device and all downstream VDOMs will connect/flow through it to go to the public internet.

my question, if i create a FW policy WITH SNAT in "VDOM-1", do i also create FW policy WITHOUT NAT in "internet VDOM" for traffic flow continuity?

FortiGate

Best answer by Toshi_Esumi

Yes. If that VDOM customer/users need to use just one NAT outside/public IP, that's all you need. However, you have to assign at least /31 public subnet to the npu-vlink interface and each side (root and customer vdom side) takes one IP out of the /31.

Toshi

funkylicious

SuperUser

Hi,

Usually, in VDOM1/2 where the internet links are not directly connected, you would not need to activate NAT.

Assuming you have the correct routes back to VDOM1/2 in the Internet VDOM to the networks, you would only need to activate NAT in that VDOM where the traffic exists to reach the internet, Internet VDOM.

"jack of all trades, master of none"

johnlloyd_13Author

Explorer III

hi,

so i just need to provision FW policy with NAT in the "internet" VDOM only?

then just routing and FW policy in "VDOM-1"?
would i need 2 FW policy, i.e. first FW policy is the vlink (to internet VDOM) to "inside" interface of VDOM-1, second FW policy is the reverse, i.e. "inside" interface of VDOM-1 to vlink?

funkylicious

SuperUser

You would need a firewall policy in VDOM1, from LAN to vdom-link, allowing the traffic, no NAT.

In INT ( Internet ) VDOM, a firewall policy from vdom-link towards the WAN interface with NAT active.

Since FortiGate it's a stateful firewall, you would not need firewall rules in reverse created.

TLDR;

VDOM1: LAN > vdom-link ( accept, no NAT )

INTERNET: vdom-link > WAN ( accept , NAT )

"jack of all trades, master of none"

johnlloyd_13Author

Explorer III

hi,

thanks for your answers! appreciate them.

another question, can i do NAT in "VDOM-1" since it has a private (inside) interface/IP and public (outside) vlink interface/IP?

the "internet" VDOM has vlinks (using public IP) in downstream VDOMs (i.e. VDOM-1, VDOM-2, etc), outside interface using public IP and configured with iBGP with our internet edge router?

what will be the FW policy and NAT would look like in this scenario?

joninte2

New Member
