Configuring a Fortigate 60E for new ISP?

  • October 24, 2022
  • 4 replies
  • 10172 views

I am a volunteer at a local tennis club that has a rather complicated rack system with a fortigate 60e. The system has several VLANS for the security cameras, guest wifi, etc. I have been tasked with switching everything from Verizon fiber to Spectrum fiber. The spectrum fiber has already been installed and I tested it with a laptop by manually entering the ip range, gateway etc and it works. Now I want to plug it into the fortigate 60e and unplug the Verizon.. To make things more complex, there is also a secondary backup ISP from Spectrum cable. That we also want to get rid of.



I have experience with home routers but the fortigate 60e settings are rather complex. Is there a paid support we can buy that can walk me through everything I need to change? We tried contacting the original company who set it all up but they said they are too busy. Or should I just post screenshots of what I think I should do and go from there?

Best answer by distillednetwork

Yes, x.x.x.144/29 would be the network address (identifies the network) and can not be used as a host address.  The available host addresses in that range are x.x.x.145-150.  They should have given you one of those addresses as the gateway and you should be able to pick from the others for what address you want to put on your firewall.  You could also use one of the other addresses for your VIP ie.if .150 is the gateway address you could use  .145 on the firewall and .146 on the VIP.

4 replies

AntonyChen
AntonyChen
Explorer II
October 24, 2022

so why this is so hard to you, just simple unplug old cable and replace it with new one, then enter new network information the isp provided, i think you have the admin right on the device? If you want  old line to be backup line, just enable SD-WAN feature on your router with wan members are old port and new port, this case you plug new line to new port on router and keep the old . With sdwan, you can configure sdwan rule to priority packet to new line and old line as backup routing.

    distillednetwork
    distillednetwork
    Explorer II
    October 24, 2022

    If you plug in the new connection to where the verizon is you can just change the ip address on that port as well as the route in the static routes to point to the new gateway address.



    As far as removing the backup connection, when you unplug the cable from the firewall any rules (where they are sdwan or just basic failover) will be inactive and you should be able to leave the configuration in there.



    If you are uncomfortable doing it yourself, I would suggest finding a local fortinet partner that is willing to help in your area.



    https://partnerportal.fortinet.com/directory/



      segmentation_fault
      segmentation_faultAuthor
      Explorer III
      October 24, 2022

      Thanks, for the tips! I am a little nervous about breaking the whole system as I am not sure what all the settings mean. In any case, here is what I plan to do and you can correct me if anything is wrong:



      First thing is we won't be needing the backup Spectrum Cable ISP anymore. So per your advice we are probably safe to ignore it or unplug it.



      Here are settings for the new Spectrum FIOS internet:



      IP Address Network xxx.xx.xx.144/29
      Gateway xxx.xx.xx.145/29
      Usable: xxx.xx.xx.146 Through xxx.xx.xx.150

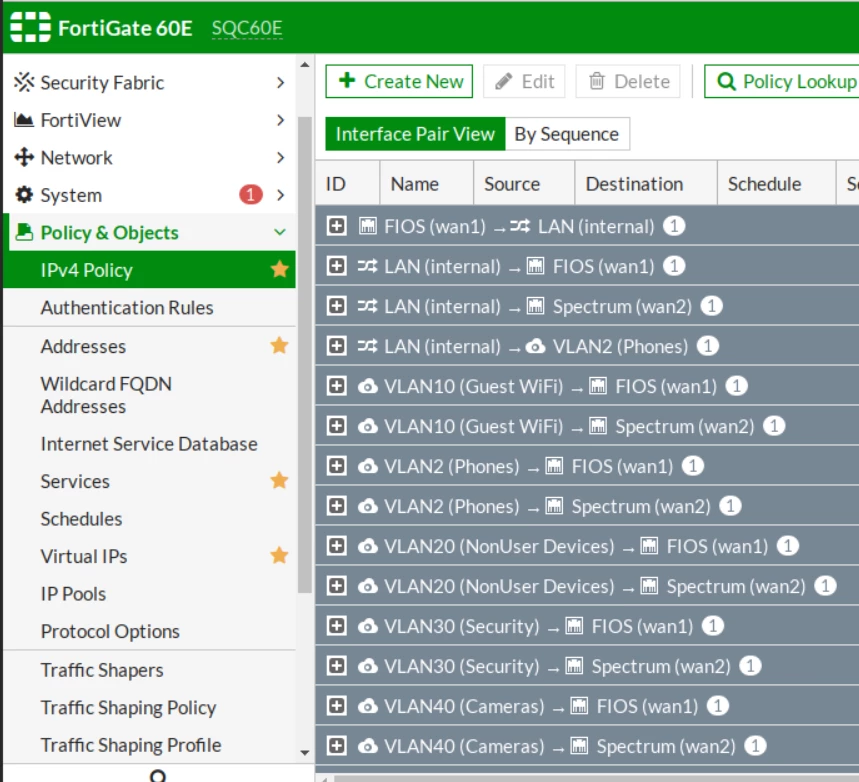

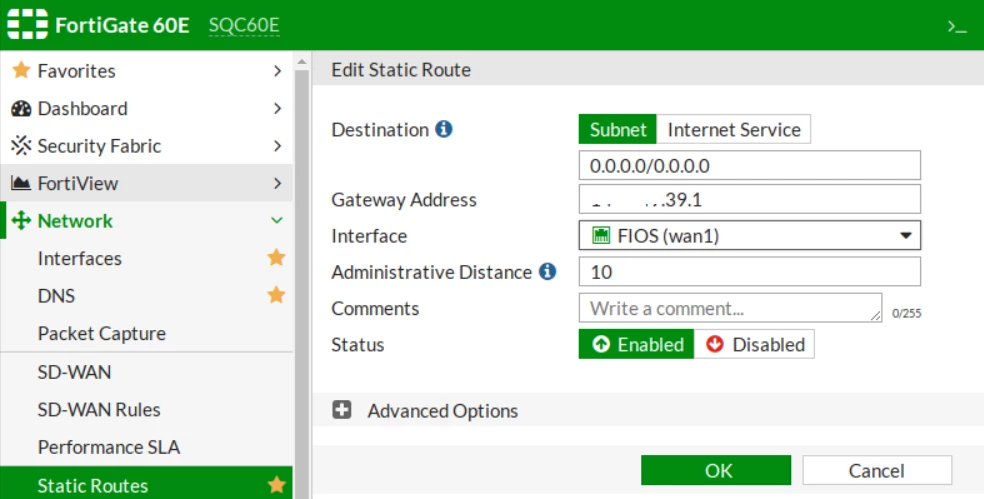

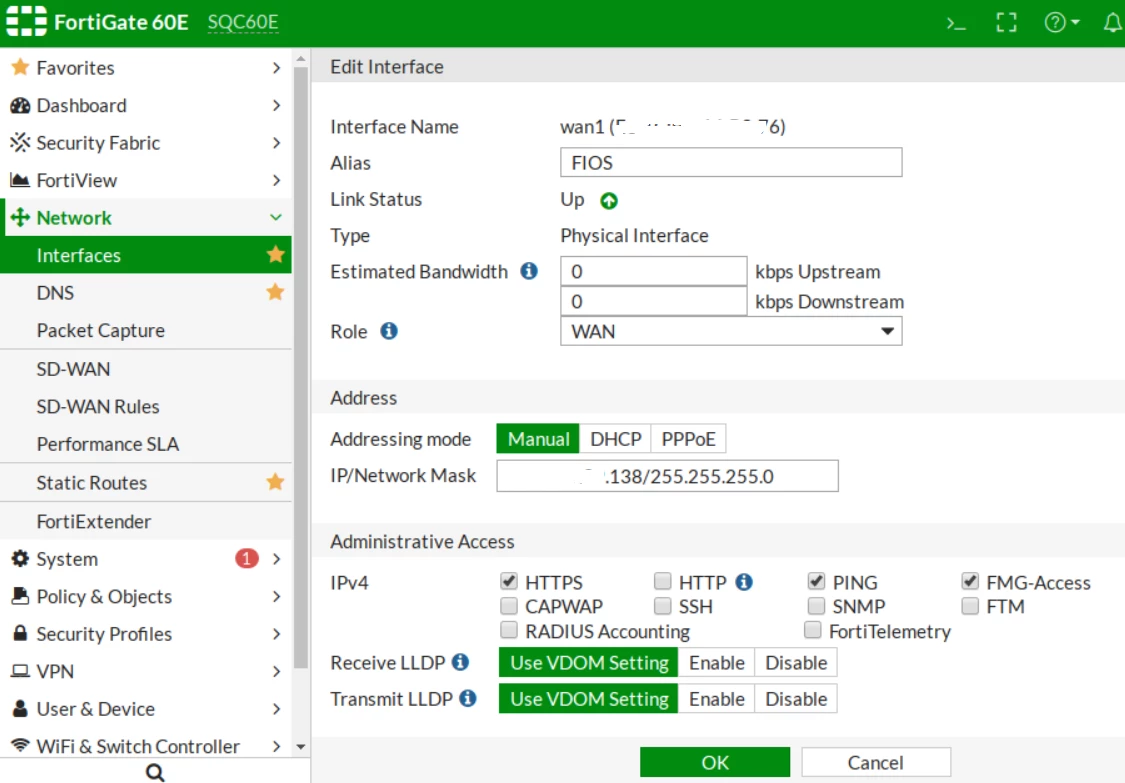

      So first I'll unplug the Verizon FIOS and then plug in the Spectrum FIOS to the same port. Next I will overwrite the current settings for Verizon FIOS with the the new values wherever applicable in the screenshots below:

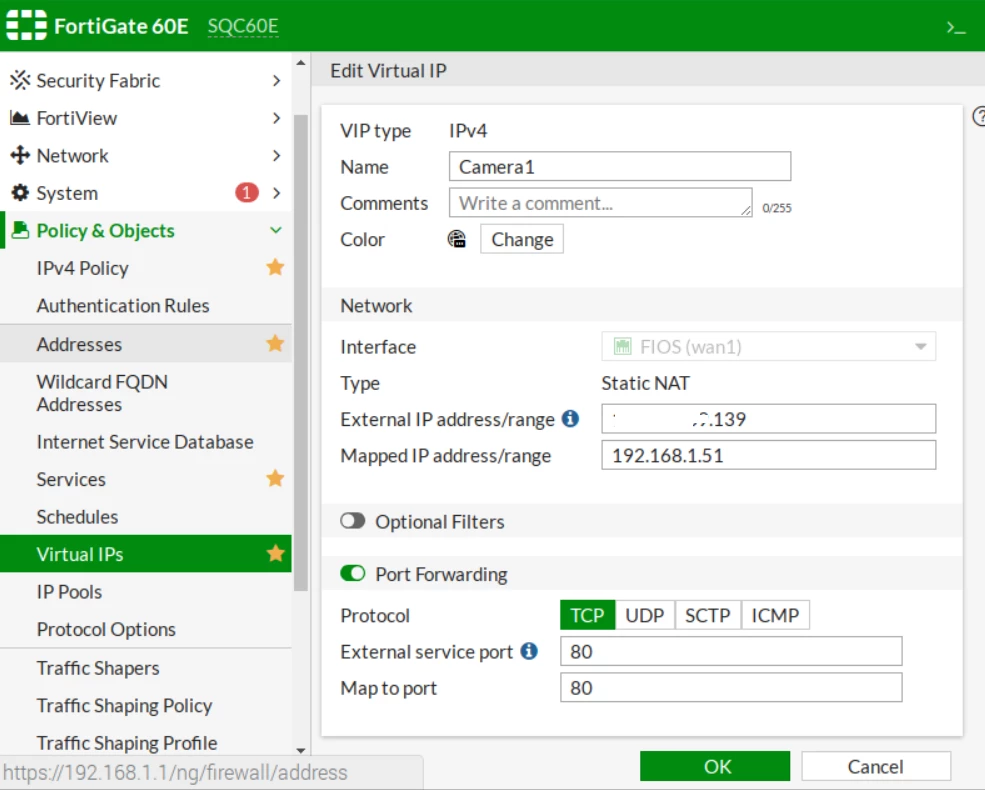

      The last image is for a raspberry pi running a web server off port 80.




      distillednetwork
      distillednetwork
      Explorer II
      October 24, 2022

      Yes, that looks about right.  The only other thing which I assume would not be the case would be anything under SWAN.  Looks pretty basic and those changes should do it based on the information provided in the screenshots.



        segmentation_fault
        segmentation_faultAuthor
        Explorer III
        October 24, 2022

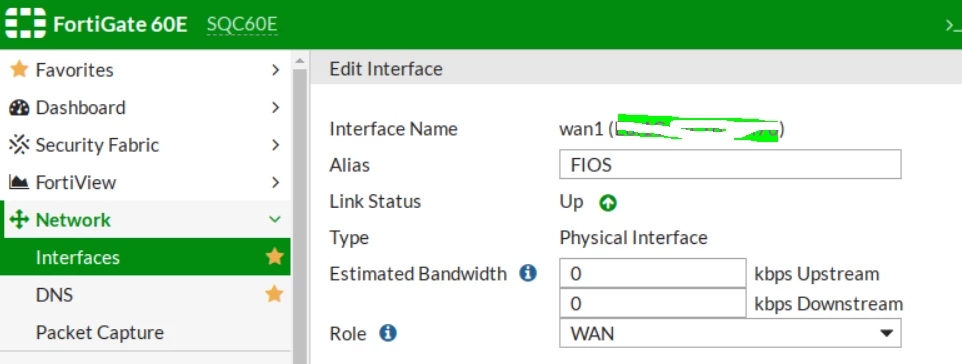

        One thing I am not sure about is when I click the settings for the current Verizon FIOS it shows some kind of MAC ID for the WAN1. Will this dynamically get updated when I plug in the Spectrum FIOS?






        AntonyChen
        AntonyChen
        Explorer II
        October 25, 2022

        mac address not changed when you replace the isp, it's binded to device interface, you said that you can connect with your laptop, it means your ISP not require correct MAC authentication, so you dont have to care about the mac address this case, also mac address of interface can changed in CLI mode, but you dont need this .
        some ISP require pppoe authentication while other provide static IP without pppoe dial. And i think that your isp provide static IP

          distillednetwork
          distillednetwork
          Explorer II
          October 24, 2022

          That should be the mac address of the wan1 ports itself not the mac address of the modem.
