Configure DHCP on 201F

Forum|Forum|3 years ago
September 1, 2022
2 replies
2261 views

Hi

I need to configure DHCP on 201F , I have more than 300 users, what is best way (range , subnet )and how to do that ?

Thanks

FortiGate

Best answer by Ashraf_Gafar

Ok , How about going with this range 172.16.0.0 with mask /252. Is it will work for me? Also can I do this with one interface ?

Do I need additional configuration to let this range see each other and going to internet?

rosatechnocrat

Explorer III

Dear Ashraf,

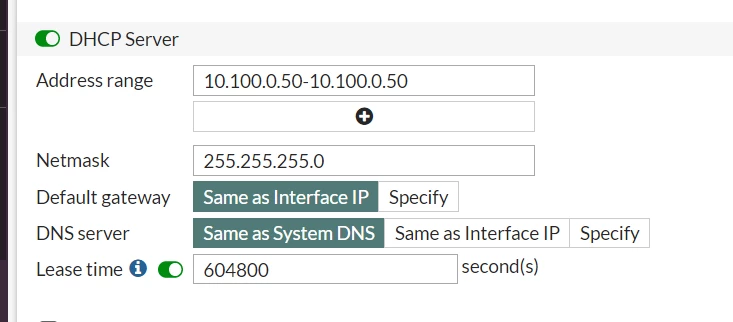

You can use the range with a subnet mask. Also, have the FGT interface configured with a bigger mask rather than /24 as it will contain only around 250 IP addresses.

Subscribe "ROSA Technocrat" on Youtube for Fortinet Videos and Troubleshooting https://www.youtube.com/@rosatechnocrat

Ashraf_GafarAuthorAnswer

New Member

Ok , How about going with this range 172.16.0.0 with mask /252. Is it will work for me? Also can I do this with one interface ?

Do I need additional configuration to let this range see each other and going to internet?

rosatechnocrat

Explorer III

Dear Ashraf,

Yes 172.16.0.0 will work, subnet will be 255.255.0.0 . I didn't get what do you mean /252. Yes You can do with one interface only.

Subscribe "ROSA Technocrat" on Youtube for Fortinet Videos and Troubleshooting https://www.youtube.com/@rosatechnocrat

knagaraju

Staff

Hello Ashraf,

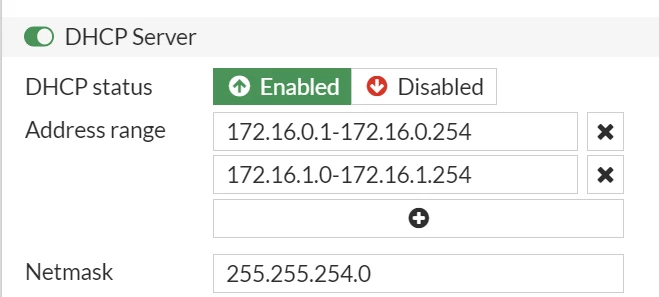

Since you need 300 IP addresses. As an example, you can take 172.16.0.0/23.
In total, you will have 510 IP addresses. Please see the below screenshot for details.

Regards,
Nagaraju.

Ashraf_GafarAuthor

New Member

Ok good :thumbs_up: , it's seem fine I will try do that.

Thanks
