conditions for SD-WAN rule processing

Hello.
Below is my understanding of the conditions for SD-WAN rule processing. Is this correct?

  1. The interface must be configured as an SD-WAN member.
  2. An SD-WAN policy must exist, and the traffic must match that policy’s conditions.
  3. The FIB is used to determine the next hop. FIB entries come from the RIB , which updates the FIB automatically. To add information to the FIB, routes must first be added to the RIB.

3 replies

Anthony_E
Staff
Staff
Feb 17, 2025 5:33 AM UTC

Hello,


Thank you for using the Community Forum. I will seek to get you an answer or help. We will reply to this thread with an update as soon as possible.


Thanks,

Translate
Best Regards
Fab-S
New Member
Feb 17, 2025 6:43 PM UTC

Hello

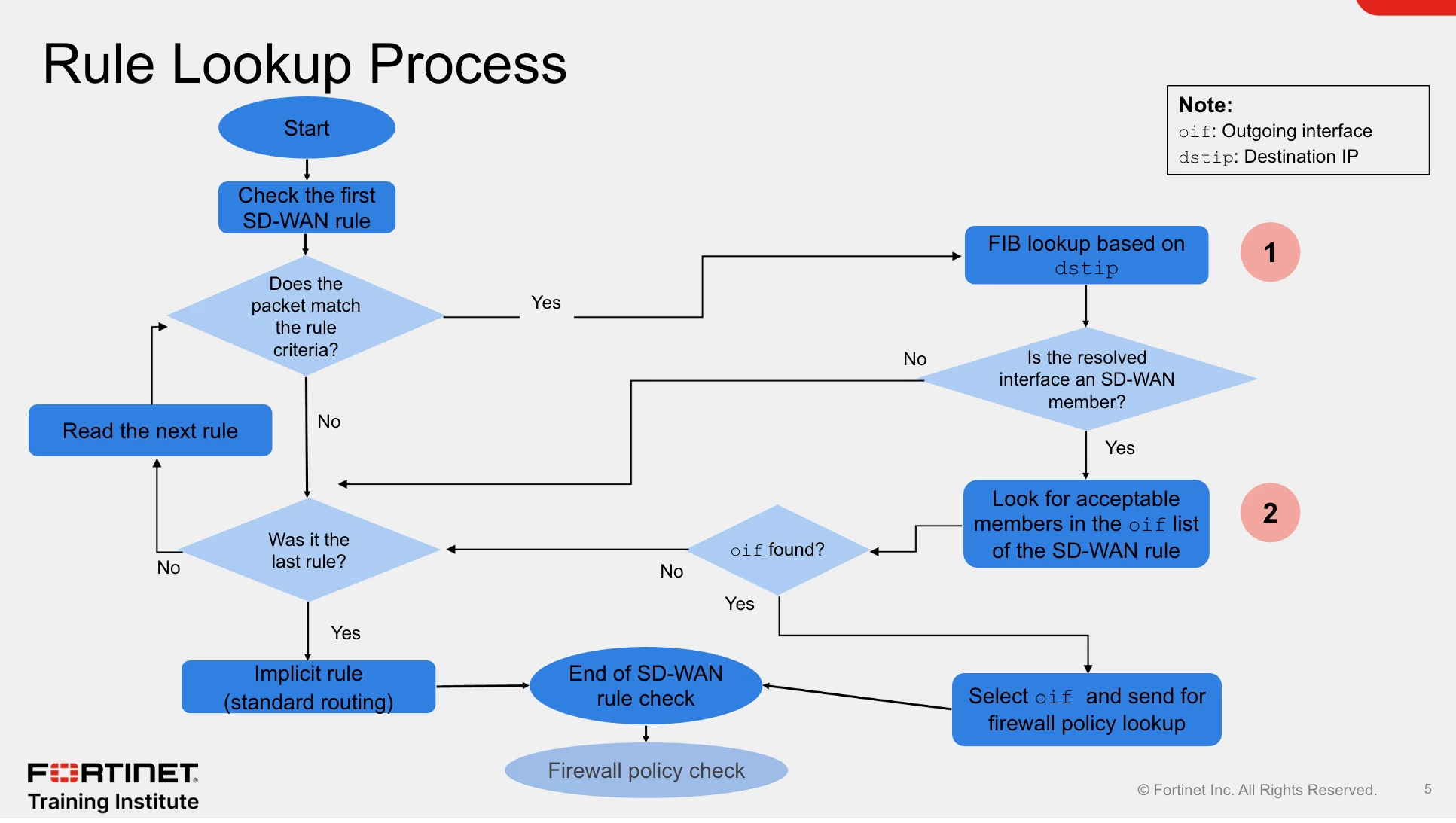

Here is the rule lookup process from the Fortinet Institute:

Capture d’écran 2025-02-17 à 19.41.51.png

Translate
Fab-S
New Member
Feb 17, 2025 6:47 PM UTC

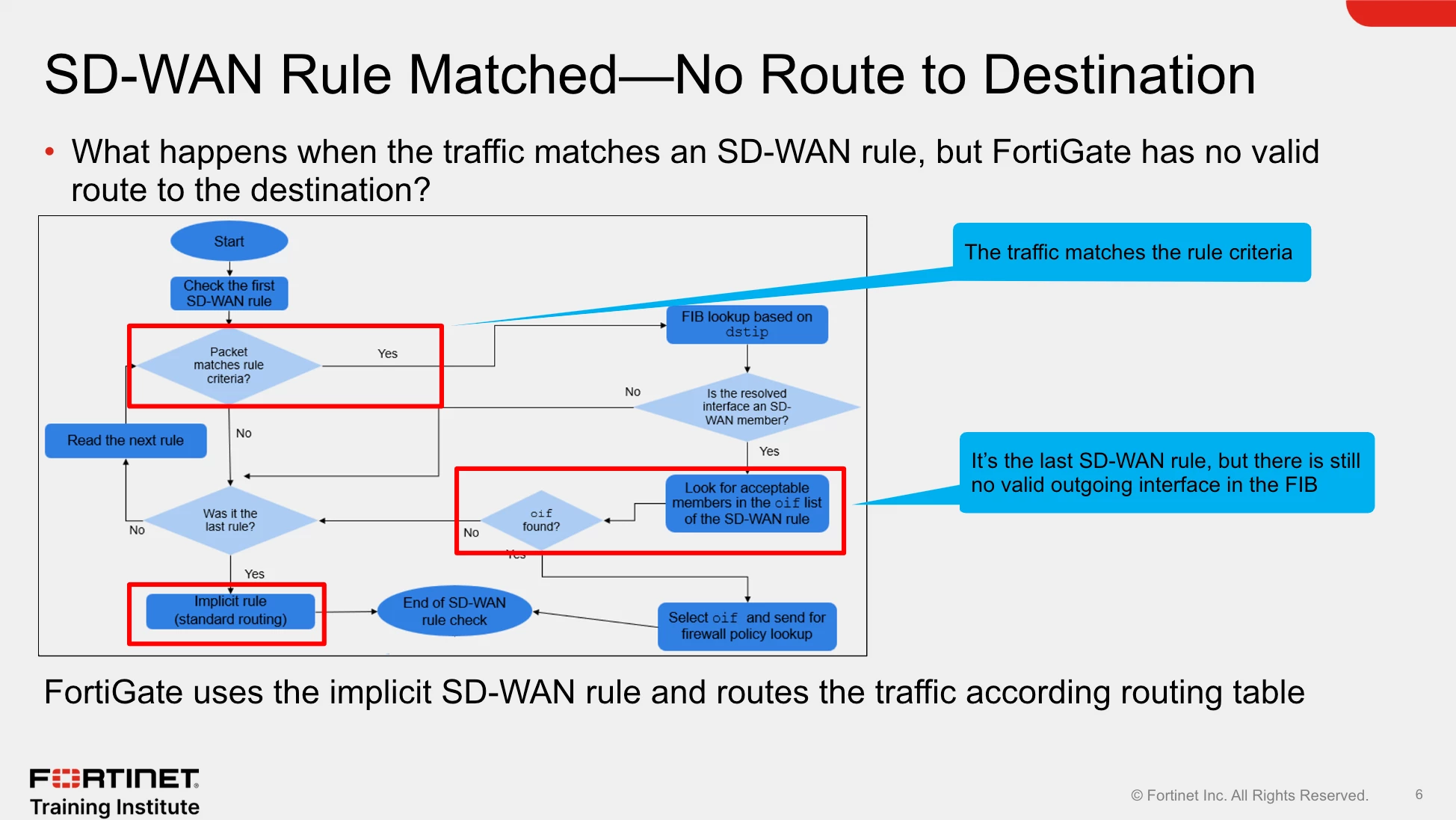

And also:

Capture d’écran 2025-02-17 à 19.44.15.png

I guess that you should find all what you want on the FCSS SDW free lesson on the Fortinet Institute.

Regards :)
