CLI parser error when trying to create Static route on FortiWeb VM KVM

Hello,

When entering a command, the CLI requires that you use valid syntax and conform to expected input constraints. It will reject invalid commands.

For example, if you do not type the entire object that will receive the action of a command operator such as config, the CLI will return an error message such as:

Command fail. CLI parsing error

This document uses the following conventions to describe valid command syntax.

https://docs.fortinet.com/document/fortiweb/7.4.0/cli-reference/909750/command-syntax

Hello @Chuchubi ,

Thank you for contacting the Fortinet forum portal,

-As confirmed by my @Raghu_Kumar  because of the error in the configuration you might see that error.

-Did you try creating from CLI ? if not I would recommend to try

config router static

edit <route_index>

set device "<interface_name>"

set dst "<destination_ip>"

set gateway "<router_ip>"

next

end

example: default gateway

config router static

edit 1

set dst "0.0.0.0 0.0.0.0"

set gateway "192.0.2.1"

set device port1

next

end

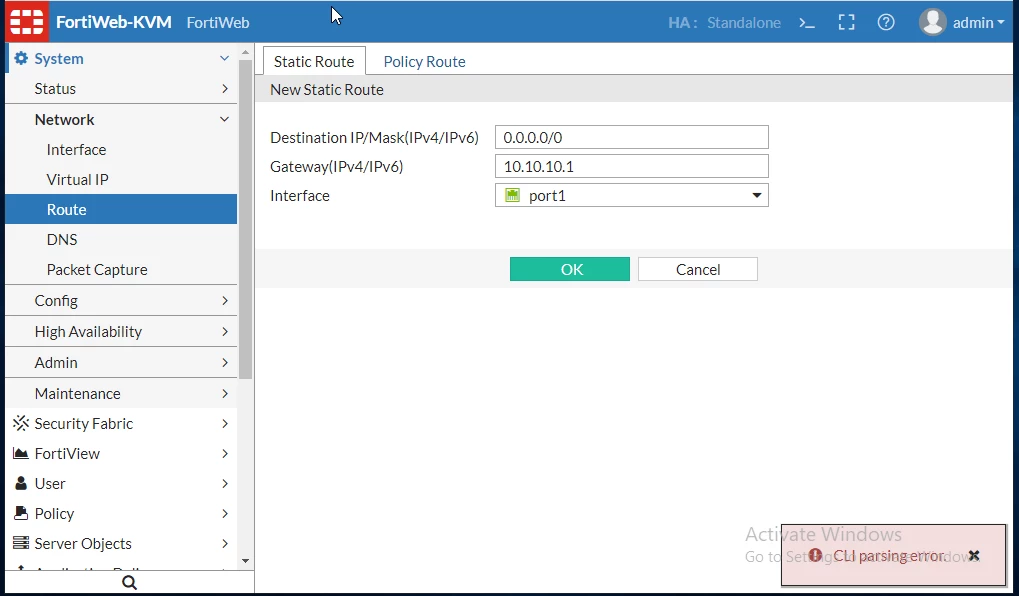

-In the above diagram which you posted you didn't enter full destination 0.0.0.0/0.0.0.0 please correct and check.

refer to below article steps :

https://docs.fortinet.com/document/fortiweb/7.4.0/cli-reference/180788/router-static

Best Regards,

Manasa.

@Chuchubi Could you please share the output of the following commands?

show system interface port1

show router static
