CLI delta - config system output

  • October 30, 2023
  • 1 reply
  • 974 views

I have a 60F-3G4G in production and a 40G on test.

I want to do a diff on the show full-config output but I find the output so different that I do some digging.

Why is there such a massive delta in the config system ? output ?

Thanks

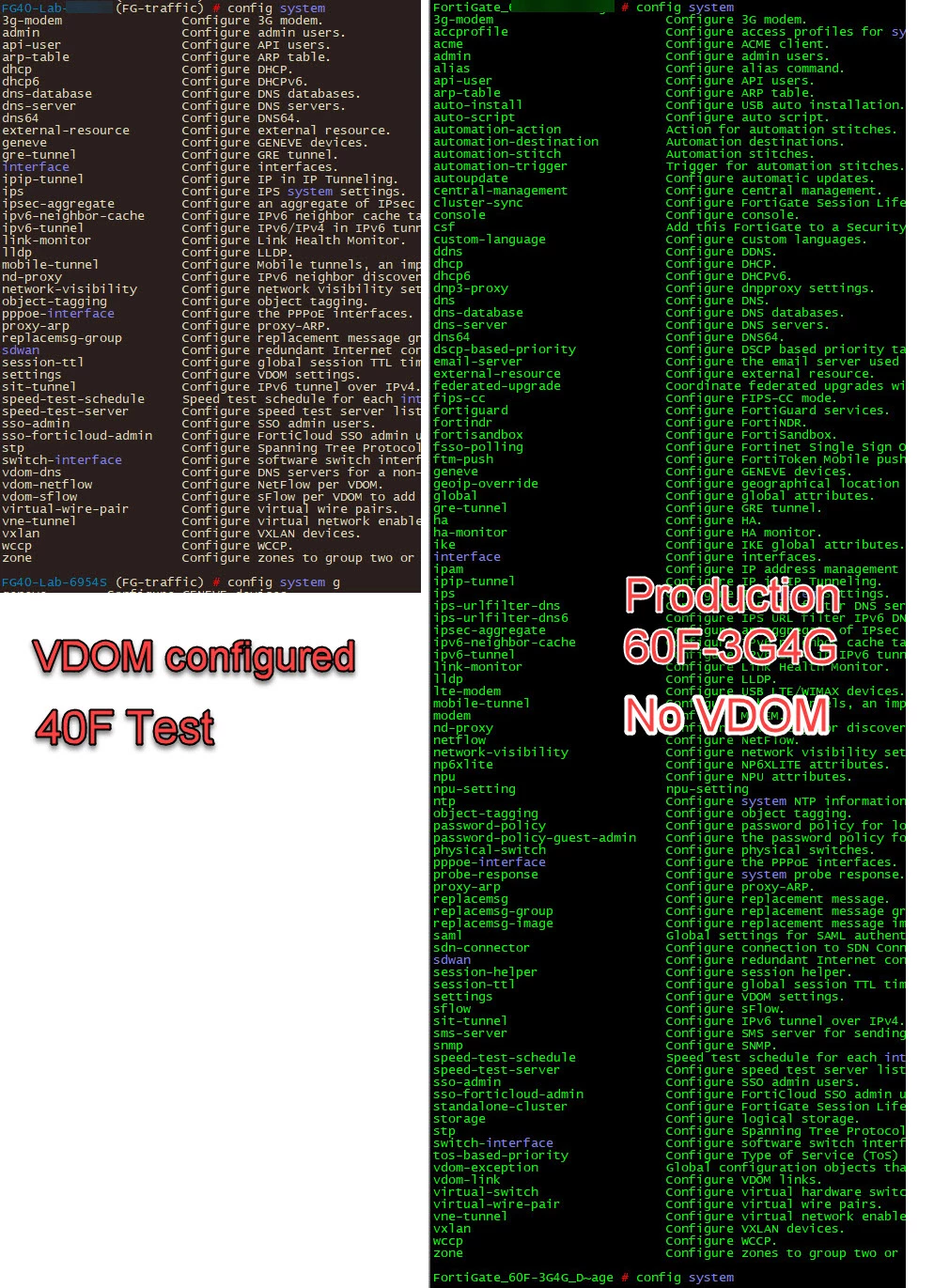

2023-10-30 10h22m17s79 Test Site v Dilli.jpg

Best answer by kcheng

Hi @slouw



The reason behind that is due to VDOM enabled on your FG40F. Some configurations and CLI are only available in global VDOM, hence, when you are in FG-Traffic VDOM, you will not be able to view the configurations for global VDOM.



On the other hand, FG60F does not have VDOM configured, hence, you will be observing all the configurable items with admin privilege.

1 reply

kcheng
Staff & Editor
kchengAnswer
Staff & Editor
October 30, 2023

Hi @slouw



The reason behind that is due to VDOM enabled on your FG40F. Some configurations and CLI are only available in global VDOM, hence, when you are in FG-Traffic VDOM, you will not be able to view the configurations for global VDOM.



On the other hand, FG60F does not have VDOM configured, hence, you will be observing all the configurable items with admin privilege.
