Question

captive portal not loading

  • June 27, 2024
  • 1 reply
  • 1353 views

Running FortiNAC V7.4 -  I have configured the following layer 3 captive portals on the ETH1 interface of the NAC VM.



Isolation

Registration

Dead End

Authentication



I would like endpoints initially to redirect to the registration captive portal as their initial landing page.

I'm not quite sure what I'm missing but we do not get redirected to the captive portal and when I put the captive portal IP address a browser nothing comes up , This is a new setup so maybe I missed something . Also , is there somewhere in FortiNAC GUI where we can preview what the captive portal page looks like?







1 reply

ebilcari
Staff
ebilcari
Staff
June 28, 2024

The isolation port when the portal service will listen is "port2". Make sure to allow the services from CLI:

config system interface
edit port2
set ip 10.99.99.11/24
set allowaccess dhcp dns http https



The isolation networks should be configured in ConfigWizard and the appropriate network changes need to be done in the network (DHCP relay to FNAC isolation interface). You can find some details here.

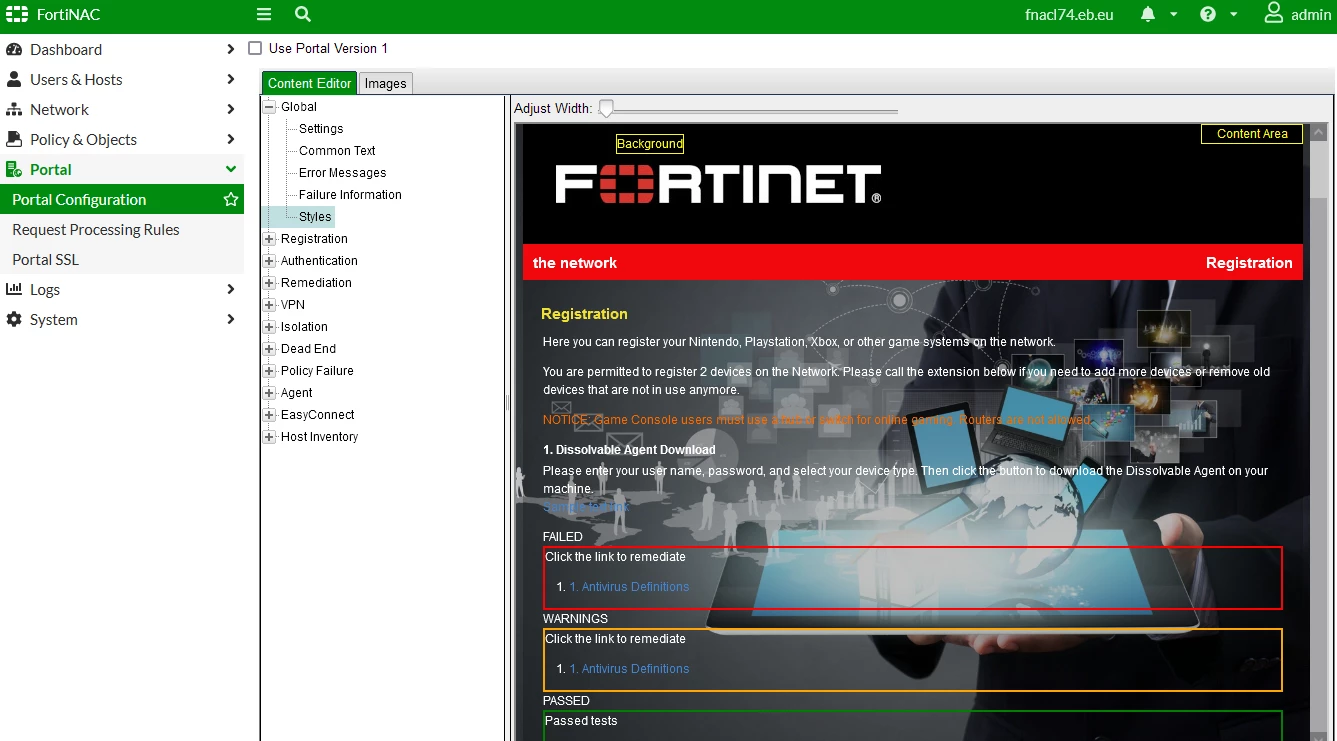

The portal preview and editing can be done in Portal Configuration> Global> Styles:


Emirjon
