Captive Portal Auth but Login to FortiGate Instead 7.0.6

  • July 22, 2022
  • 3 replies
  • 3344 views

Dear Community,



I experience this weird issue when upgrading to 7.0.6

Here, basically, any user when trying to go to internet need to authenticate with active captive portal user will be redirect to http://fgtIPorfgtDomain:1000?tokenxxxxx

or

https://fgtIPorfgtDomain:1003?tokenxxxxx

depend if you have HTTP or HTTPS.

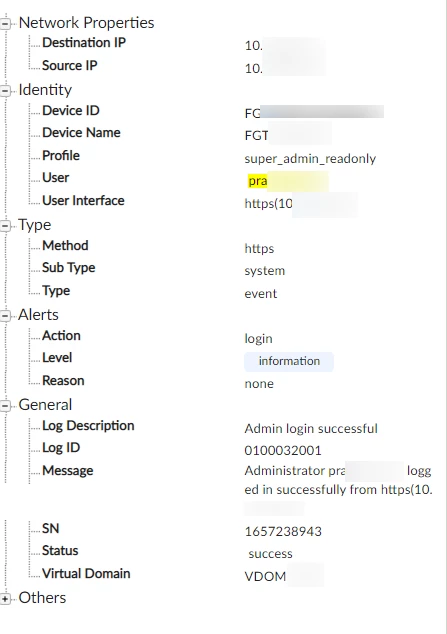

The weird thing is, it shows fortigate admin login page instead of fortigate captive portal authenticate page, and the most weird of them all is user is capable of login and authenticate and enter fortigate admin page via existing configured LDAP.

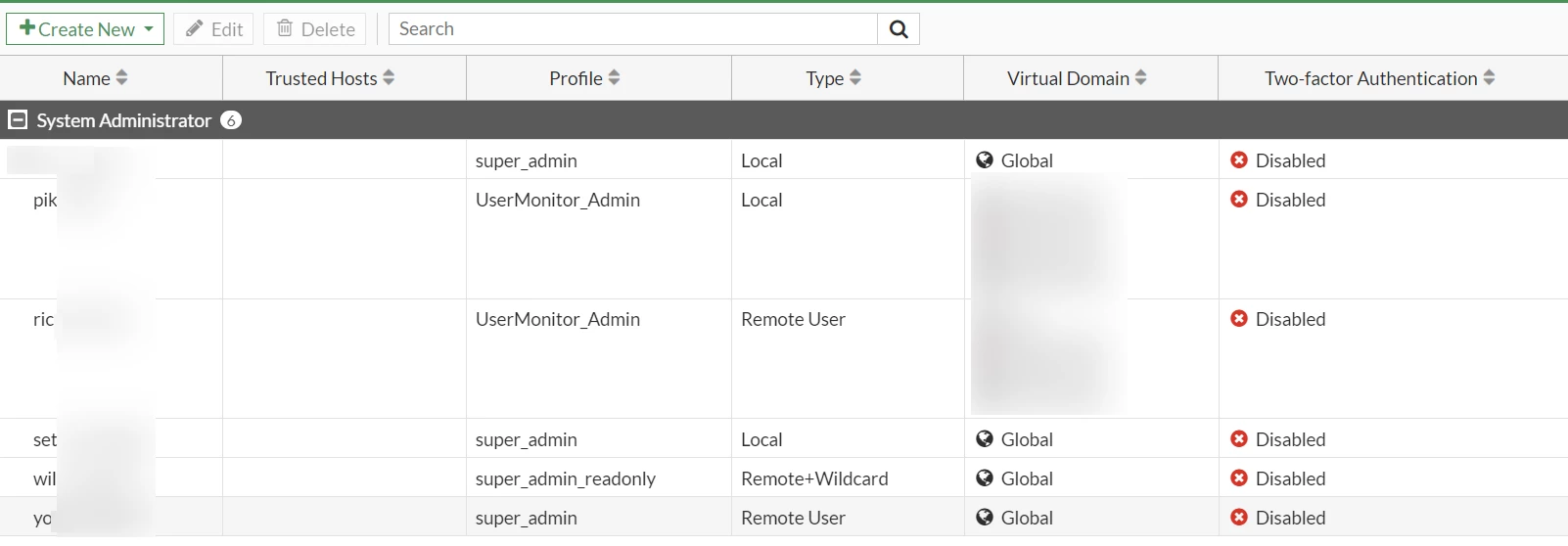

That user is nowhere in administrator.





I took notice when user resolve the IP (because we using domain when captive portal shows up) to the fortigate which enabled https http ping ssh in it's administrative access and immediately disable the https, http, ssh access.



Have community ever experience?

Best regards.

FWD~

3 replies

Anthony_E
Staff
Anthony_E
Staff
July 25, 2022

Hello fiesta,



Thank you for using the Community Forum.



I will seek to get you an answer or help. We will reply to this thread with an update as soon as possible.



Regards,

Best Regards
Anthony_E
Staff
Anthony_E
Staff
July 26, 2022

Hello fiesta,



I am still looking for an answer to your question.

Meanwhile, could you please check this document?:



https://fortinetweb.s3.amazonaws.com/docs.fortinet.com/v2/attachments/5aa2f71c-e133-11ec-bb32-fa163e15d75b/fortios-v7.0.6-release-notes.pdf



Regards,





Best Regards
fiesta
fiestaAuthor
New Member
July 26, 2022

I have read it doesn't seem to mention captive portal in known issue which is the same as my case, probably not listed or maybe not yet known.


Best reagrds.

pminarik
Staff
pminarik
Staff
July 26, 2022

That seems like some very unfortunate misconfiguration. I would suggest to check the following:
1, Which ports are used for admin access:

get sys global | grep "admin-port\|admin-sport"

2, Check for any VIPs that might accidentally be redirecting ports 1000/1003 to 80/443:

show firewall vip:

show fire vip | grep -f extport



Lastly, if an arbitrary LDAP user is able to log into the admin GUI, make sure to review all LDAP groups referenced in your administrator configs. This sounds like one of these groups is very permissive. (perhaps matching anyone in that LDAP?)
