Cannot ping from lan to lan with ipsec sd-wan

Forum|Forum|3 years ago
November 25, 2022
8 replies
11703 views

Hi,

I have configured two ipsec tunnels between Fortigate_A and Fortigate_B with static routing and then added to sd-wan zone on both sides. I created ipv4 allow rules to allow lan to lan traffic, and this is not working, I mean tunnels are up established but cannot ping from lan to lan. So I addressed Ipsec interfaces, now the strange I can ping from Fortigate_B to Fortigate_A ipsec address but not in opposite. Ping are allowed on ipsec interfaces. How to troubleshoot this?

FortiGate

Best answer by Tutek

Thank you all for a help, my problem was today resolved with TAC

in short I had performance sla configured for "All sdwan members" and therefore ipsec tunnels were also there, this performance sla checked google servers - so ipsec tunnels were down, and because of that I had no any hits in sd-wan rules regarding this ipsec traffic.

msolanki

Staff

Hi Tutek,

Its look like routing issue .You need to check if you have configured the static route towards tunnel interface correctly. Also check route table to destination IP to get to know the routes are learning or not.

please follow below KB and verify your config

https://community.fortinet.com/t5/FortiGate/Technical-Tip-How-to-configure-VPN-Site-to-Site-between/ta-p/197922

If you sniff the IP then it will help to see the traffic leaving from one site and if its reaching other side or not .

Thanks

Madhav

TutekAuthor

New Member

when I do ping from lan pc on Fortigate_A then I see that this is going to internet:

FGT # diag sniffer packet any 'host 10.17.x.x' 1 interfaces=[any] filters=[host 10.17.x.x] 1.279258 10.x.x.x. -> 10.17.x.x: icmp: echo request 1.279297 205.x.x.x -> 10.17.x.x: icmp: echo request 2.292788 10.x.x.x. -> 10.17.x.x: icmp: echo request 2.292824 205.x.x.x -> 10.17.x.x: icmp: echo request

But in static routes I have created rule for network 10.17.x.x with gateway sd-wan zone (two ipsec tunnels)

TutekAuthor

New Member

ok I made small progress:

-ping from fortigate_A console to remote lan without ping-options - > failed

in this option I see that echo request coming from default mgmt interface that I do not use:

37.105667 Branch out 192.168.1.99 -> 10.17.X.X: icmp: echo request

-ping from fortigate_A console to remote lan with source as lan gateway IP --> success

-ping from pc lan Fortigate_A to remote lan - > failed

in this situation in sniffer I see to echo request is going to internet:

6.617890 port23 out 205.x.x.x -> 10.17.x.x icmp: echo request

gfleming

Staff

Ping from Fortigate will not rely on FW Policy or SD-WAN rules. Ping from PC behind FGT will rely on FW Policy and SD-WAN rules. Please check your FW Policy allowing the traffic and please check SD-WAN rules/routing for PC traffic.

TutekAuthor

New Member

this is not ipv4 polic problem but routing, when I ping from pc remote lan then I get on Windows CMD console "Destination net unreachable." because these echo request are going to internet:

GT # diagnose sniffer packet any "host 10.17.x.x" 4 interfaces=[any] filters=[host 10.17.x.x] 5.041522 vlan10 in 10.10.x.x -> 10.17.x.x: icmp: echo request 5.041640 port23 out 205.x.x.x -> 10.17.x.x: icmp: echo request 5.044369 port23 in 10.17.x.x -> 205.x.x.x: icmp: echo reply

but my static routing to remote lan is configured:

edit 13  set dst 10.17.x.x 255.255.240.0  set device "W1-Branch-W1"  next  edit 18  set dst 10.17.x.x 255.255.240.0  set device "W2-Branch-W1"  next

FGT # get router info routing-table all . . . S 10.17.x.x/20 [10/0] is directly connected, W1-Branch-W1 [10/0] is directly connected, W2-Branch-W1

Responsible sd-wan rule for this traffic is at the top, but even don't get any hit counts (Fortigate do not use this sd-wan rule but force this traffic to internet)

gfleming

Staff

Can you please show what the destination address object/IP subnet is for the SD-WAN rule #8 is?

Please also confirm actual IP address of remote PC and actual desitnation subnet in static route entry.

Please also show output of "show vpn ipsec phase1-interface W1-Branch-W1"

And lastly try the following and then ping the remote LAN and copy the output:

diag debug ena
diag debug flow filter daddr 10.17.x.x (Actual IP of remote LAN)
diag debug flow filter saddr 10.10.X.X (actual IP of PC on this side)
diag debug flow filter proto 1
diag debug flow trace start 5

TutekAuthor

New Member

Thanks gfleming I'm appreciate your help I'm stuck with this config, the same situation is on brach (it push traffic destined to ipsec tunnels to internet), now responding:

1.

FGT (sdwan) # config service

FGT (service) # show
config service
edit 8
set name "to_branch"
set dst "branch_subnet" (10.17.x.x/20 - all summarized subnet)
set src "all"
set priority-members 3 4 (these are ipsec tunnels w1-branch-w1, w2-branch-w1)
next

2.I have couple subnets on branch, lan with pc is with 10.17.2.x /24

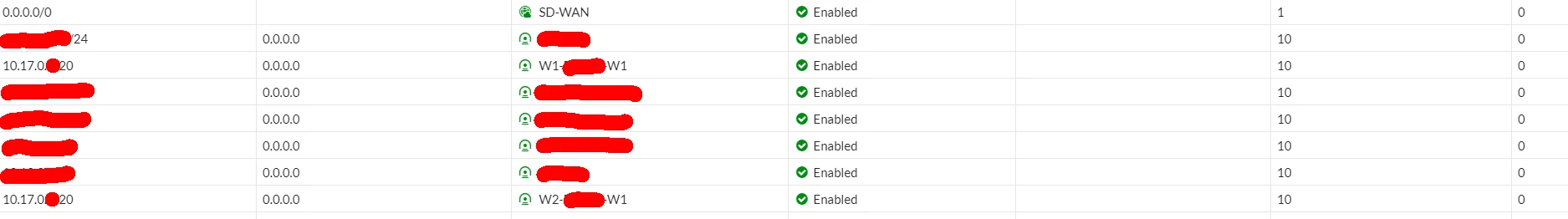

Static route have for sure as destination two ipsec virtual interfaces:

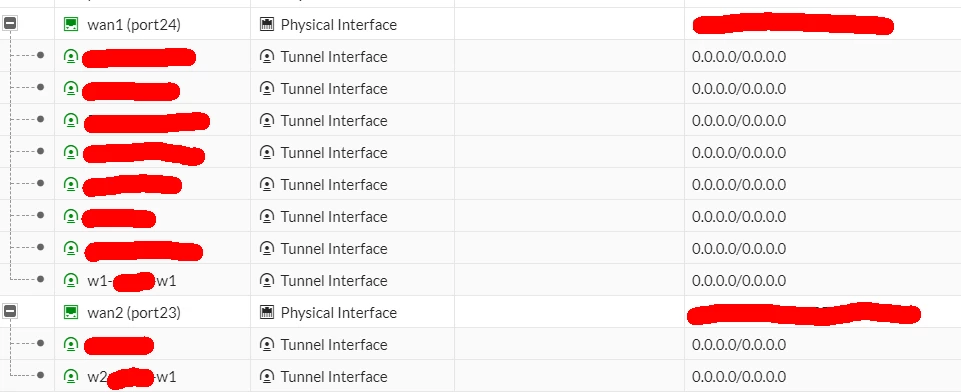

as you can see I have other ipsec tunnels that are working but they are not in sd-wan, and they are configured in tunnel mode, so I have network configure in phase-2 selectors. These two ipsec that are member of sd-wan are in interface ipsec mode with zeroes in selectors.

3. ipsec phase-1 output:

FGT (W1-Branch-W1) # get name                : W1-Branch-W1 type                : static  interface           : port24  ip-version          : 4  ike-version         : 2  local-gw            : 0.0.0.0 keylife             : 86400 authmethod          : psk  authmethod-remote   :  peertype            : any  net-device          : disable  passive-mode        : disable  exchange-interface-ip: disable  aggregate-member    : disable  mode-cfg            : disable  proposal            : aes256-sha256  localid             :  localid-type        : auto  auto-negotiate      : enable  negotiate-timeout   : 30 fragmentation       : enable  ip-fragmentation    : post-encapsulation  dpd                 : on-idle  forticlient-enforcement: disable  comments            :  npu-offload         : enable  dhgrp               : 19  suite-b             : disable  eap                 : disable  ppk                 : disable  wizard-type         : custom  reauth              : disable  idle-timeout        : disable  ha-sync-esp-seqno   : enable  inbound-dscp-copy   : disable  auto-discovery-sender: disable  auto-discovery-receiver: disable  auto-discovery-forwarder: disable  encapsulation       : none  nattraversal        : enable  fragmentation-mtu   : 1200 childless-ike       : disable  rekey               : enable  fec-egress          : disable  fec-ingress         : disable  network-overlay     : disable  remote-gw           : wan-gateway-of-branch monitor             :  tunnel-search       : selectors  add-gw-route        : disable  psksecret           : *  keepalive           : 10 dpd-retrycount      : 5 dpd-retryinterval   : 120

4. packet flow when ping to branch lan pc

FGT # id=20085 trace_id=1 func=print_pkt_detail line=5824 msg="vd-root:0 received a packet(proto=1, 10.10.x.x:5->10.17.2.x:2048) from vlan10. type=8, code=0, id=5, seq=27807." id=20085 trace_id=1 func=init_ip_session_common line=5995 msg="allocate a new session-001e76e5" id=20085 trace_id=1 func=vf_ip_route_input_common line=2589 msg="Match policy routing id=2130837510: to 10.17.2.x via ifindex-29" id=20085 trace_id=1 func=vf_ip_route_input_common line=2615 msg="find a route: flag=04000000 gw-185.x.x.x via port23" id=20085 trace_id=1 func=fw_forward_handler line=811 msg="Allowed by Policy-87: SNAT" id=20085 trace_id=1 func=ids_receive line=298 msg="send to ips" id=20085 trace_id=1 func=__ip_session_run_tuple line=3519 msg="SNAT 10.10.x.x->185.x.x.x:60421" id=20085 trace_id=1 func=ipd_post_route_handler line=490 msg="out port23 vwl_zone_id 1, state2 0x4001, quality 0.

as you see it outgoing my port23 which is wan.

gfleming

Staff

You never answered what is on port 24.

Also can you show output of "diagnose netlink device list | grep 29"

TutekAuthor

New Member

//errata port24 is wan1 and port23 is wan2 ....sorry

FGT # diagnose netlink device list | grep 29 vlan17: 77572732  234927    0    0    0     0          0         0   942906   20483    0    0    0     0       0          0 vlan12: 38872711  272192    0    0    0     0          0         0 29327341  285688    0    0    0     0       0          0  port1: 89223716729 91406007    0    0    0     0          0         0 92973677296 139126928    0    0    0     0       0          0 Cieplice_ipsec:   66134     341    0    0    0     0          0         0    35341     129    0    0    0     0       0          0 vsys_fgfm: 30872007   29164    0    0    0     0          0         0 30872007   29164    0    0    0     0       0          0 ssl.root: 343996851 2536744    0    0    0     0          0         0 1858266770 2902900    0 3730    0     0       0          0

TutekAuthor

New Member

I have downgraded branch fortigate to 6.4.11 and did factory reset, now it is the same version like central fortigate, after configuring it from scratch slowly step by step only with one ipsec tunnel as for now. Now I see that request like www, dns, are routed through the tunnel. I see on sd-wan rules that member have this icon mean that is selected, and hit count increasing on sd-wan-rules:

But on central HQ sd-wan rules that use the same tunnel don't have this icon and hit count not increasing:

Something is wrong with routing on central HQ but don't now how to fix it, everything is configured like in documents :(

gfleming

Staff

What is on port 24?

And what is output of the following command from central FW?

get router info routing-table details 10.17.2.X/XX

(where 10.17.2.x/xx is actual remote subnet)

Also it would be very useful if you could not mask your private IPs. There's nothing we can do with them but it helps immensely in troubleshooting so we can identify routing issues.

TutekAuthor

New Member

FGT # get router info routing-table details 10.17.2.0/24 % Network not in table

but as I said I have summarized remote network in static routes, so:

FGT # get router info routing-table details 10.17.0.0/20  Routing table for VRF=0 Routing entry for 10.17.0.0/20   Known via "static", distance 10, metric 0, best   * directly connected, w1-branch-w1 distance 0   * directly connected, w2-branch-w1 distance 0

gfleming

Staff

What are your SD-WAN policies on central FW that point to branch?

Why do you only have one VPN tunnel to branch out port 24 and not one out port 23?

TutekAuthor

New Member

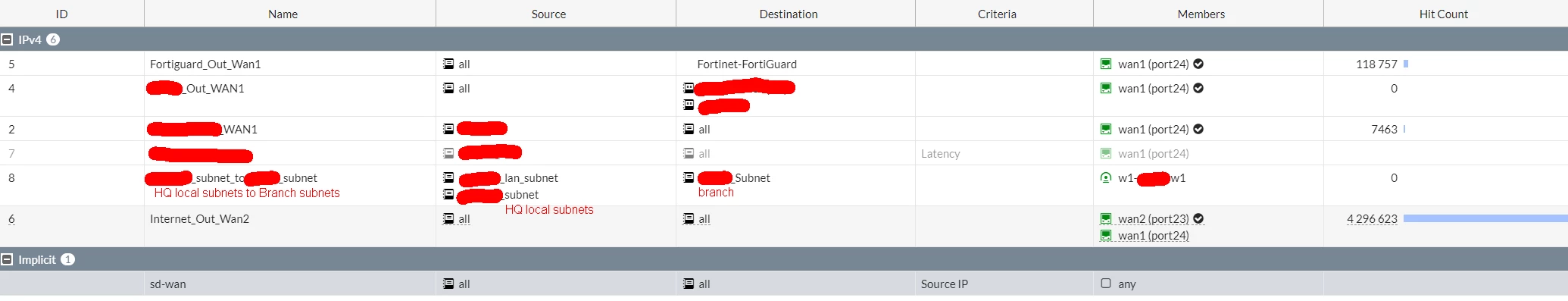

Here are all my SD_WAN rules:

From the top to bottom

1.fortiguard out wan1

2.two financial sites out wan1

3.one internal server out wan1

4 - inactive

5.local lans to branch lan out w1-branch-h1 (don't have any hits count)

6.all internet go out to wan2 (port23)

TutekAuthor

New Member

No, I have w1-branch-w1 (mean local wan1, remote wan1) on port 24

and w2-branch-w1 (mean local wan2, remote wan1) on port 23

gfleming

Staff

OK and what do you have at the branch? Do you have two IPSEC tunnels pointing to both port 24 and 23?

TutekAuthor

New Member

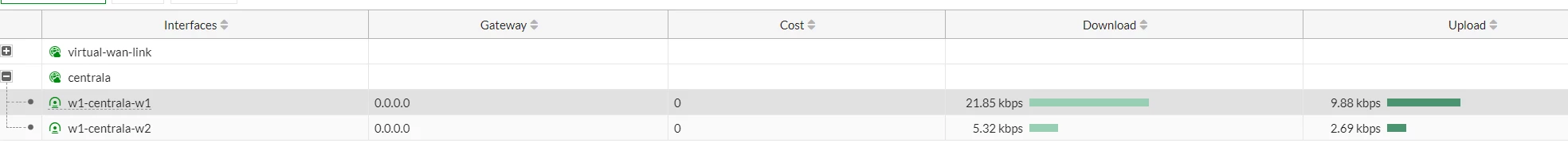

branch have only one wan so:

but yes, during creation on phase-1 interface w1-centrala-w1 I pointed to wan24 (wan1 ip), and for tunnel w1-centrala-w2 I have pointed to port23 (wan2 ip)
