Can we tweek this captive portal page in FortiWLC 4200 WLC 500D

Forum|Forum|1 month ago
August 7, 2026
2 replies
67 views

can we get a proper captive portal instead of showing the default page.

https://<controller-ip>/vpn/auth_web_ok.html

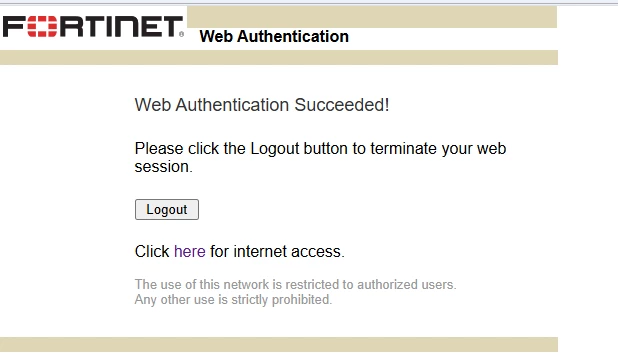

we tried changing the auth_web_ok.html inside custom captive portal under maintenance. but still its loading the default fortinet page as shown below.

farhanahmed

Staff

Refer: Page #290 and #291
https://fortinetweb.s3.amazonaws.com/docs.fortinet.com/v2/attachments/fd92e133-68cb-11e9-81a4-00505692583a/Fortiwlc-sd-v8.4.4-userguide.pdf

Instead of replacing auth_web_ok.html directly, save the modified page with a unique filename, upload it, and select it as the Success Page under Maintenance -> Captive Portal -> Custom CP. Also map it to the client subnet and make sure the controller is set to Customized mode. Opening /vpn/auth_web_ok.html directly will continue to show the default page.

www.farhan.ch

A

AnjuAuthor

Explorer

Thank you, we were able to resolve this with the above steps.
