Can We Alert Traffic Shaping Rule?

Forum|Forum|11 years ago
August 19, 2015
4 replies
8598 views

Hi,

I want to ask, is it possible to trigger an event on FortiGate when traffic reach or exceed traffic shaping (TS) rule?

Let's say, if there is a TS rule on LAN to WAN interface that say limit traffic to 5 MB,

is it possible to trigger event when the actual throughput from LAN to WAN interface reach or exceed 5 MB,

and then send an email notification when the event occur.

Please tell me how it works.

Thanks a lot.

gschmitt

New Member

Not as far as I know but I don't actually see what the benefit of this would be

TCP traffic, by protocol, tries to establish the maximum bandwidth and transport at it

kraditheoAuthor

New Member

gschmitt wrote:
Not as far as I know but I don't actually see what the benefit of this would be

TCP traffic, by protocol, tries to establish the maximum bandwidth and transport at it

The use case of this is to alert user when one of their interface have maximum bandwidth allowed and have possibility to experience packet drop.

vjoshi_FTNT

Staff

Hello,

Not for the Traffic Shaping. Though you have more control on the browsing with the web filter quota, where even the user is notified on how much bandwidth he has used.

However, it has some limitations as it is only applicable for the WEB traffic.

Application control has got traffic shaping options, which I believe should generate logs, worth a check.

AtiT

New Member

Hi,

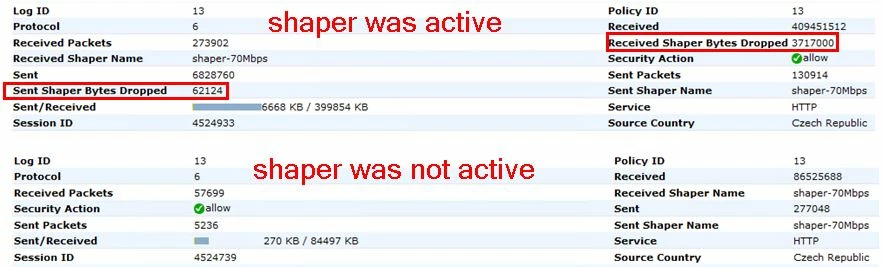

You should able to do it from FortiAnalyzer. The traffic log contains fields for Bytes Dropped - see the attached image.

Tested for high bandwidth connection (shaper was shaping the traffic) and low bandiwth (shaper was not active - line BW did not reached the shaper limit).

Probably you can do it from some syslog server where you will check these fields in the traffic log and send an email.
