Can't create VPN Policy-Based Mode in FortiOS 5.4

Forum|Forum|10 years ago
January 13, 2016
8 replies
15831 views

I have a new FG 200D with v5.4.0,build1011.

I need to create a Policy-Based Mode VPN to create to an old site.

My problem is I can't find the option in the phase 1 IPsec to specify the type of VPN although I turned od the Feature "Policy-based IPsec VPN".

Other problem is that if I use the "Create" button on VPN > IPsec Tunnel it always open the VPN creation wizard.

And if try to change the VPN created by the wizard I can't see any option to change the VPN mode.

Could you help me or give me some doc link.

Thanks in advance

mac

New Member

Please into "Feture Select" enable Policy-base IPsec vpn


ellebibr1Author

New Member

Thank you very much Mac!

I have already set the Policy-base IPsec vpn feature (now it is on) but when I use the wizard to create the VPN I have no option to define the Policy Mode.

Could you send me a snapshot to show me where is the option (flag or menu) to set the mode.

Thank you again

ellebibr1Author

New Member

Solved:

I have the VPN Policy-Based Mode option if I create the new policy and at the beginning of the wizard I choose custom.

Alby23

New Member

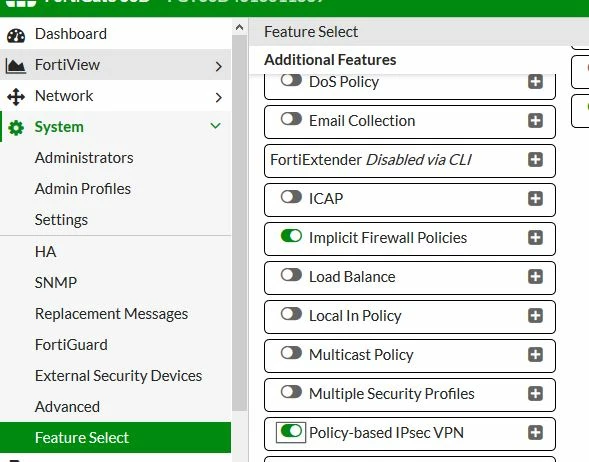

You have to enable "Policy Based VPN" in the "Feature Select" part of the System Configuration.
