Question

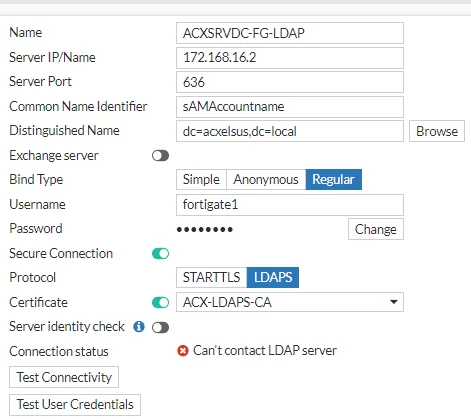

Can't contact LDAP server Fortigate60F

Hi,
Our LDAP server is working before, but after we change our ISP the errors occurs (Can't contact LDAP server).
We can still ping our AD from firewall, and ping firewall from AD.

5 replies

btey
Staff & Editor
Staff & Editor
Jul 6, 2022 1:28 AM UTC

Hi Acxelsus,



You may verify the connection to LDAP server with the following command:



# diagnose sniffer packet any "host x.x.x.x and port yy" 4



Replace x.x.x.x to the LDAP server IP and yy to the LDAP port .



- verify the outbound interface

- verify if any response from the LDAP server



Please check if the following article relevant to your scenario:

https://community.fortinet.com/t5/FortiGate/Troubleshooting-Tip-Status-of-LDAP-server-connected-via-IPsec/ta-p/195558





Translate
Acxelsus
AcxelsusAuthor
Explorer
Jul 6, 2022 2:09 AM UTC

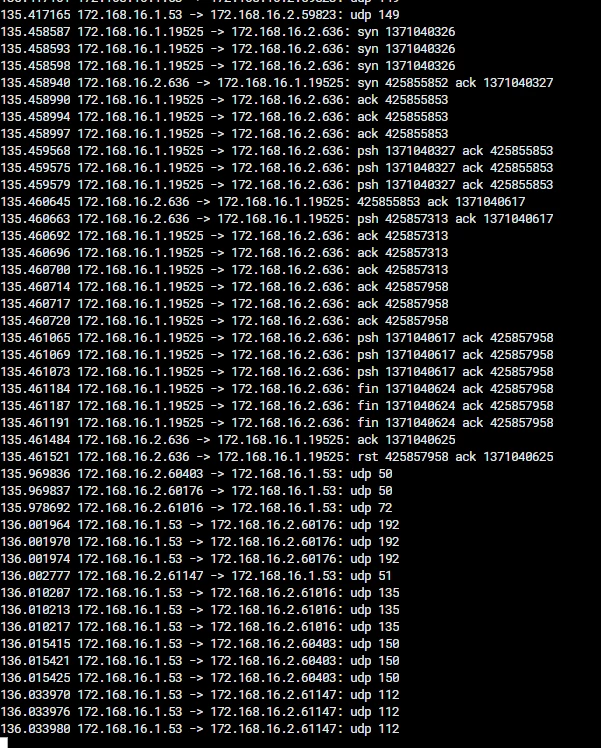

This is the response

Translate
btey
Staff & Editor
Staff & Editor
Jul 6, 2022 3:11 AM UTC

Hi Acxelsus,



What is firewall firmware version?

You may try to run httpsd debug to check the LDAPS negotiation or you may try disable server-identity-check



config user ldap
edit xxx>>> Server Name
set server-identity-check disable
end



For httpsd debug:



# diagnose debug application httpsd -1

# diagnose debug enable



Test the connection again. To stop debug:



# diagnose debug disable

# diagnose debug reset



For your reference:

https://community.fortinet.com/t5/FortiGate/Technical-Tip-Configuring-LDAP-over-SSL-LDAPS/ta-p/189972

https://community.fortinet.com/t5/Fortinet-Forum/Cannot-contact-LDAP-server/td-p/90065





Translate
Acxelsus
AcxelsusAuthor
Explorer
Jul 6, 2022 3:33 AM UTC

The firmware version is 7.0.5


Still the same, can't contact the ldap server

Translate
btey
Staff & Editor
Staff & Editor
Jul 6, 2022 6:13 AM UTC

Please ensure the CA certificate is correct.

You may perform packet capture for the LDAP connection to get more detail.
