Can't connect ipsec vpn

  • March 12, 2024
  • 5 replies
  • 3636 views

Hello,

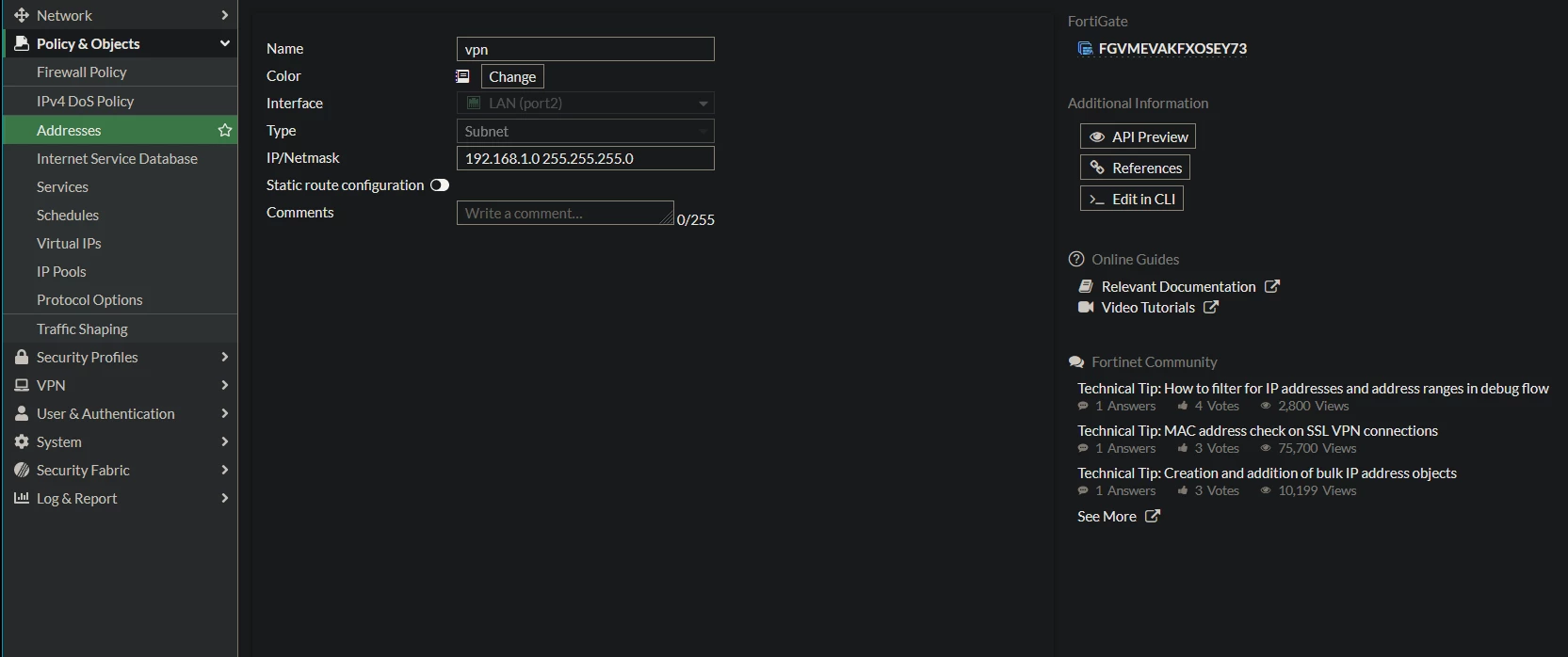

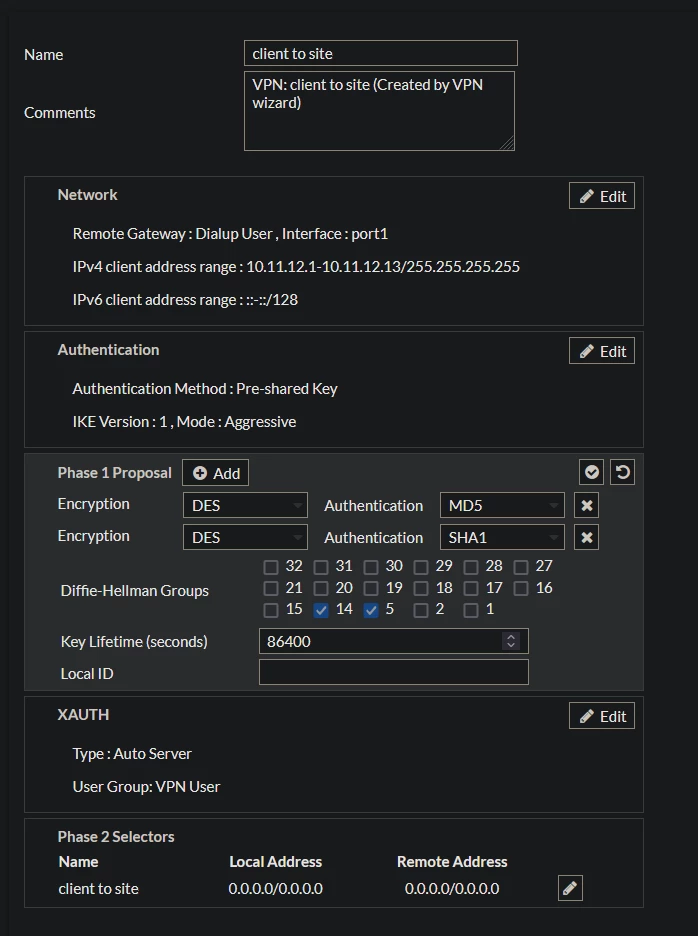

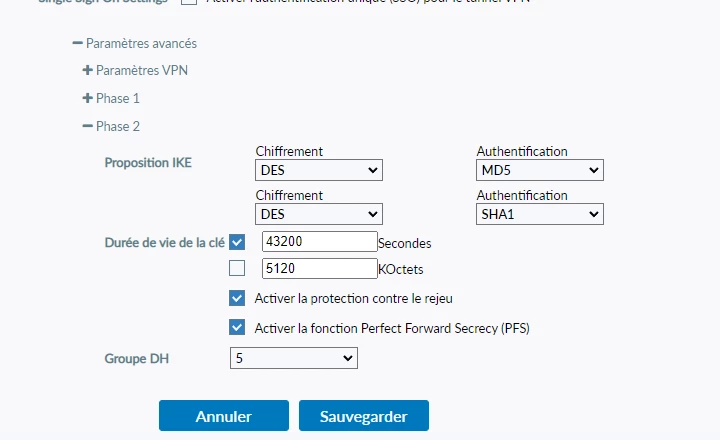

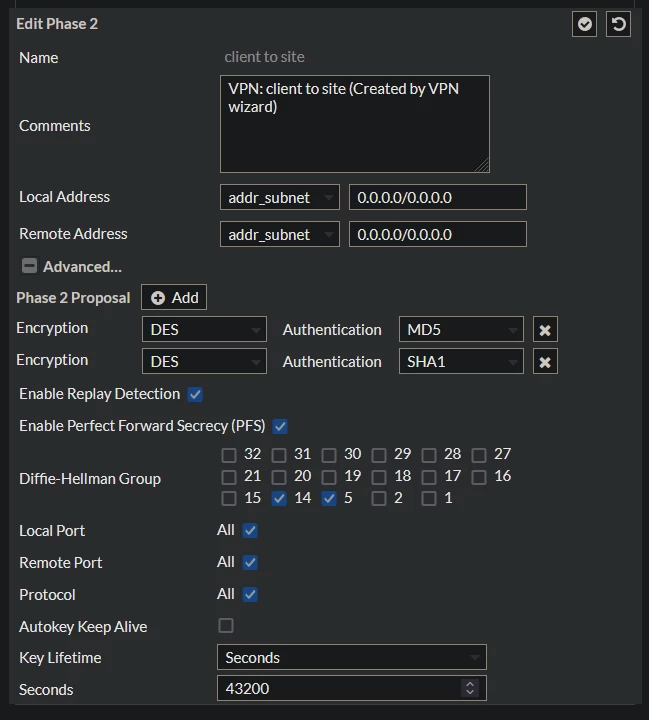

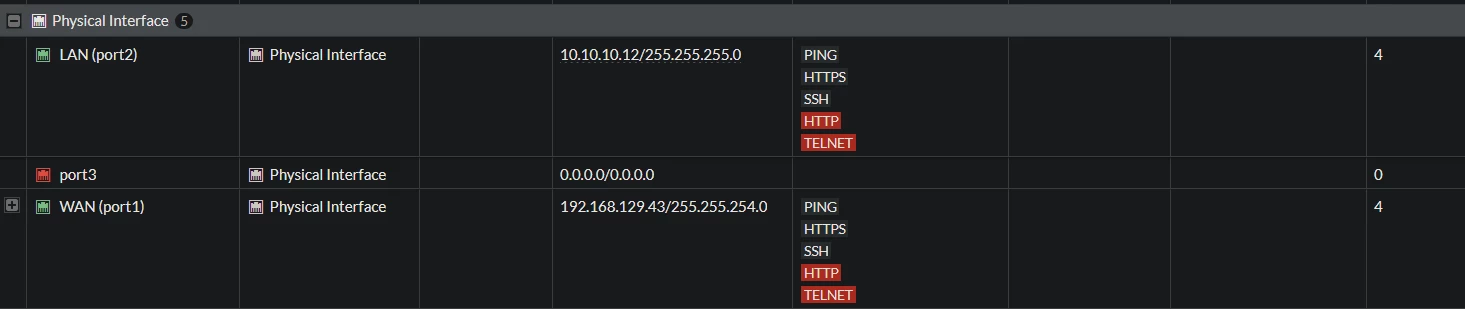

I'm on a vm with a free license to test fortigate, but i have a problem, i can't connect to the ipsec vpn, i put the screenshot for the configuration so you can see what i do Capture d'écran 2024-03-12 154850.pngCapture d'écran 2024-03-12 154829.pngCapture d'écran 2024-03-12 154702.pngCapture d'écran 2024-03-12 154642.pngCapture d'écran 2024-03-12 154604.pngCapture d'écran 2024-03-12 154543.png

5 replies

hbac
Staff
Staff
March 12, 2024
ezhupa
Staff
Staff
March 12, 2024

Can you also show the phase1 parameters on the FCT?
The IKE debug would need to be run on the FGT while reproducing the issue:
diagnose vpn ike log-filter name <phase1_name>
diagnose debug application ike -1
diagnose debug console timestamp enable
diagnose debug enable

To disable:
diagnose debug disable
diag debug reset

LucasMo
LucasMoAuthor
New Member
March 13, 2024

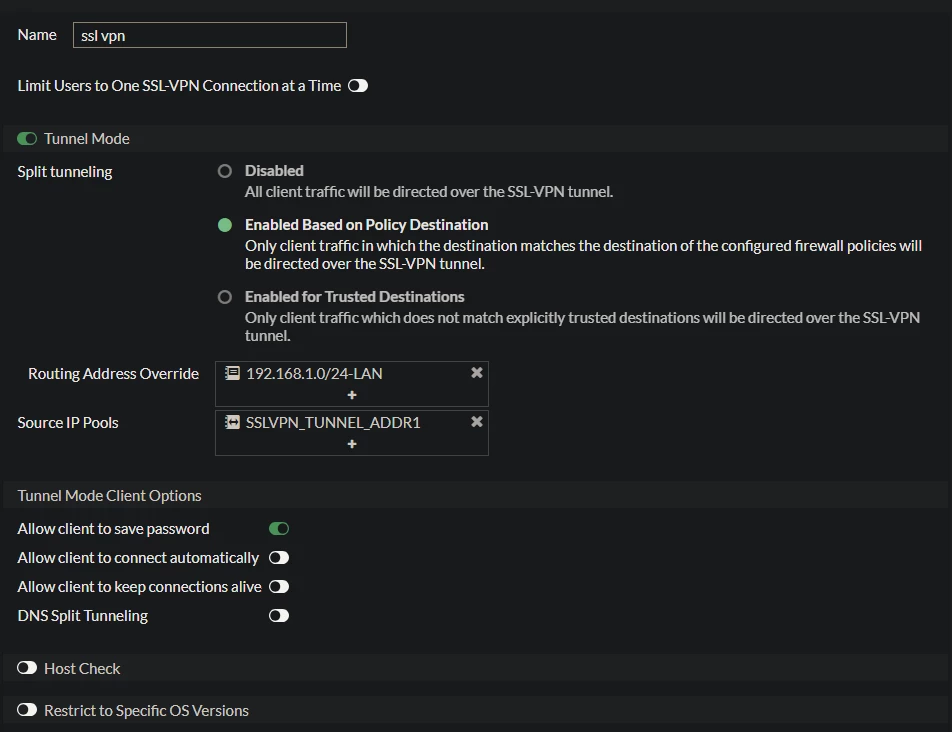

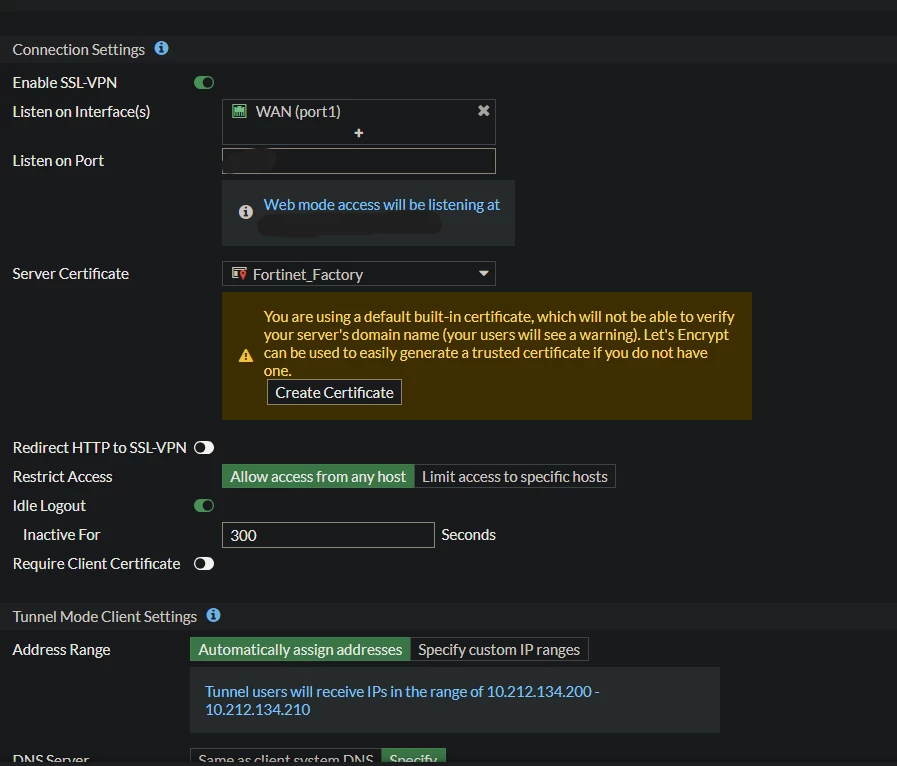

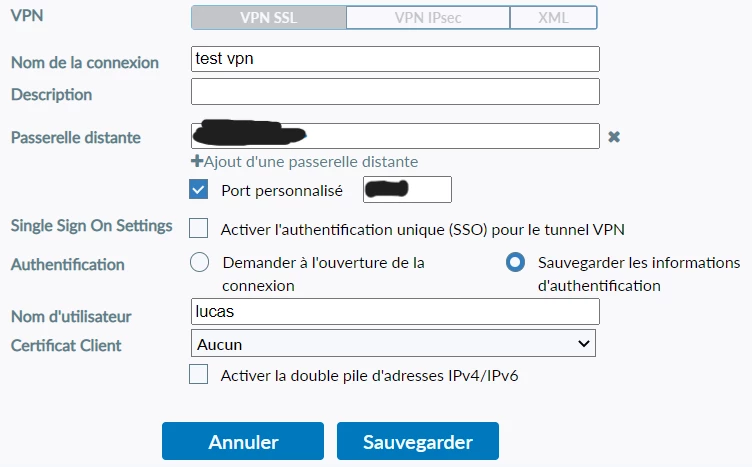

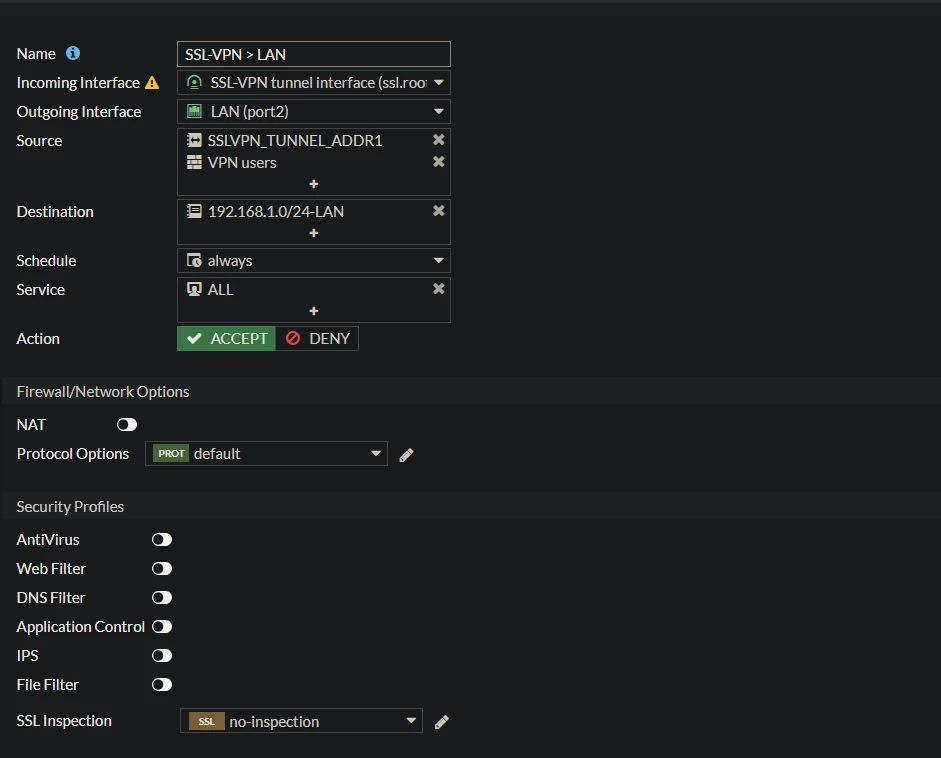

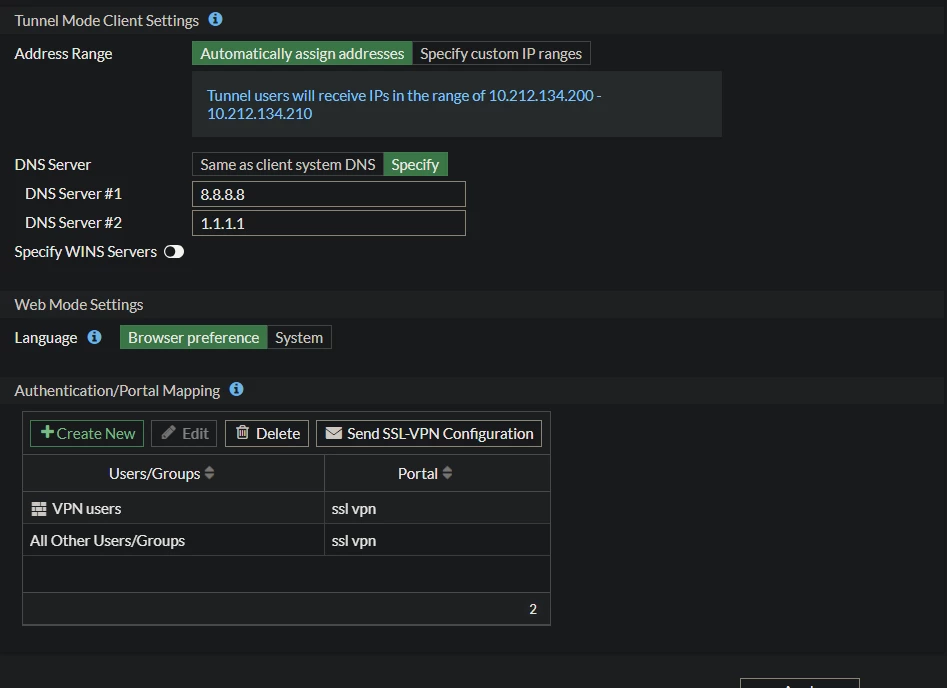

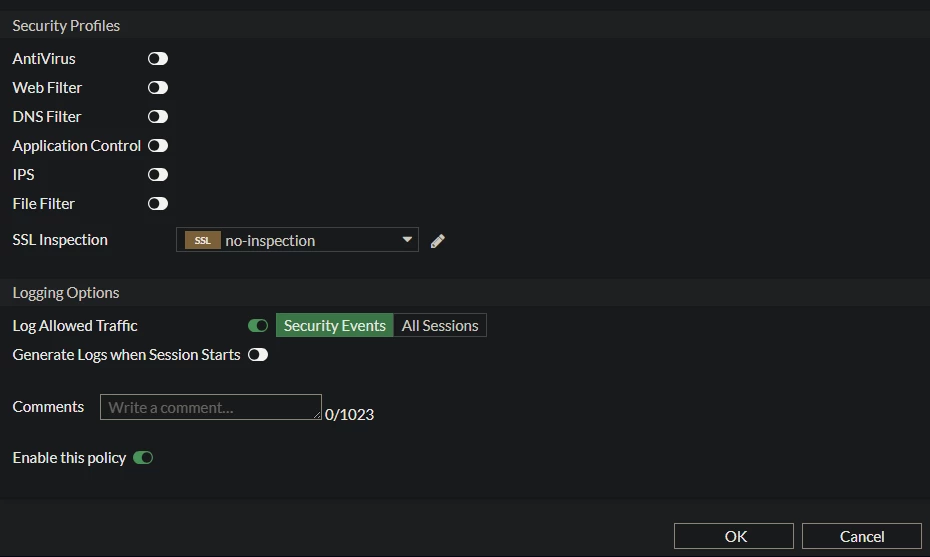

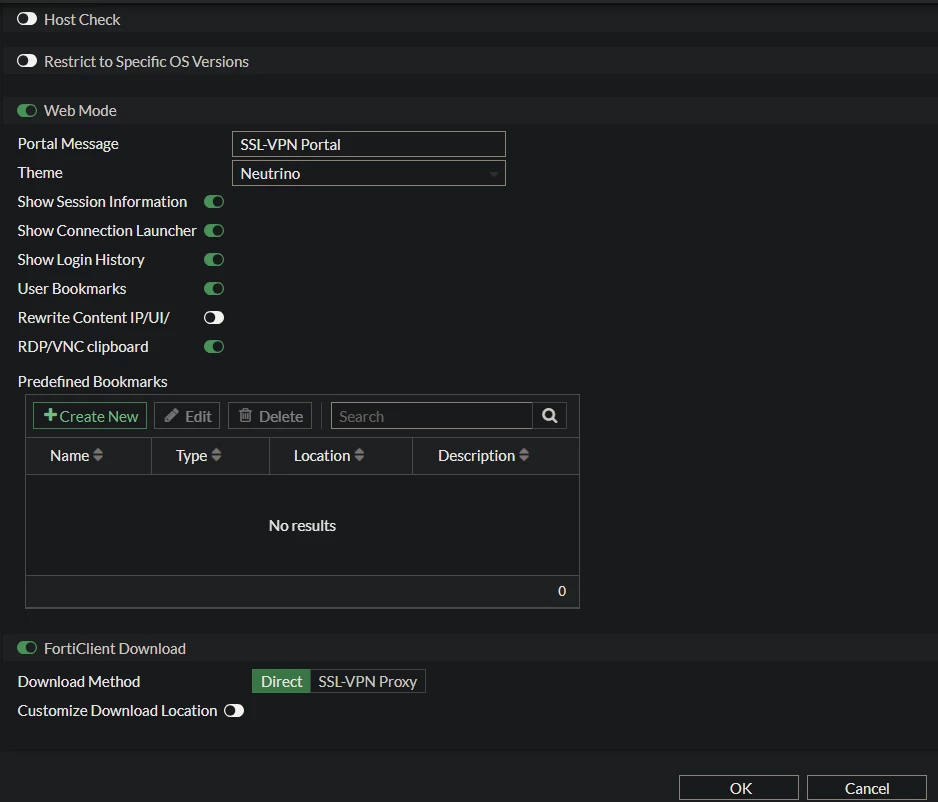

Hello again, I changed to version 7.2.7 to have access to ssl vpn, but I still have the problem that when I try to connect, it loads and then tells me "vpn connection disconnected". And when i try to connect with the browser, it say that the ssl version is not compatible. LuteRender.pngCapture d'écran 2024-03-13 101346.pngCapture d'écran 2024-03-13 101411.pngCapture d'écran 2024-03-13 101429.pngCapture d'écran 2024-03-13 101459.pngCapture d'écran 2024-03-13 101514.pngCapture d'écran 2024-03-13 101535.png

LucasMo
LucasMoAuthor
New Member
March 13, 2024

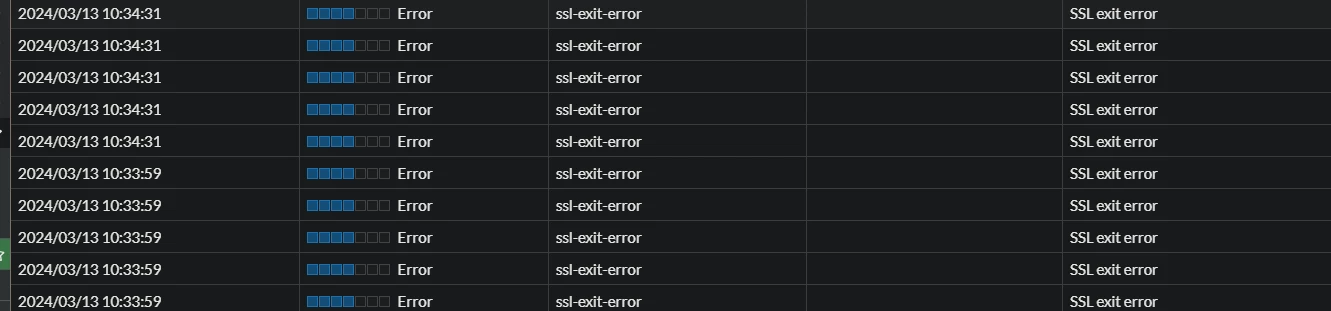

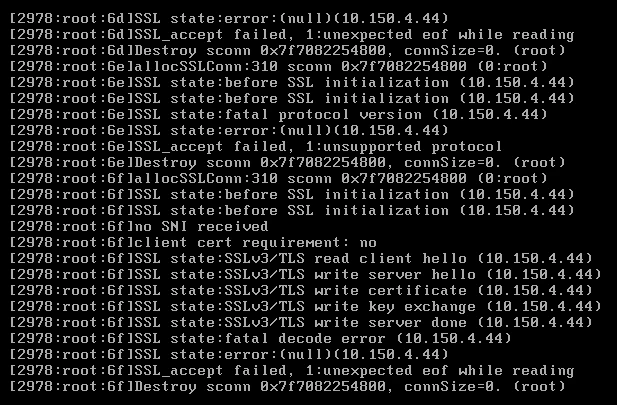

Capture d'écran 2024-03-13 103549.pngerror.png


Here is the error that I have

hbac
Staff
Staff
March 13, 2024

@LucasMo,



What happened to IPsec VPN? For the new issue, you can refer to https://community.fortinet.com/t5/FortiGate/Troubleshooting-Tip-SSL-VPN-Debugs-Error-SSL-accept-failed-1/ta-p/241021



Regards,

LucasMo
LucasMoAuthor
New Member
March 13, 2024

I stop the ipsec vpn, my boss told me to go for the ssl vpn
but this article didn't help me...

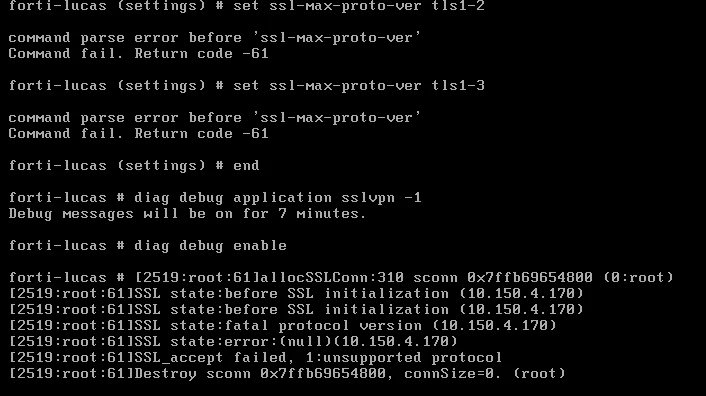

Capture d'écran 2024-03-13 141939.png

LucasMo
LucasMoAuthor
New Member
March 15, 2024

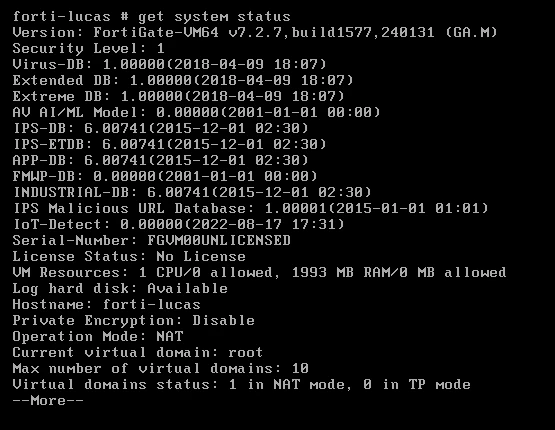

Capture d'écran 2024-03-15 180551.pngCapture d'écran 2024-03-15 180506.png

Here is the resultat

hbac
Staff
Staff
March 15, 2024

@LucasMo



You don't have a license. I believe that's the reason you can't make those changes.



Regards,

LucasMo
LucasMoAuthor
New Member
March 15, 2024

This is because i changed the pc of the vm, but when I wanted to change I had the free license
