Can't access to the internal server of fortigate from the router

  • August 11, 2022
  • 1 reply
  • 1206 views

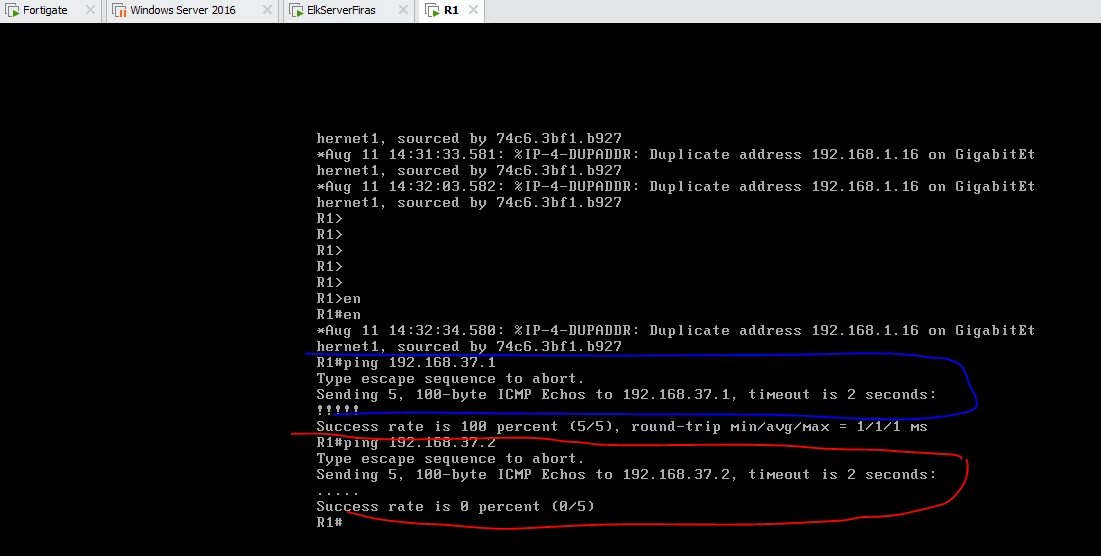

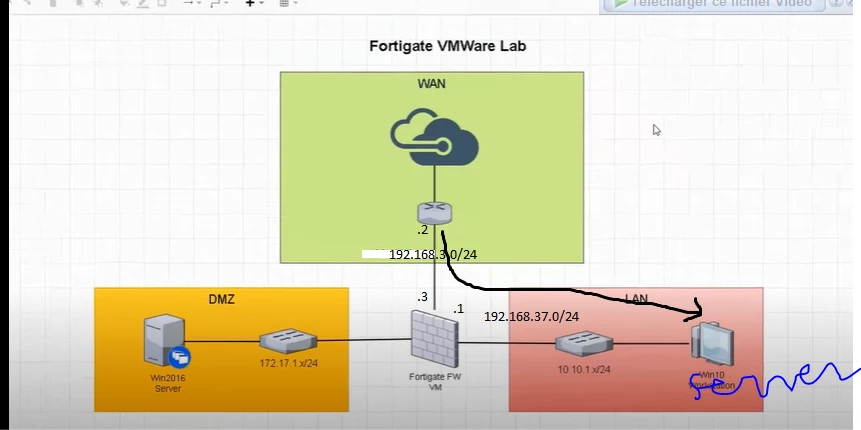

I can ping from the router to the interface of FortiGate that is connected to lan but I can't ping to the internal server and they are the two in the same network 294766800_562538495424875_9082956238751245529_n.png

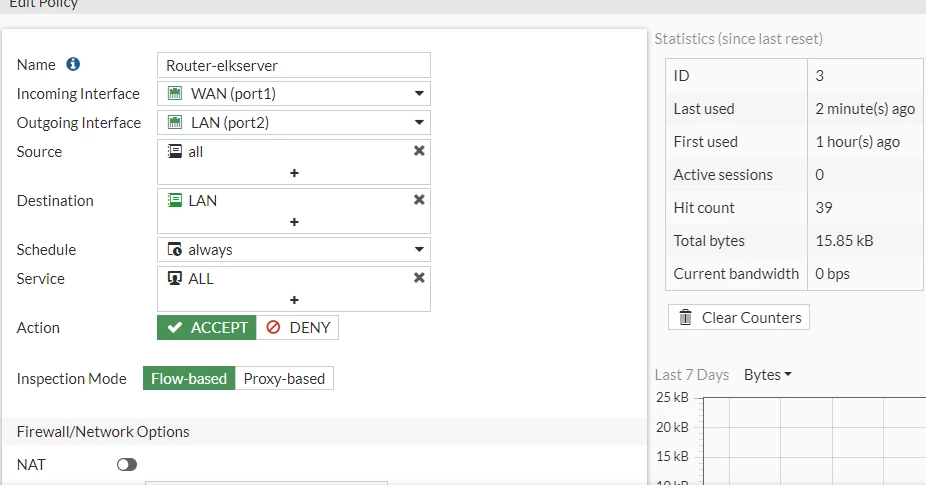

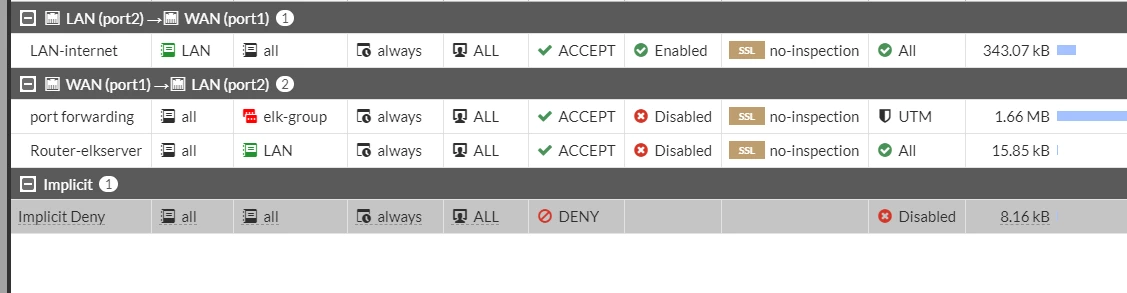

this my policys






1 reply

alif
Staff
alif
Staff
August 11, 2022

Hi @Firasbg,



Thank you for contacting Fortinet community.

Is firewall service disabled on the server?

Please run the debug flow on Fortigate as follows.



diagnose debug reset
diagnose debug flow filter addr <IP>  (can be source or dest IP)

diagnose debug flow filter proto 1
diagnose debug console timestamp enable
diagnose debug flow trace start 1000
diagnose debug enable



After performing the test, you can stop debugging;
diagnose debug disable
diagnose debug reset
