Build VLANs and each networks goes different WANs.

  • June 19, 2023
  • 3 replies
  • 1516 views

Hi.

I would like to build vlan net works.

And each goes different WANs.

Is it possible to build?

My knowledge is so poor... Could someone help me.

------------------------------------------------------------------

VLAN ID : 10

192.168.0.0 /24



VLAN ID : 20

192.168.100.0 /24



VLAN ID : 10 ===> WAN1

VLAN ID : 20 ===> WAN2

------------------------------------------------------------------



3 replies

ebilcari
Staff
ebilcari
Staff
June 19, 2023

So if I get it right, you have a FGT with a single port connected to a switch and need to configure 2 separated VLANs and use them as uplink to reach your ISP/WAN?

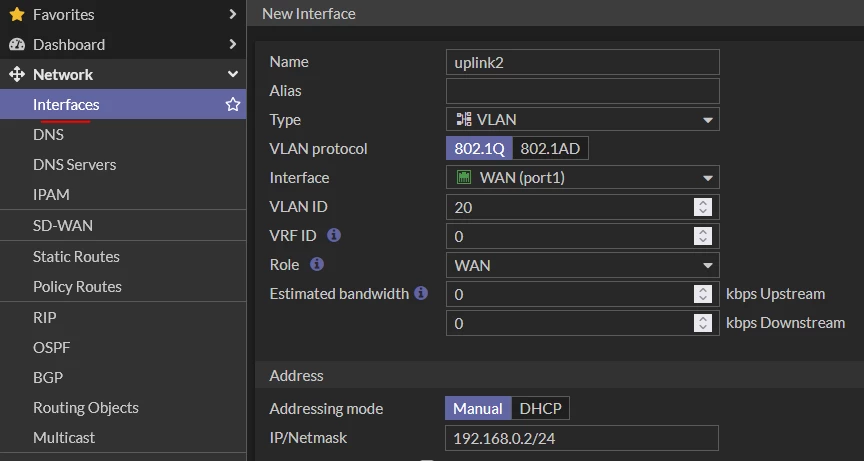

If this is the case, yes. You can create a new interface type VLAN in the WAN port and set the IP configurations:


Emirjon
FGYO
FGYOAuthor
New Member
June 19, 2023

To ebilcari

Thankyou for your reply.

I'm sorry, my explanation is bad.

Actually, I would like to built 2 VLANs in each LANs.



------------------------------------------------------------------

【VLAN ID : 10】

192.168.0.0 /24

 - LAN1

 - LAN2

 - LAN3

 - LAN4



【VLAN ID : 20】

192.168.100.0 /24

-LAN5



VLAN ID : 10 go through WAN1.

VLAN ID : 20 go through WAN2.

------------------------------------------------------------------



Is it possible to built?

or use SDWAN is necessary?

ebilcari
Staff
ebilcariAnswer
Staff
June 19, 2023

The easiest way if you don't want SDWAN capabilities is Policy routes: https://docs.fortinet.com/document/fortigate/7.4.0/administration-guide/144044/policy-routes

or this article: https://community.fortinet.com/t5/FortiGate/Technical-Tip-Policy-routes-with-multiple-ISP/ta-p/210948

Emirjon
FGYO
FGYOAuthor
New Member
June 19, 2023

Thankyou so much :)

i'll check them.
