Block files more than 20MB

  • March 22, 2017
  • 3 replies
  • 10330 views

Hi,



I am using Fortigate 200D, i want to restrict users from downloading files larger than 20MB based on policy

can someone help me step by step



Thanks and Regards

Mirza

    Best answer by neonbit

    Hi Mirza,



    There's two ways of doing this, via proxy options and via DLP.



    You can configure a new proxy option from Security Profiles > Proxy Options.



    Enable 'Block Oversized File/Email' and select 20 for the Threshold MB.



    Apply this proxy option to the policy/policies you want to limit file sizes.



    Second way is to create a DLP filter under Security Profiles > Data Leak Prevention. If you can't see Data Leak Prevention here then you can enable it under System > Feature Select. Enable DLP and click Apply to save.



    Create a new DLP profile and create a new rule. Select Files, enter 20 for file size and change action to Block. Apply this DLP profile to policies you want to block 20MB files for.



    3 replies

    neonbit
    neonbitAnswer
    New Member
    March 22, 2017

    Hi Mirza,



    There's two ways of doing this, via proxy options and via DLP.



    You can configure a new proxy option from Security Profiles > Proxy Options.



    Enable 'Block Oversized File/Email' and select 20 for the Threshold MB.



    Apply this proxy option to the policy/policies you want to limit file sizes.



    Second way is to create a DLP filter under Security Profiles > Data Leak Prevention. If you can't see Data Leak Prevention here then you can enable it under System > Feature Select. Enable DLP and click Apply to save.



    Create a new DLP profile and create a new rule. Select Files, enter 20 for file size and change action to Block. Apply this DLP profile to policies you want to block 20MB files for.



    Mirza
    MirzaAuthor
    New Member
    March 28, 2017

    Thanks i tried but it's doesn't work

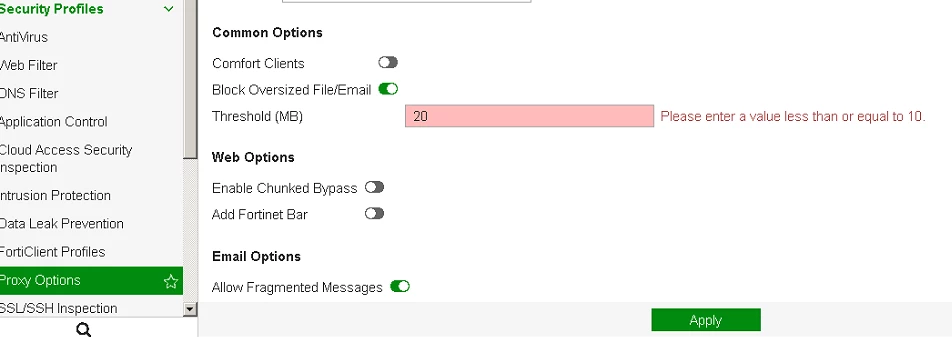

    default value is only 10 i mean i can change 10 and less than only

    hmtay_FTNT
    Staff
    Staff
    March 31, 2017

    Mirza,



    What is your FortiOS version? I tested on my 5.4.4 and I could go up to 20,000 with no error.
