Best practice solution for setup of IPSec VPN behind two NAT devices

Hi,

You can have redundant vpn setup, this doc might be helpful https://docs.fortinet.com/document/fortigate/6.2.10/cookbook/432685/manual-redundant-vpn-configuration

Best regards,

Jin

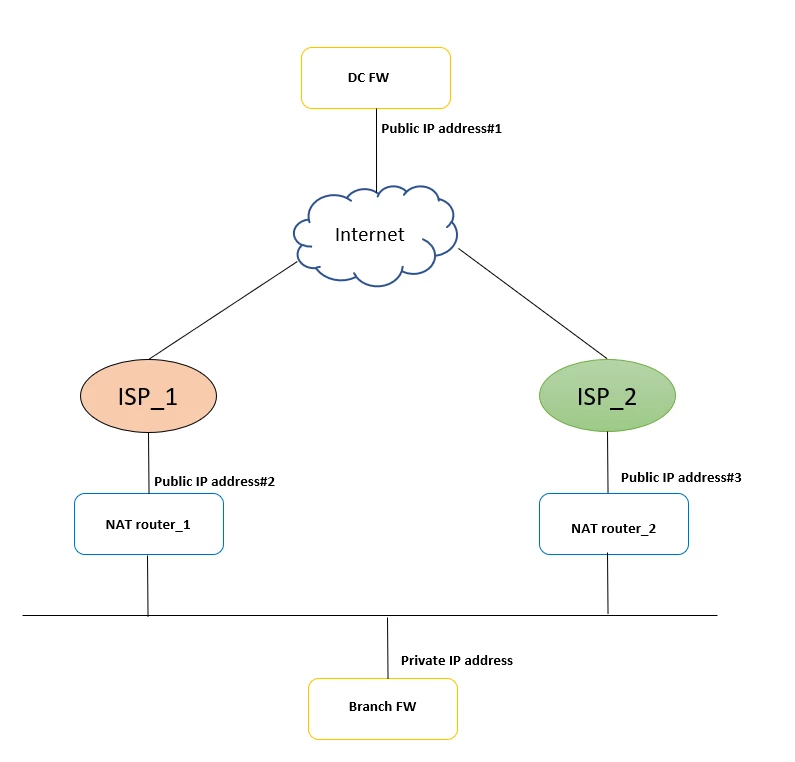

If we consider that your network remains exactly as depicted on your diagram, there is probably nothing wrong with just configuring a single IPsec tunnel per ISP link on the remote site. For as long as you keep NAT-T enabled all should work just fine.

You then just need to decide on your traffic distribution and fail-over behavior. You can configure the behavior manually with static or policy routes, dynamic routing or perhaps a bit more dynamically with SD-WAN.

If you are not too familiar with any of this, don't worry. You can try the FortiOS built-in SD-WAN wizard that will configure it all for you. In case you need to troubleshoot the functionality afterwards, it will probably be most efficient to open a support ticket.

HTH,

Boris

Hello,

You can follow the below article if you want to use the SDWAN with this setup to manage the VPN. This article is having similar setup as yours.

https://community.fortinet.com/t5/FortiGate/Technical-Tip-Configure-IPsec-VPN-with-SD-WAN/ta-p/209840

Regards,

Vsahu
