Hi, I would want to ask a question on the issue that was raised earlier.

I have two wan lines, I have set up both tunnels on WAN1 I'm not sure if his setup is accurate. Should one tunnel be installed in Wan 1 and the other tunnel in Wan 2?



Wan AWS.png


Still, I have one of them tunnelled in shut down. The problem is that the client from the SAP server does not reach an AWS server, but the person from the AWS server reaches the SAP server for my client. Any thoughts?

show system interface "TO AWS 2"

config system interface

edit "TO AWS 2"

set vdom "root"

set ip 169.254.85.6 255.255.255.255

set allowaccess ping

set type tunnel

set tcp-mss 1379

set remote-ip 169.254.85.5 255.255.255.252

set snmp-index 69

set interface "wan1"

set mtu-override enable

set mtu 1427

diagnose debug enable

FortiGate1 # diagnose debug flow filter daddr 169.254.85.5

FortiGate1 # diagnose debug flow trace start 1

FortiGate1 # id=65308 trace_id=1 func=print_pkt_detail line=5795 msg="vd-root:0 received a packet(proto=1, 169.254.85.6:83->169.254.85.5:2048) tun_id=0.0.0.0 from local. type=8, code=0, id=83, seq=888."

id=65308 trace_id=1 func=resolve_ip_tuple_fast line=5883 msg="Find an existing session, id-03871a2d, original direction"

id=65308 trace_id=1 func=ipsecdev_hard_start_xmit line=669 msg="enter IPSec interface TO AWS 2, tun_id=0.0.0.0"

id=65308 trace_id=1 func=_do_ipsecdev_hard_start_xmit line=229 msg="output to IPSec tunnel TO AWS 2 vrf 0"

id=65308 trace_id=1 func=esp_output4 line=896 msg="IPsec encrypt/auth"

id=65308 trace_id=1 func=ipsec_output_finish line=629 msg="send to 91.1X.X.X via intf-wan1"

execute ping 169.254.85.5

PING 169.254.85.5 (169.254.85.5): 56 data bytes

64 bytes from 169.254.85.5: icmp_seq=0 ttl=254 time=35.4 ms

64 bytes from 169.254.85.5: icmp_seq=1 ttl=254 time=35.7 ms

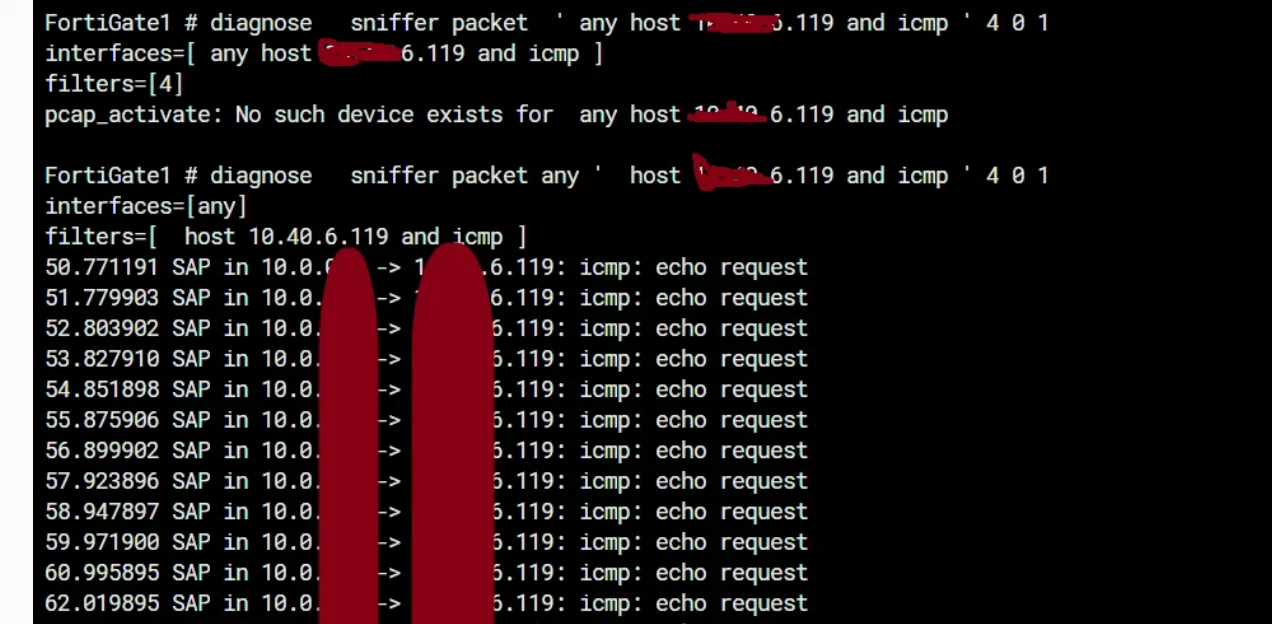

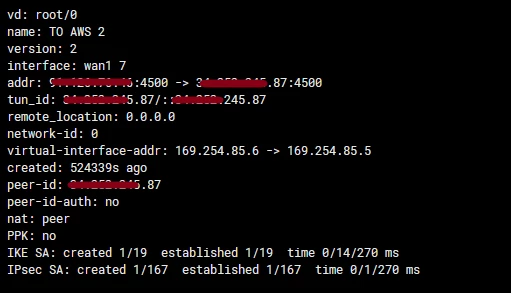

AWS _01.png



Best answer by DPadula

The first diagnose command is what you need to prove to the AWS team that FGT is sending the traffic but no reply is seen. You can ask them to do a packet capture on AWS side and confirm they can see the ICMP request and if the server is sending a ICMP reply.

6 replies

Anatoli
AnatoliAuthor
Explorer III
June 28, 2024

Hi

anyone can i help me ?

DPadula
Staff & Editor
DPadula
Staff & Editor
June 28, 2024

Hi Anatoli,

You can have both tunnel on the same WAN1 or have each tunnel on each WAN interface.
The question is, what you are trying to achieve?
Is WAN1 and WAN2 both active or WAN2 is just a backup of WAN1 and take over only when wan1 is down?
I

    Anatoli
    AnatoliAuthor
    Explorer III
    June 28, 2024

    Hi @DPadula  thanks for your reply .



    • Wan 2 is  just a backup take over when wan1 is down .



    • The goal is to connect my customer's SAP system to an AWS servers.

    AWS servers 10.40.6.0 must be reached using the customer's fortigate IP address of 10.0.0.0.

    For instance, the customer cannot reach from SAP server 10.0.0.5 to AWS server 10.40.6.119.

    From AWS 10.40.6.119 to SAP server 10..0.0.5 it is Pinging




      DPadula
      Staff & Editor
      DPadula
      Staff & Editor
      June 29, 2024

      Because you said that traffic from the server 10.40.6.119 can reach 10.0.0.5 we show that tunnels is up and rule from AWS to SAP is correct. You should check and confirm if you do have a rule from SAP to AWS. The sniffer show the traffic arriving from the SAP server via SAP interface, but we don't see a ICMP echo request out on the tunnel interface. Sounds like missing rule or wrong rule configuration.
      You can use diag debug flow trace to confirm that.

        Anatoli
        AnatoliAuthor
        Explorer III
        July 1, 2024

        Yes it is correct from 10.0.0.5 server lan citrix no ping to 10.40.6.119 server aws  . From 10.40.6.119 to 10.0.0.5 ping is ok



        I attach you the test



        FortiGate1 # diagnose debug flow filter saddr 10.0.0.5

        FortiGate1 # diagnose debug flow filter daddr 10.40.6.119

        FortiGate1 # diagnose debug flow trace start 100

        FortiGate1 # diagnose debug enable

        FortiGate1 # execute ping-options source 10.0.0.5

        FortiGate1 # execute ping 10.40.6.119
        id=65308 trace_id=102 func=print_pkt_detail line=5795 msg="vd-root:0 received a packet(proto=1, 10.0.0.5:156->10.40.6.119:2048) tun_id=0.0.0.0 from local. type=8, code=0, id=156, seq=0."
        id=65308 trace_id=102 func=init_ip_session_common line=5980 msg="allocate a new session-049ff447, tun_id=0.0.0.0"
        id=65308 trace_id=102 func=ipsecdev_hard_start_xmit line=669 msg="enter IPSec interface TO AWS 2, tun_id=0.0.0.0"
        id=65308 trace_id=102 func=_do_ipsecdev_hard_start_xmit line=229 msg="output to IPSec tunnel TO AWS 2 vrf 0"
        id=65308 trace_id=102 func=esp_output4 line=896 msg="IPsec encrypt/auth"
        id=65308 trace_id=102 func=ipsec_output_finish line=629 msg="send to X.X.76.41 via intf-wan1"
        id=65308 trace_id=103 func=print_pkt_detail line=5795 msg="vd-root:0 received a packet(proto=1, 10.0.0.5:156->10.40.6.119:2048) tun_id=0.0.0.0 from local. type=8, code=0, id=156, seq=1."
        id=65308 trace_id=103 func=resolve_ip_tuple_fast line=5883 msg="Find an existing session, id-049ff447, original direction"
        id=65308 trace_id=103 func=ipsecdev_hard_start_xmit line=669 msg="enter IPSec interface TO AWS 2, tun_id=0.0.0.0"
        id=65308 trace_id=103 func=_do_ipsecdev_hard_start_xmit line=229 msg="output to IPSec tunnel TO AWS 2 vrf 0"
        id=65308 trace_id=103 func=esp_output4 line=896 msg="IPsec encrypt/auth"
        id=65308 trace_id=103 func=ipsec_output_finish line=629 msg="send to X.X.76.41 via intf-wan1"
        id=65308 trace_id=104 func=print_pkt_detail line=5795 msg="vd-root:0 received a packet(proto=1, 10.0.0.5:156->10.40.6.119:2048) tun_id=0.0.0.0 from local. type=8, code=0, id=156, seq=2."
        id=65308 trace_id=104 func=resolve_ip_tuple_fast line=5883 msg="Find an existing session, id-049ff447, original direction"
        id=65308 trace_id=104 func=ipsecdev_hard_start_xmit line=669 msg="enter IPSec interface TO AWS 2, tun_id=0.0.0.0"
        id=65308 trace_id=104 func=_do_ipsecdev_hard_start_xmit line=229 msg="output to IPSec tunnel TO AWS 2 vrf 0"
        id=65308 trace_id=104 func=esp_output4 line=896 msg="IPsec encrypt/auth"
        id=65308 trace_id=104 func=ipsec_output_finish line=629 msg="send to X.X.76.41 via intf-wan1"
        id=65308 trace_id=105 func=print_pkt_detail line=5795 msg="vd-root:0 received a packet(proto=1, 10.0.0.5:156->10.40.6.119:2048) tun_id=0.0.0.0 from local. type=8, code=0, id=156, seq=3."
        id=65308 trace_id=105 func=resolve_ip_tuple_fast line=5883 msg="Find an existing session, id-049ff447, original direction"
        id=65308 trace_id=105 func=ipsecdev_hard_start_xmit line=669 msg="enter IPSec interface TO AWS 2, tun_id=0.0.0.0"
        id=65308 trace_id=105 func=_do_ipsecdev_hard_start_xmit line=229 msg="output to IPSec tunnel TO AWS 2 vrf 0"
        id=65308 trace_id=105 func=esp_output4 line=896 msg="IPsec encrypt/auth"
        id=65308 trace_id=105 func=ipsec_output_finish line=629 msg="send to X.X.76.41 via intf-wan1"
        id=65308 trace_id=106 func=print_pkt_detail line=5795 msg="vd-root:0 received a packet(proto=1, 10.0.0.5:156->10.40.6.119:2048) tun_id=0.0.0.0 from local. type=8, code=0, id=156, seq=4."
        id=65308 trace_id=106 func=resolve_ip_tuple_fast line=5883 msg="Find an existing session, id-049ff447, original direction"
        id=65308 trace_id=106 func=ipsecdev_hard_start_xmit line=669 msg="enter IPSec interface TO AWS 2, tun_id=0.0.0.0"
        id=65308 trace_id=106 func=_do_ipsecdev_hard_start_xmit line=229 msg="output to IPSec tunnel TO AWS 2 vrf 0"
        id=65308 trace_id=106 func=esp_output4 line=896 msg="IPsec encrypt/auth"
        id=65308 trace_id=106 func=ipsec_output_finish line=629 msg="send to X.X.76.41 via intf-wan1"
        PING 10.40.6.119 (10.40.6.119): 56 data bytes

        --- 10.40.6.119 ping statistics ---
        5 packets transmitted, 0 packets received, 100% packet loss

        amrit
        Staff & Editor
        amrit
        Staff & Editor
        June 30, 2024

        you can use these additional steps to verify the traffic

        1. Verify the routing details on fortigate for the IP 10.40.6.119

        "get router info routing-table details 10.40.6.119" -- in the output of this command I expect  the outgoing interface as your IPSec tunnel to AWS

        If the route is present and is the best route to 10.40.6.119 then

        Verify the policy from the incoming interface to the outgoing tunnel interface.

        To verify the incoming interface you can again use "get router info routing-table details 10.0.0.5". Also make sure the policy should have correct source and destination subnets





          Anatoli
          AnatoliAuthor
          Explorer III
          July 1, 2024

          Hi @amrit  so thanks for your reply

          I attach  to you the tester

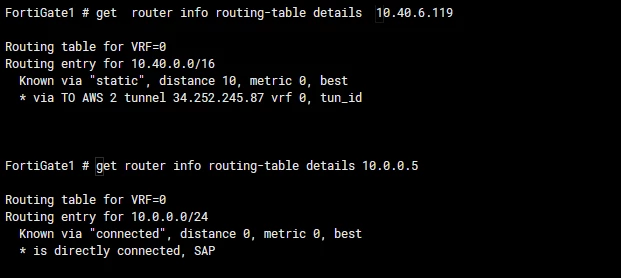

          Fortigate get.png

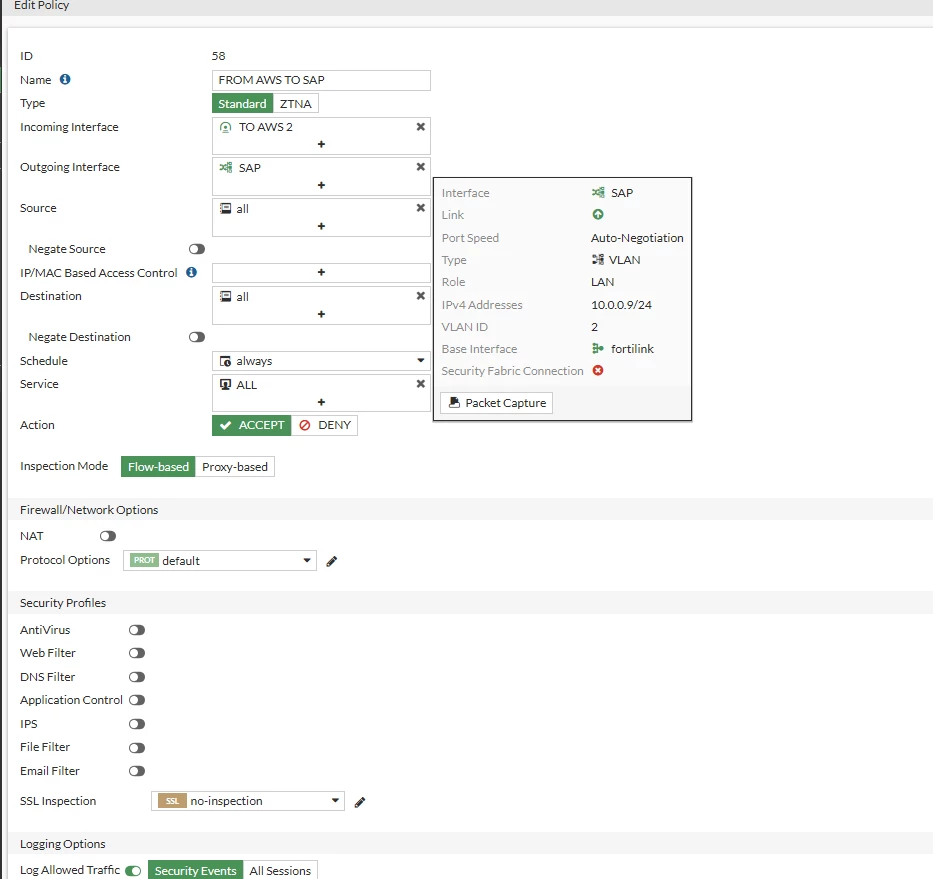

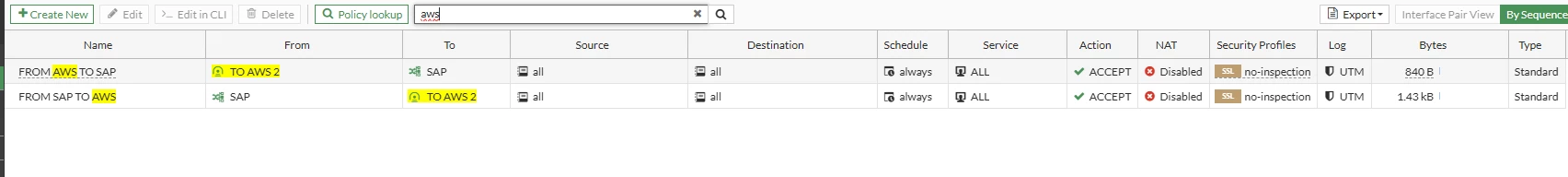

          policy aws1.pngpolicy aws 2.png

          amrit
          Staff & Editor
          amrit
          Staff & Editor
          July 4, 2024

          The following sniffer shows that traffic is getting forwarded to the AWS tunnel, so I don't think the problem is with the Fortigate. You may need to check with the AWS

          FortiGate1 # diagnose  sniffer packet  any 'host 10.0.0.5 and   icmp  ' 4 0
          interfaces=[any]
          filters=[host 10.0.0.5 and   icmp  ]
          5.815189 SAP in 10.0.0.5 -> 10.40.6.58: icmp: echo request
          5.815262 TO AWS 2 out 10.0.0.5 -> 10.40.6.58: icmp: echo request



          Check the output of the following commands- this is to verify if the traffic is being sent

          In SAP to AWS policy disbale the asic

          config firewall policy

          edit <id>

          set auto-asic-offload disable

          end

          end



          di de flow filter addr 10.40.6.58

          di de flow filter prot 1

          di de flow show function-name en

          di de flow trace start 100

          di de en





            Anatoli
            AnatoliAuthor
            Explorer III
            July 5, 2024

            I would want to express my gratitude for your assistance. @amrit @DPadula

            The problem was resolved. The AWS route database needed to be cleaned, and then the ping succeeded.
