AWS Fortigate VM DNAT is not working.
Hi guys,
I am not able to pull off a DNAT to access from external internet access to my web service hosted in the server in private subnet managed by fortigate.
I am new into this networking area, could you guys help me out ?
This is what I have been trying.
I am accessing with web browser like http://<FGT-Public-Ip>:3002 and also doing telnet <FGT-Public-Ip> 3002.... both time out.
Traffic is reaching my fortigate, verified with
diagnose sniffer packet port1 'tcp and port 3002' results below:
-----------------------------------------------------------------------------------------------
XXXXXXXX # diagnose sniffer packet port1 'tcp and port 3002'
Using Original Sniffing Mode
interfaces=[port1]
filters=[tcp and port 3002]
3.351276 XXX.XXX.9.57.59128 -> 10.0.0.10.3002: syn 3472599031
3.351345 XXX.XXX.9.57.59128 -> 10.0.0.10.3002: syn 89282952
Redirects to interface port1 private ip address port 3002
-----------------------------------------------------------------------------------------------
Ran sniffer packet for port2 where it should be forwarded the traffic....
XXXXXXXX # diagnose sniffer packet port2 'tcp and port 3002'
Using Original Sniffing Mode
interfaces=[port2]
filters=[tcp and port 3002]
Nothing displays here after telnet or http request in browser.
-----------------------------------------------------------------------------------------------

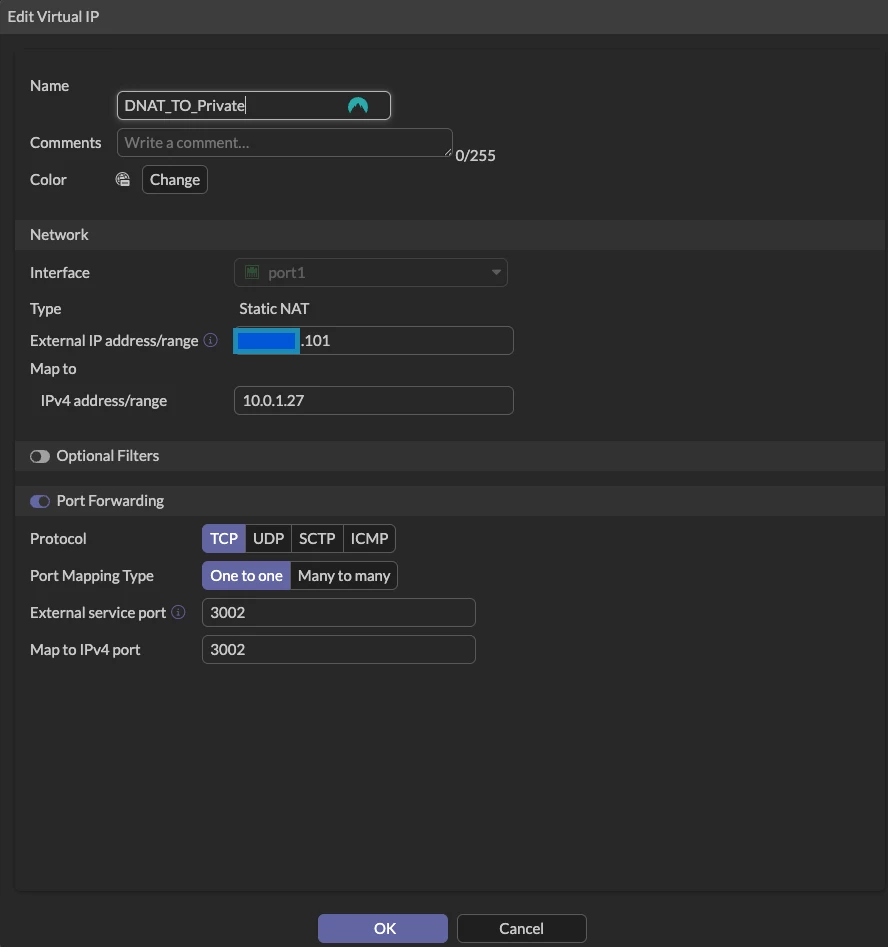

This is my VIP configuration, external ip address is the public ip address (aws elastic ip) of fgt which i will be accessing and which is mapped to phyisical interface fgt port1 10.0.0.10... 10.0.1.27 is the private server in the private subnet.

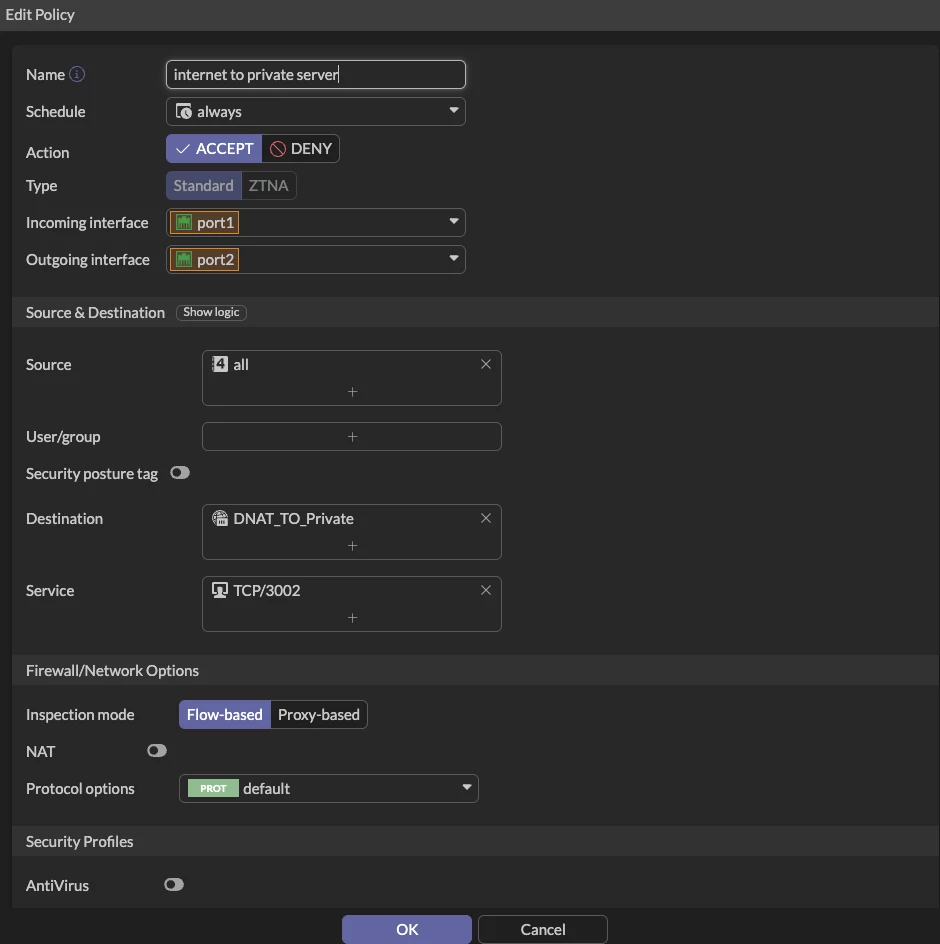

This below is my Firewall Policy allowing traffic from port1 to the VIP

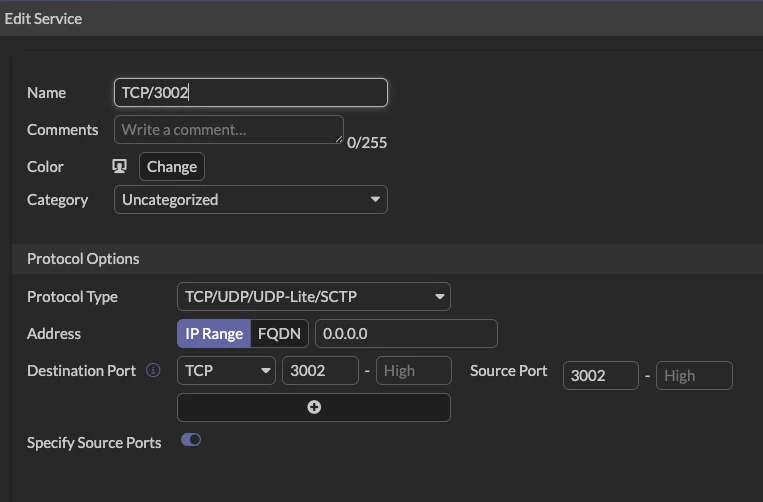

This below is the TCP/3002 Service... originally i had set up to ALL services, but still did not work.
interfaces
port1 -> 10.0.0.10
port2 -> 10.0.1.10
Subnets
public subnet 10.0.0.0/24 (my fgt vm is placed here)
private subnet 10.0.1.0/24
Resources
Server -> 10.0.1.27 (Placed in 10.0.1.0/24 subnet)
Static route 1:
Destination: 10.0.1.0/24
Gateway IP: 0.0.0.0 (managed by fgt)
Interface: port2
More context:
The service itself is literally a docker with nginx mapped 0.0.0.0:3002 -> ::80
Executed telnet from fortigate cli and works so, service is accessible from fortigate..
XXXXXXXXX # execute telnet 10.0.1.27 3002
Trying 10.0.1.27...
Connected to 10.0.1.27.
I have a SSL-VPN tunnel managed by fgt as 10.0.3.0/24
and successfully I am able to do telnet 10.0.1.27 3002 or even also curl or from the browser http://10.0.1.27:3002
