Question

auto-isl-port-group best practice

  • January 24, 2024
  • 6 replies
  • 13878 views

Hi all,

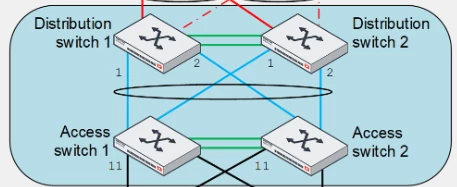

Wonder if someone can help me understand the use case for the auto-isl-port-group command on FortiSwitch. Taking the below diagram as an example, if the the distribution layer layer is already configured for MCLAG ICL when the access layer switches are attached the distribution layer switches will automatically establish automatically a trunk as per below:



edit "_FlInK1_MLAG0_"
set mode lacp-active
set auto-isl 1
set mclag enable
set members "port29" "port30"





Network Diagram.png



Since these trunks are automatically established when connecting switches to an exiting MCLAG ICL peer group what is the use case for the auto-isl-port-group command and what difference is there in letting the trunks establish automatically rather than manually setting the auto-isl-port-group?



Thanks in advance.

Dan_Eng52

6 replies

Anthony_E
Staff
Anthony_E
Staff
January 29, 2024

Hello Dan,


Thank you for using the Community Forum. I will seek to get you an answer or help. We will reply to this thread with an update as soon as possible.


Thanks,

Best Regards
    Dan_Eng52
    Dan_Eng52Author
    Explorer III
    January 29, 2024

    Hi Anthony_E,



    I've been trying to find an answer but haven't managed to find anything as of yet so that would be greatly appreciated.



    Thanks,
    Dan.

    Anthony_E
    Staff
    Anthony_E
    Staff
    January 29, 2024

    Hello Dan,



    We are contacting experts to provide the best answer :)!



    Regards,

    Best Regards
    Anthony_E
    Staff
    Anthony_E
    Staff
    January 30, 2024

    Hi Dan,



    Did you already have a look at this document?:

    https://docs.fortinet.com/document/fortiswitch/6.4.2/devices-managed-by-fortios/617516/network-topologies



    Tell me if it is helping. If not, we will continue to look for an answer.



    Regards,

    Best Regards
      Dan_Eng52
      Dan_Eng52Author
      Explorer III
      January 30, 2024

      Hi Anthony,



      Yes, it was actually that document that sparked my curiosity but did not answer my question. If you're able to find an answer for me, that would be greatly appreciated.



      Regards,

      Dan.



      Anthony_E
      Staff
      Anthony_E
      Staff
      February 1, 2024

      Oh ok!

      Let me find an FSW expert!

      Best Regards
      sachitdas_FTNT
      Staff
      sachitdas_FTNT
      Staff
      February 1, 2024

      Hi Dan,

      We configure auto-isl-port-group when we configure multi tier mclag setup. For eg. in tier1 and tier2 mclag, we will configure auto-isl-port-group on tier1 mclag FSWs. In the auto-isl-port-group, we will add the ports as member that are connecting to tier2 mclag FSWs.

      Technical Tip: Three-tier MCLAG configuration on m... - Fortinet Community



        Dan_Eng52
        Dan_Eng52Author
        Explorer III
        February 1, 2024

        Hi Sachit Das,



        Thanks for your response.



        What does this achieve compared to leaving the MCLAG tiers automatically establish their trunks automatically? If I have two tiers of MCLAG peer switches already setup and I connect them together, they will automatically create the trunks as below:

        edit "_FlInK1_MLAG0_"
        set mode lacp-active
        set auto-isl 1
        set mclag enable
        set members "port29" "port30"



        If I already have a multi tier MCLAG setup with the above automatically created trunks, is there any merit or difference to issuing the auto-isl-port-group and would this cause any issues on a live environment?



        Am I correct in stating that if we issue the auto-isl-port-group the name must match across the MCLAG peer switches but the ports themselves in that group will be local to that device?



        Many thanks in advance,

        Dan.

          sachitdas_FTNT
          Staff
          sachitdas_FTNT
          Staff
          February 1, 2024

          Hi Dan, it will create STP loops and inconsistency in the network if you do not configure auto-isl-port-group (as per design). Yes, names should be the same on both MCLAG-ICL peers. This setting instructs the switches to group ports from MCLAG peers together into one MCLAG when the inter-switch link (ISL) is formed.



            Dan_Eng52
            Dan_Eng52Author
            Explorer III
            March 17, 2024

            Hi Gatlinllon,



            This will need to be configured only on links connecting to downstream tiers if you have a multi-tier deployment, the auto-isl-group name must match among MCLAG-ICL peers. This setting instructs the switches to group ports from MCLAG peers together into one MCLAG when the inter-switch link (ISL) is formed.



            In the initial phase of deployment I didn't have this setup and the FortiSwitch devices established their ISL's automatically. Although this is not recommended by design this did not cause any STP issue or inconsistencies. I have since however, resolved this by issuing the below custom command on the FortiGate switch-controller since I have a full-stack deployment.



            config switch auto-isl-port-group
            edit tier-2
            set members port29 port30
            end


            config switch-controller custom-command
            edit "auto-isl-port-group-tier-2"
            set command "config switch auto-isl-port-group %0a edit tier-2 %0a set members port29 port30 %0a end %0a"
            end



            In your case if you are connecting multi-tiers, this is required on the downstream links. Without it, there is a possibility of causing STP issue and inconsistencies which could affect network and since it is a recommendation and easy to implement.

            If you're not implementing multi-tier MCLAG you do not need to worry about this.



            Thanks,

            Dan.
