authentication with Azure AD as a SAML IdP

  • January 14, 2022
  • 1 reply
  • 4551 views

Hi

My Fortigate device OS version is 7.0.2.

When I configure Azure AD SAML authentication with the document

https://docs.fortinet.com/document/fortigate/7.0.2/administration-guide/33053/outbound-firewall-authentication-with-azure-ad-as-a-saml-idp

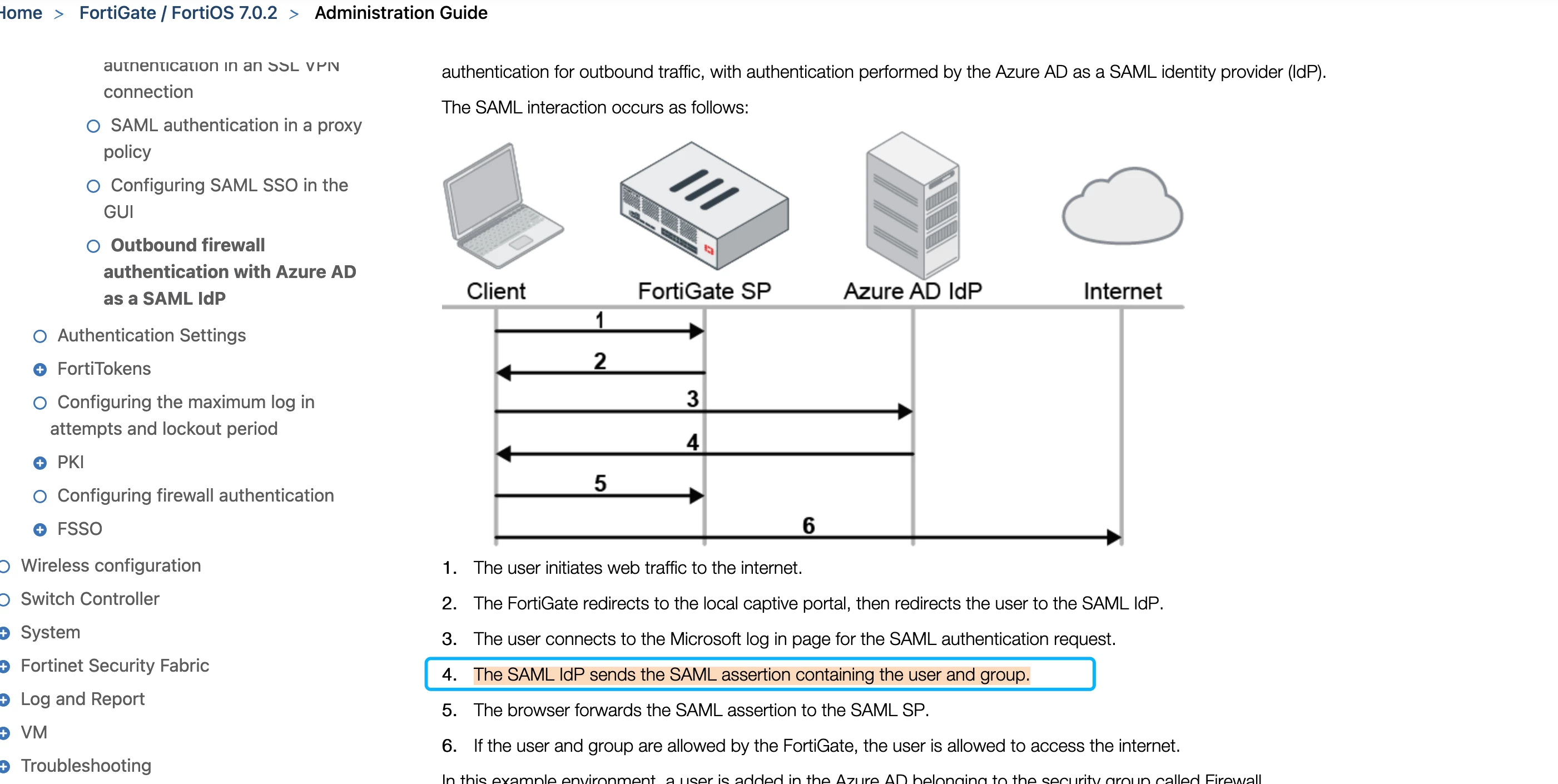

333333

Go to step 4,

  • The SAML IdP sends the SAML assertion containing the user and group.

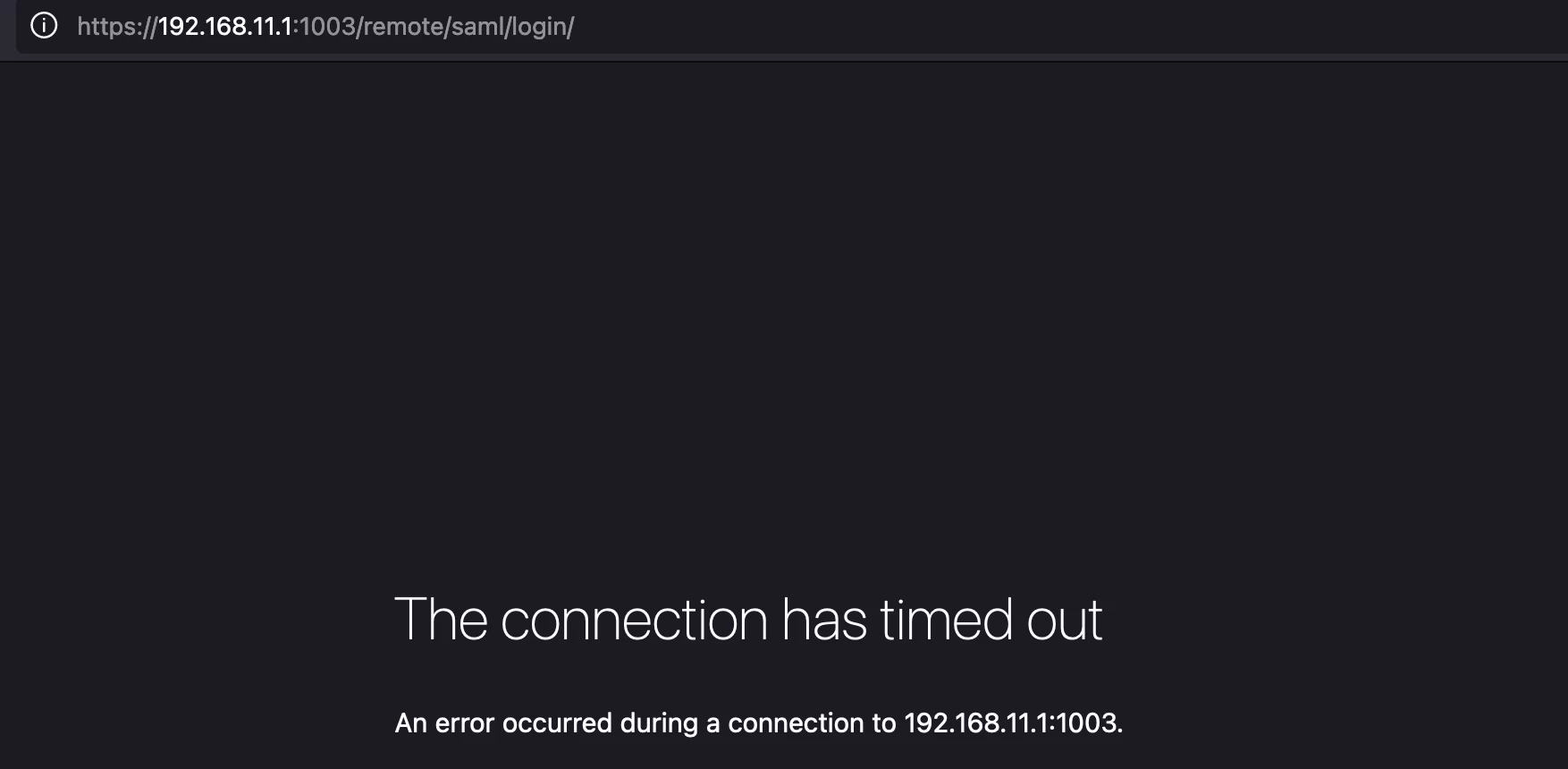

After the browser log in to azure, it seems that it can't return to FortiGate, Whether my identifier (entity ID) uses public IP or private IP.  it aways say:

The connection has timed out

An error occurred during a connection to 192.168.11.1:1003.






Who can help me the possible problems?



Thanks a  lot







Best answer by Anonymous_User

Hello @PaulChen ,





Welcome to Fortinet community and Thank you for your post. Hopefully, you've been keeping safe and doing well!

Could you please run the saml debug when the issue is replicated.

#diagnose debug application httpsd -1
#diagnose debug application samld -1
#optionally# diagnose debug console timestamp enable
#diagnose debug enable
Regards

1 reply

A
Anonymous_UserAnswer
Contributor
January 17, 2022

Hello @PaulChen ,





Welcome to Fortinet community and Thank you for your post. Hopefully, you've been keeping safe and doing well!

Could you please run the saml debug when the issue is replicated.

#diagnose debug application httpsd -1
#diagnose debug application samld -1
#optionally# diagnose debug console timestamp enable
#diagnose debug enable
Regards
    PaulChen
    PaulChenAuthor
    New Member
    January 18, 2022

    Hi Ash , Thanks for your suggestion,  I solved this problem by adding a source port to the firewall policy.



    Thanks

    Paul Chen

      Cristianonovaes
      Cristianonovaes
      New Member
      April 28, 2022

      Hi PaulChen, Could you please detail more how you added this source port? I have the same problem!

      tks,
