Authentication Failure Radius Server showing Can't contact radius server

Forum|Forum|1 year ago
June 22, 2025
10 replies
2712 views

Hello Team,

We have HA device both devices are login via Radius server, however we are facing issue with secondary firewall not able to login it shows Authentication Failure but on primary firewall we can be able to login the firewall without any issue. as of now workaround we are using that reboot the secondary firewall and after that it works fine but after couple of days issue raise again showing Authentication Failure. we tried to use set source-ip but nothing worked only solution we can afford as of now REBOOT.

Can you please look into this serious issue

Thanks

Best answer by amitrohilla07

Fortinet has officially confirmed this is a known bug affecting all FortiGate devices. The issue is recorded with engineering and is expected to be resolved in version 7.4.9, scheduled for release in September 2025.

Current Workaround

Login to the secondary FortiGate using admin credentials

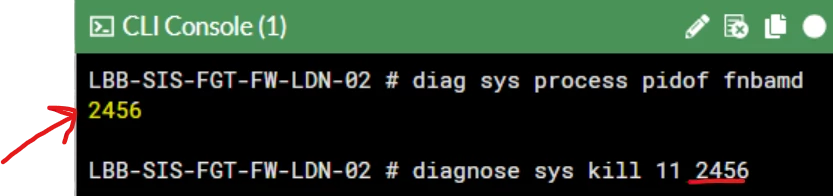

Identify the PID of the fnbamd process by running
diagnose sys process pidof fnbamd
Kill the process using:
diagnose sys kill 11 <PID>
Replace <PID> with the actual process ID (e.g., 2456)Please note the PID will be changing evry time to please check PID very firstly before running kill command..
Example:-

funkylicious

SuperUser

hi,

are you using radius for FGT management / admin access or for remote access for users?

"jack of all trades, master of none"

amitrohilla07Author

New Member

We are using for firewall management / admin access. we only face this issue when we try to login on secondary firewall. primary firewall works fine and able to access via radius authentication.

funkylicious

SuperUser

do you manage them via a in-band/out-band management ip address and is that ip address/source-ip configured on the radius server as a client ?

what does the logs say on the radius server when trying to access the 2nd device ?

"jack of all trades, master of none"

amitrohilla07Author

New Member

Hello Team,

can someone please check into this, we can discuss this issue it is having in many devices like FortiGate 100F 200F and many more. Radius server we have Cisco ISE.

funkylicious

SuperUser

hi,

this is a best effort forum type of help that anyone here can provide, based on experience and encountered situations.

if the matter is urgent, i would suggest opening a Fortinet TAC case and they will do the best to help resolve your issue.

"jack of all trades, master of none"

amitrohilla07AuthorAnswer

New Member

Fortinet has officially confirmed this is a known bug affecting all FortiGate devices. The issue is recorded with engineering and is expected to be resolved in version 7.4.9, scheduled for release in September 2025.

Current Workaround

Login to the secondary FortiGate using admin credentials
Identify the PID of the fnbamd process by running
diagnose sys process pidof fnbamd
Kill the process using:
diagnose sys kill 11 <PID>
Replace <PID> with the actual process ID (e.g., 2456)Please note the PID will be changing evry time to please check PID very firstly before running kill command..
Example:-
