assign port of lan FortiGate 60F

  • July 13, 2022
  • 1 reply
  • 8489 views

Dear All,





I have set firewall FortiGate 60F  V7.05



from

Technical Tip: How to create a VLAN tagged interface (802.1q) on a FortiGate - tagged/untagged traffic



in forum

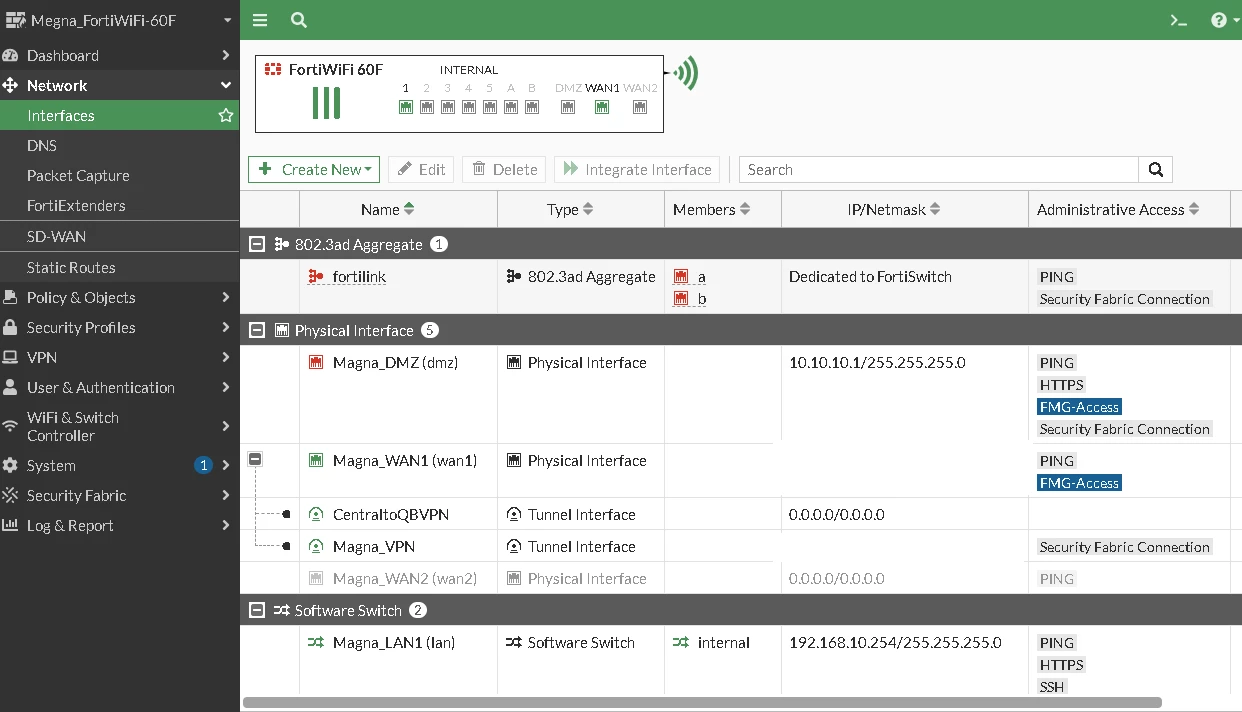

There is Lan 1 only...

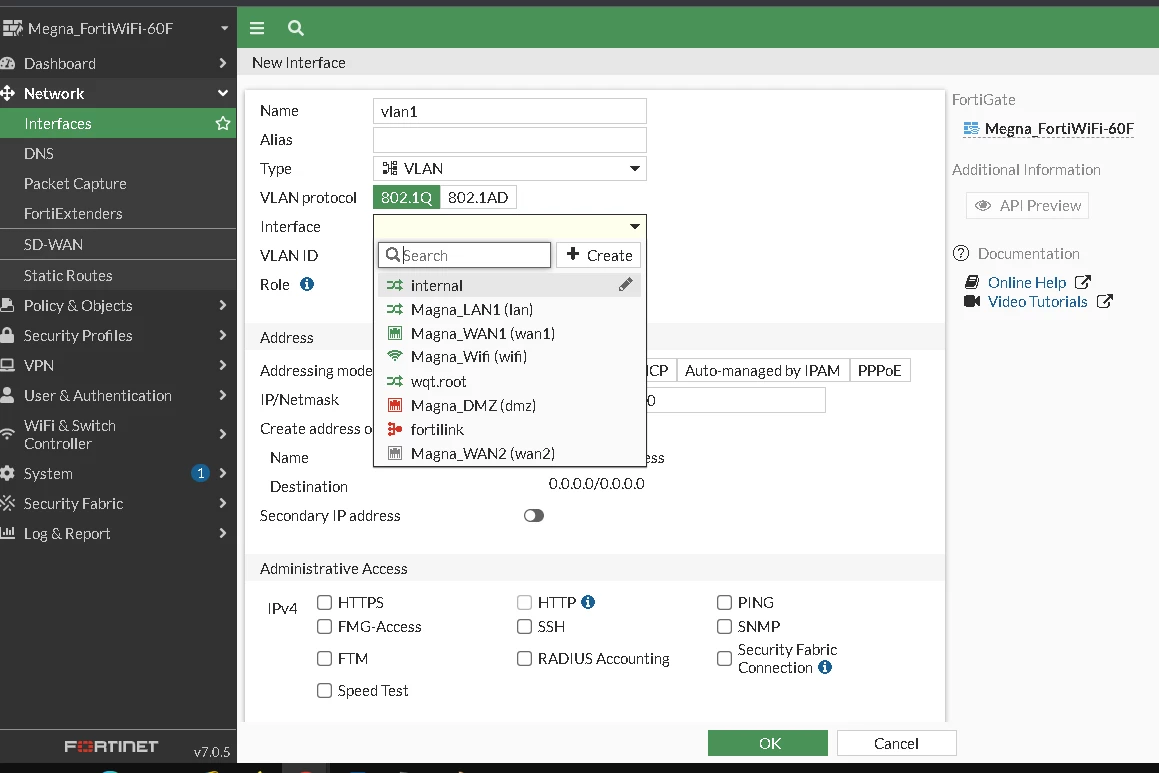

I want to separete differnet port 1 for vlan 1, port 2 for vlan2

but it show lan for total...



Please advise...

ThxLan1Lan1want to seprate vlanwant to seprate vlan



Best answer by pminarik

There is a cheeky way to remove one interface directly, without having to dismantle the soft-switch first:



  1. Open the "lan" switch interface.
  2. Notice the URL: /ng/interface/edit/lan
  3. Rewrite the URL to the name of the hw-switch and open the new URL: /ng/interface/edit/internal
  4. You should be in the GUI editor of the "internal" HW switch, and you should be able to remove the internal1/2/etc members as desired.

Apart from this, it should also still be possible to pop it out via CLI, if I remember correctly:





config system virtual switch     edit internal     config port         delete internal2     end end







1 reply

akristof
Staff
akristof
Staff
July 13, 2022

Hello,

I think your internal port is vlan switch that has all other ports internal1-internal5 as a members. So you would need to remove internal2 port from that vlan switch and then you can create VLAN under that physical interface.

IkkIMagna
IkkIMagnaAuthor
Visitor III
July 13, 2022











Ｔｈａｔ　ｉｓ　ｗｈａｔ　Ｉ　ｗａｎｔ　ｔｏ　ｄｏ．．．．

Ｉ　ｗａｎｔ　ｔｏ　ｃｈａｎｇｅ　 internal 　ｐｏｒｔ　ａｓ　ｙｏｕ　ｓａｙ，

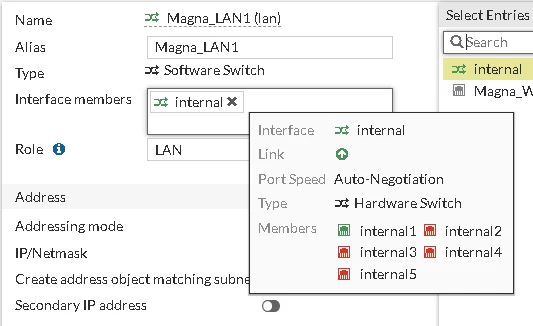

Ｉ　ａｌｓｏ　ｆｉｎｄ　ｔｈａｔ　ｉｎｔｅｒｎａｌ　ｃｏｎｔａｉｎ　ｍｅｎｂｅｒｓ　ｐｏｒｔ　１　—　ｐｏｒｔ　５

Ｐｌｓ　ａｄｖｉｓｅ　ｈｏｗ　ｔｏ　ｒｅｍｏｖｅ　ｐｏｒｔ２？

akristof
Staff
akristof
Staff
July 13, 2022

Hello,

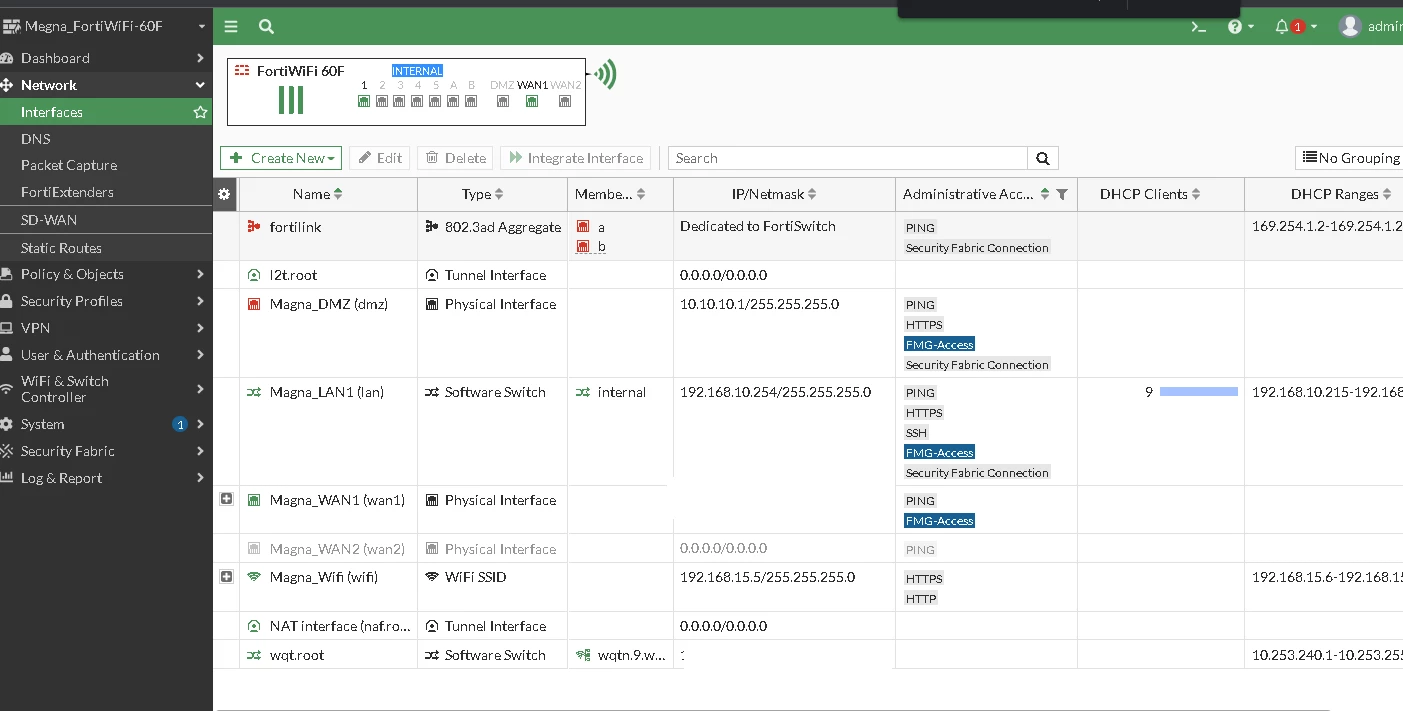

Based on the screenshot you have software-switch that has the member your internal hardware-switch. You would need to remove this hardware switch from software-switch first and then you should be able to remove internal2 from hardware-switch. But in order to do this, you will need to remove current references for that Magna_Lan1 interface.
