Assign named address SD-WAN zone

Forum|Forum|2 years ago
October 6, 2023
6 replies
4482 views

Hello everyone!
I was wondering why is not possible to assign named address to SD-Wan, or I'm missing some option/configuration that enables it.

For example:

I have this static routes

Screenshot 2023-10-06 083349.png

And I want them in a single static route with named address

I'm using a Fortigate 100E with FotiOS 7.0.12

Thank you for taking the time to read my question and for any help you can give me.

FortiGate

Best answer by TC510

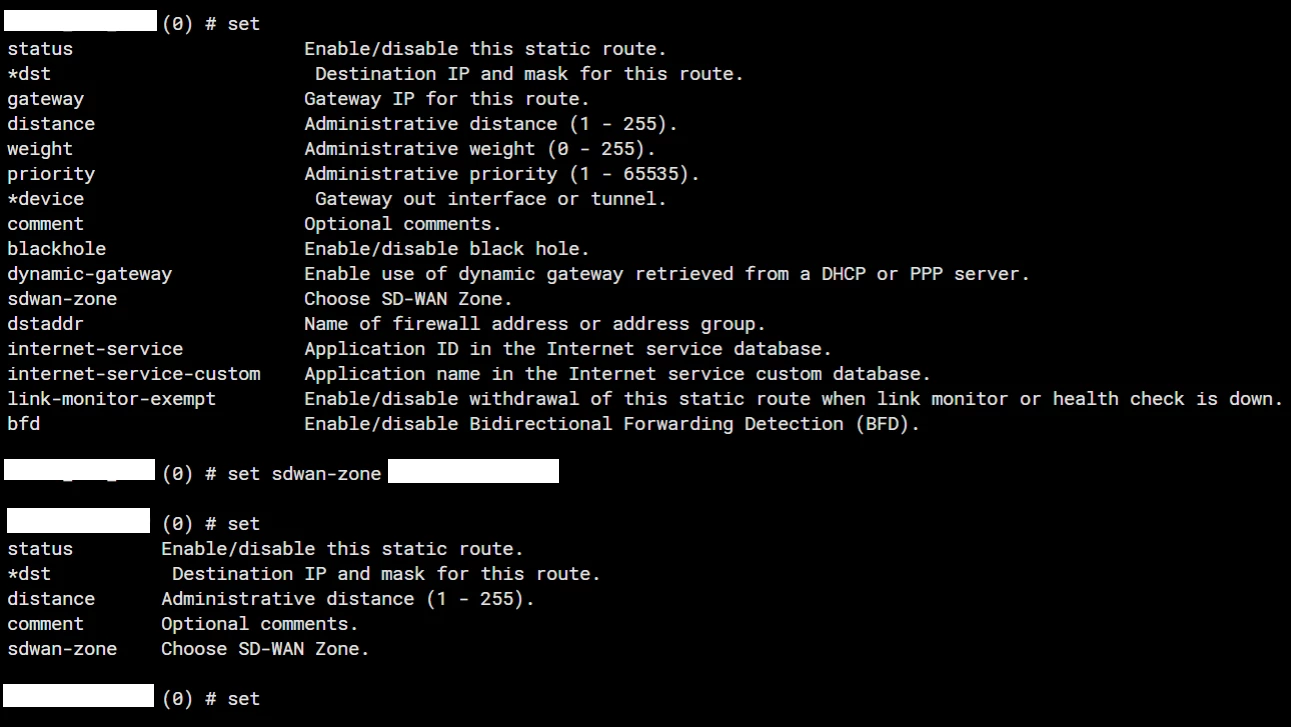

No named addresses are usable for the destination. See this comparison of available settings before and after the route is set to use SD-WAN. Note the dstaddr option is no longer there and it only accepts an IP destination. sdwan static route.png

hbac

Staff

Hi @AdrianR,

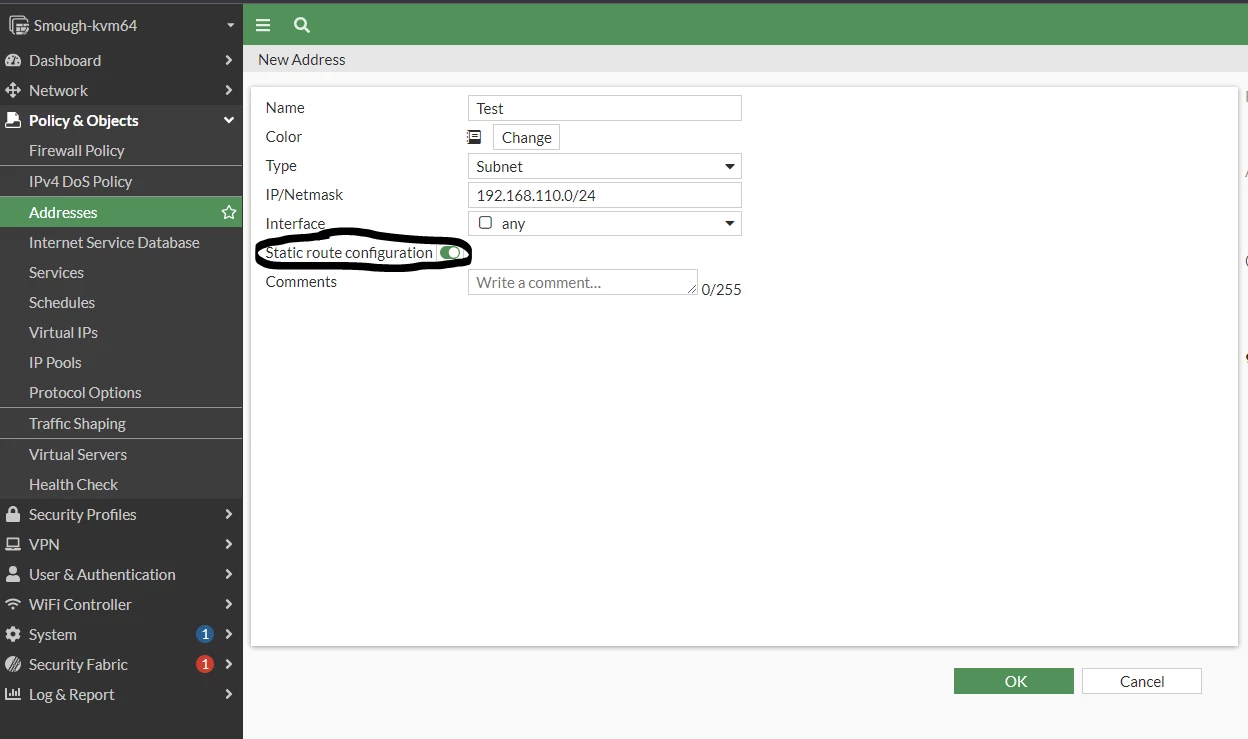

Please make sure your named address objects have "Static route configuration" enabled.

Regards,

AdrianRAuthor

Explorer II

Hello @hbac its enable, I can use it in other interfaces in static routing, only when you try to add it in a SD-wan interface you cannot. :(
