Asking for best Practice for Migrating SSL VPN to IPsec Dial-Up
Hello everyone,
We are managing the infrastructure of several environments where a FortiGate firewall is in place. Currently, we are using SSL VPN to provide remote user access to internal networks.
As Fortinet is gradually deprecating SSL VPN, the time has come (perhaps later than ideal) to migrate this service to IPsec Dial-Up VPN. However, after multiple tests, I have not yet been able to clearly identify the best-practice approach for implementing this migration, especially in terms of access control logic. I would like to explain our current setup and the challenges we are facing.
Current SSL VPN Implementation
With SSL VPN, we are used to (and quite comfortable with) the following model:
A single SSL VPN tunnel (split-tunnel)
All users connect to this tunnel
Access to internal resources is controlled purely through firewall policies
Policies are based on user groups / users, allowing granular access per destination, service, or port
This model is clean, scalable, and easy to manage.
Challenge with IPsec Dial-Up VPN
I am unable to replicate this exact logic with IPsec Dial-Up VPN. The two possible approaches I have identified so far are the following (please note that I may not be entirely correct, and I am open to correction):
1) Multiple Dial-Up Tunnels per Destination
Create different Dial-Up IPsec tunnels depending on the destination network.
Example:
User 1 needs access to 10.10.1.0/24
User 2 needs access to 10.10.2.0/24
In this case:
Create one Dial-Up tunnel allowing access to 10.10.1.0/24
Create another Dial-Up tunnel allowing access to 10.10.2.0/24
Each user connects to the tunnel assigned to them
However, this approach becomes extremely difficult to scale, especially when dealing with many users, each requiring access to different destinations, ports, or services.
2) Single Dial-Up Tunnel with Per-User Assigned IP Addresses

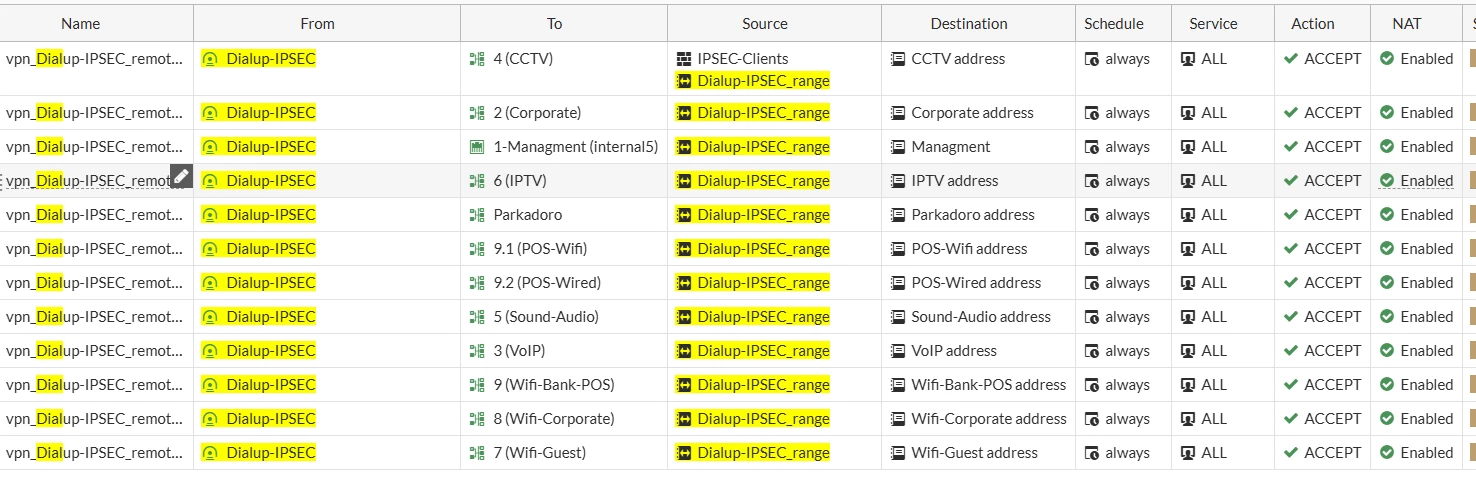

All users connect to one IPsec Dial-Up tunnel, and each user is assigned a static IP address via the configuration. Firewall policies are then written using source IP addresses to control access.
While this approach is closer to what we want, it still feels sub-optimal, as it lacks the equivalent of user or user-group objects as policy sources, which is something we can easily do with SSL VPN. Managing access purely based on source IPs per user feels cumbersome and error-prone.
Request for Guidance
It is very possible that both of the above approaches are not optimal, and this is the main reason I am opening this thread.
I would really appreciate your input on:
What is considered best practice for IPsec Dial-Up user access on FortiGate
How you personally implement user-based access control with IPsec VPN
What you would do differently if you were in my position
Any recommended design patterns or Fortinet documentation references
Thank you very much in advance for your time and valuable input.
Kind regards,
Dimitris
