Aruba IAP VLAN Pooling

  • September 8, 2022
  • 3 replies
  • 2193 views

Hi,

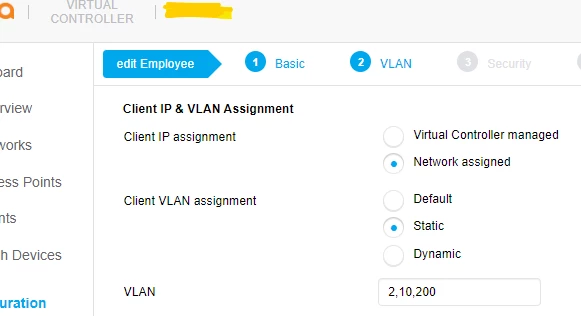

Anyone have Aruba IAP Virtual Controller and using VLAN pooling in production environment or have tested successfully? See below sample. We have newly deployed Aruba IAP VC and i see a need to add another /24 subnet as current is almost full.

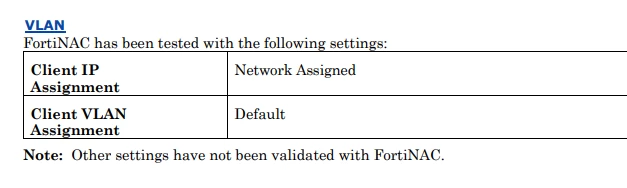

FortiNAC Aruba IAP integration guide says not validated other setting than network assigned and default setting.







3 replies

Anthony_E
Staff
Anthony_E
Staff
September 11, 2022

Hello __sec,



Thank you for using the Community Forum.

I will seek to get you an answer or help. We will reply to this thread with an update as soon as possible.



Regards,

Best Regards
Anthony_E
Staff
Anthony_E
Staff
September 16, 2022

Hello,



We are still looking an answer for your question.

We will come back to you ASAP.

Best Regards
H
Staff & Editor
Hawada1
Staff & Editor
September 20, 2022

Hi _Sec,
IAP VLAN Pooling with FNAC is not validated, but I believe it might work since FNAC assigns roles to sessions and doesn't interact with the VLAN Pools you have configured.

IF IAP behaves as Aruba Controller then it might work. Please check page 5:
https://fortinetweb.s3.amazonaws.com/docs.fortinet.com/v2/attachments/868a7a1d-200d-11e9-b6f6-f8bc1258b856/Aruba_Wireless_Controllers_and_Alcatel_Wireless_Controllers.pdf

Regards,
Hawada
