Question

ARP, L2 mapping,

  • February 22, 2023
  • 1 reply
  • 902 views

https://textdoc.co/gRsFYtQX07oKxfSW





Hello,

OK, I am at wit’s end. I have tried, nuked, tried again, and I am still stumped.

I cannot get traffic to flow to the exit interface from any point in the network. (Excluding the MDF firewalls. ARP entries for the ports are in the FW table.) I assume this is simpler than I think, but I am missing it. Any thoughts on the matter would GREATLY be appreciated.

The switch configs are bare as I am reverting the changes from testing.

Thanks,

D,








1 reply

A
Anonymous_User
New Contributor III
February 23, 2023

Hi @CusterMD ,

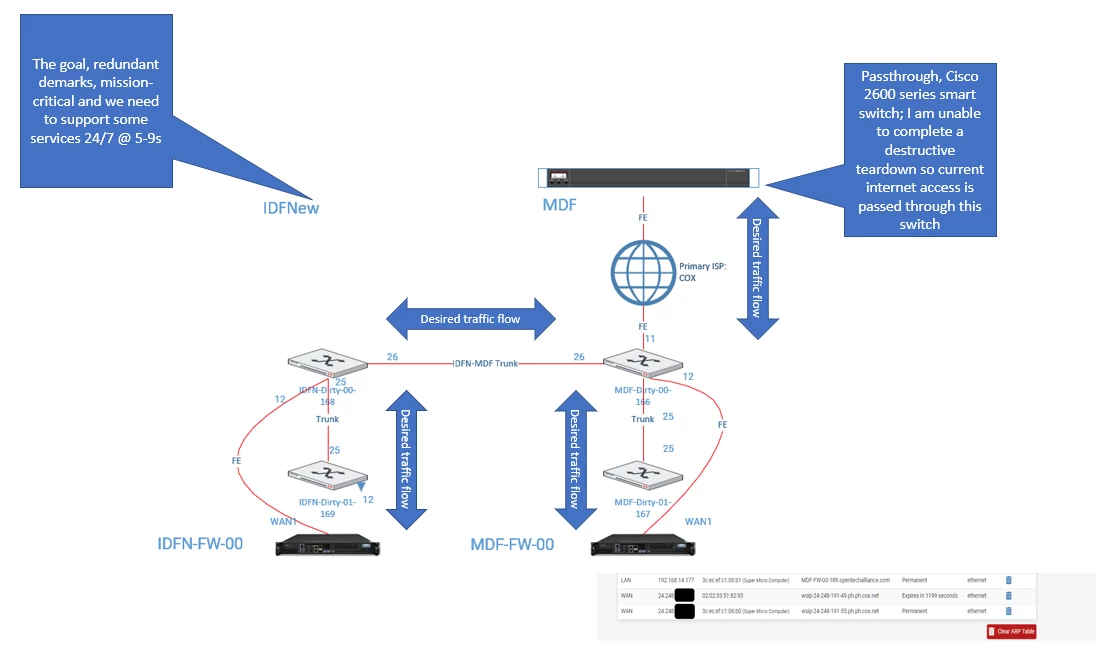

From the provided diagram, i can generate about 3-4 scenario. Different scenario, different troubleshooting step.
The information on the diagram is not sufficient for me to comments further.



May i know, where is the Fortinet device located? Is the Switch, Fortigate in HA?
Please put IP address too so i will be helpful to assist you with the troubleshooting step.
