Apipa FortiClient doesn't work with win11

  • November 9, 2022
  • 5 replies
  • 8142 views

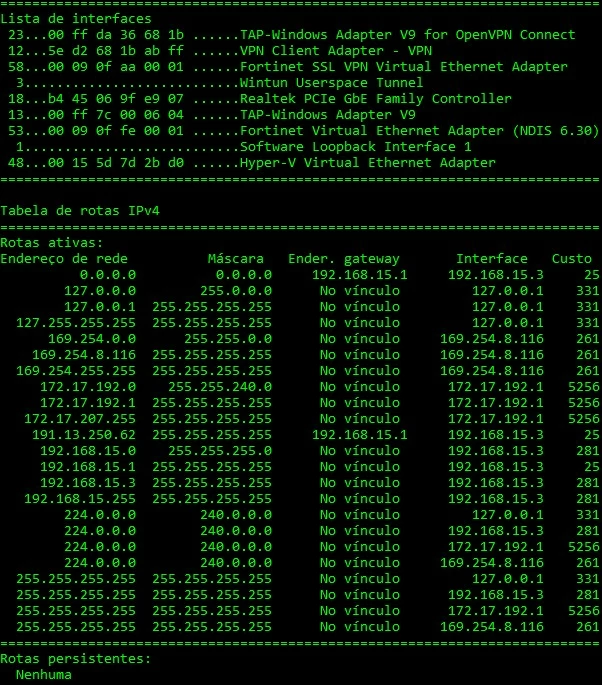

Hi guys, Windows 11, I connect to vpn FortiClient 7.0.7.0345 but the route print output is apipa.






Best answer by yimc

These case was solved after Windows update.

5 replies

ebilcari
Staff
ebilcari
Staff
November 10, 2022

If the client is stuck on APIPA than something is wrong with the DHCP server/scopes or the network you have configured for that VPN.

Emirjon
Sheikh
Staff
Sheikh
Staff
November 10, 2022

Hi Yimc,



You might need to run Packet capture using "Wireshark" or some other tools, to find whether the DHCP handshake process is completed or stuck at some point. Below are the four messages exchanged during this process.



1. Discover : Client broadcast to find available DHCP servers.

2. Offer: If the DHCP server is available, then it responds with available address and options.

3. Request: Client requests offered address.

4. Ack: Server acknowledges client's requests for address information.



regards,



Sheikh

yimc
yimcAuthor
New Member
November 10, 2022

hi Sheikh! Thanks to help me,

Is works in Windows 10! I will try wireshark, I didn't know it!

pminarik
Staff
pminarik
Staff
November 10, 2022

Assuming this is SSL-VPN (can you confirm?), I remember seeing the client default to APIPA when the IP to be assigned was in conflict with another interface's IP/subnet.

Can you please check what IP ranges the FortiGate is using to assign IPs to clients, and then verify that it doesn't overlap with the subnet of any other interface on that client?

yimc
yimcAuthor
New Member
November 11, 2022

My team did this, but the problem still exists.
I connect to the VPN, still get APIPA IP, I can't reach the machines via mstsc or ping.

About Wireshark , what you need to help me?

pminarik
Staff
pminarik
Staff
November 11, 2022

I don't think that wiresharking is particularly helpful in this case, as the IP is not assigned through DHCP (it's assigned through some HTTPS-like communication in SSL-VPN itself).

You may want to inspect your FortiClient's debug logs (switch to debug level) + FortiGate's sslvpn debug outputs, gathered while the issue is being reproduced.



If you have an EMS license, consider reaching out to TAC through a support ticket (provide the EMS serial number) for assistance.

yimc
yimcAuthorAnswer
New Member
July 3, 2023

These case was solved after Windows update.

Moulins_BOURGEOIS
Moulins_BOURGEOIS
New Member
April 2, 2024

Hello,



Having exactly the same issue since 5 months. Connection to Forticlient is successful, but the network adapter keep Apipa address. Tested exactly the same username and parameter on Windows 10, it work.

Forticlient have been uninstalled many times, network adapter disabled, Windows is up to date.

Forticlient VPN Version 7.2.4.0972

Windows 11 22H2 Build no 22621.3296



Thanks in advance for your help.

anang_harianto
anang_harianto
New Member
April 10, 2024

i have the same issue and condition, do you already have solved that problem?, may you share the solution. thanks for your help.

anang_harianto
anang_harianto
New Member
April 12, 2024

Hi Guys...
I have solved my problem with flush dns form my command prompt, then i restart my laptop, connected forticlient, then i successfully connected to my local network. I hope this usefull for another friend with the same problem. thank you.
