Question

Allow IPSec traffic port 4500

  • March 8, 2024
  • 5 replies
  • 7217 views

Hello,



We have a customer who will be sending us a VPN router to facilitate a connection to their intranet and they have stated that I'll need to allow IPSec traffic on port 4500.  I tried to create a policy for this but quickly remembered I have no idea what I'm doing with these routers.


Here is what I have so far...



There was no service for IPSec, so I tried to create one, which I doubt is the correct way to go.

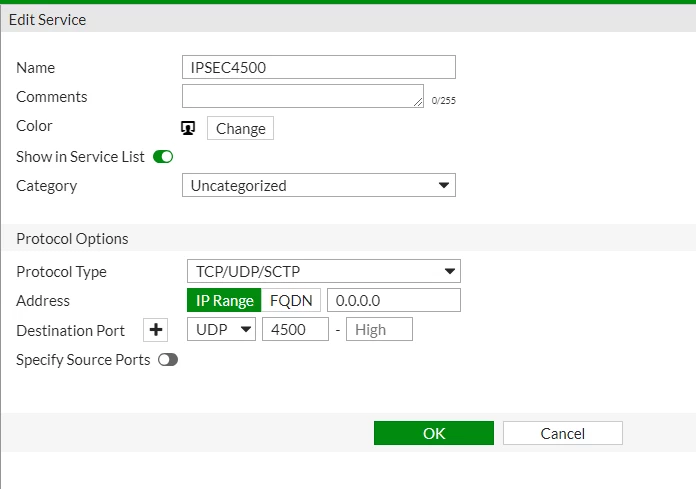

2024-03-08 11_55_54-FortiGate - 60E_HQ - Brave.png





I then created a policy:

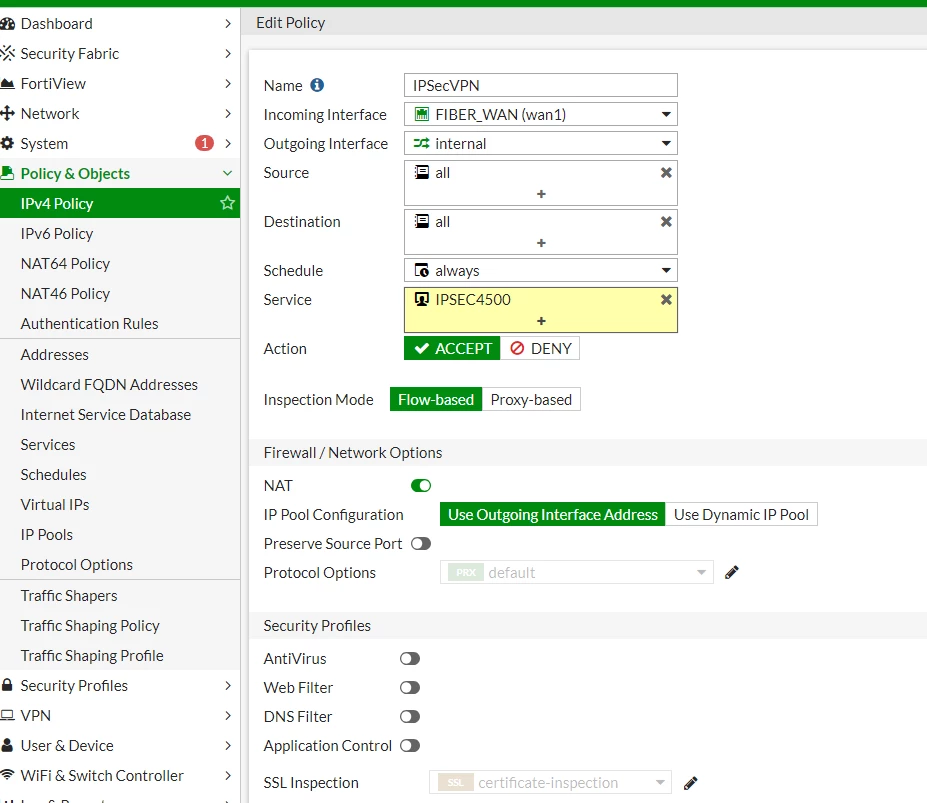

2024-03-08 11_56_06-FortiGate - 60E_HQ - Brave.png



I've tested numerous attempts/iterations of the policy with an online port checker and it's closed.



Are these forums my only source of support, or do I have access to vendor support with an active subscription?


Any help is appreciated.  I realize I'm probably leaving out necessary details, my apologies.

5 replies

AEK
SuperUser
AEK
SuperUser
March 8, 2024

Hi @MeoDub

If there is nothing listening behind then the port checker will show you the port is closed.

Once you install the router you should see the port open.

AEK
    MeoDub
    MeoDubAuthor
    Explorer II
    March 8, 2024

    Ah, well I guess that makes sense.  I'll wait for the hardware to arrive and go from there.




    Thank you for the response.

    hhasny
    Staff
    hhasny
    Staff
    March 9, 2024

    Hi @MeoDub ,

    If you looking for UDP/4500 for IPSec it would be IKE service. The IKE service includes UDP/500 UDP/4500.



    How exactly the connection would be? Is the traffic initiated from internal to external?



    regards,

    mpeddalla
    Staff
    mpeddalla
    Staff
    March 9, 2024

    Hello @MeoDub  ,



    Thank you for contacting the Fortinet Forum portal.

    Please check the article below, there are already defined services for the IPsec ports, Make sure if there are any other custom ports they are requesting and add them additionally if required.

    https://community.fortinet.com/t5/FortiGate/Technical-Tip-Allow-IPsec-VPN-ports-and-protocol-access-to/ta-p/251878





    Best regards,

    Manasa.



    If you feel the above steps helped to resolve the issue mark the reply as solved so that other customers can get it easily while searching on similar scenarios.

    hbac
    Staff
    hbac
    Staff
    March 9, 2024

    Hi @MeoDub.,



    You want to allow port 4500 to another router behind the FortiGate? If yes, you'll need to configure port forwarding using VIP. https://community.fortinet.com/t5/FortiGate/Technical-Tip-Virtual-IP-VIP-port-forwarding-configuration/ta-p/198143



    However, it might cause issues as FortiGate itself also uses port 4500 for NAT-T.



    Regards,
