ADVPN Shortcut stuck in delete SA phase 1

  • December 21, 2024
  • 1 reply
  • 1913 views

Hi all,

My situation:

I run SDWAN use ADVPN BGP on loopback between HQ and 4 branches, HQ is Hub and Branches is spokes.

When Branch 1 talk to Branch 2. Spoke -  Spoke tunnel is established successfully, I set up tunnel idle timeout, and tunnel is down after 10 minutes, if no traffic, it's good.

But, I have Br03 and Br04, they always talk each others, so Spoke-Spoke tunnel will not down after 10 minutes (it's correct).

I set Lifetime phase 1 :1days and Lifetime phase 2: 12 Hours. And I saw trouble here:

 - After 1 days. spoke-spoke  tunnel between Br03 and Br04 is re-established but it has trouble, I saw in logs, it's stucked at action: delete_phase1_sa , around 5 minutes.  And after around 5 minutes, tunnel  spoke - spoke is not iusse, it working fine. And I saw log, after 5 minutes, Sopke-spoke only down.



During 5 minutes, the trouble make loss connection between Br03-Br04.



My connections: each BR has 2 ISP lines, BR03 tunnel of ISP1 connect to BR04 tunnel of ISP1, same: BR03 ISP2 <--> BR04 ISP2 , using IKEv2, and  all Firewall FGTs are using FortiOS 7.4.4.



Actually, I still don't understand what is wrong? Hope get suggestion , thanks so much !

1 reply

kaman
Staff
kaman
Staff
December 21, 2024

Hi tungnx59,

The deletion of the Phase 1 SA is part of the rekeying process. The log message confirms that the VPN tunnel’s existing SA has been removed to allow a new SA to be negotiated. This is a common practice in IPsec VPNs to refresh encryption keys or when SA lifetimes expire. The FortiGate continues to manage traffic while ensuring that the negotiation of a new SA does not interrupt the VPN connection.

Please refer to the below document for more information:
https://community.fortinet.com/t5/FortiGate/Technical-Tip-Understanding-IPsec-Phase1-SA-Deleted-Log-Message/ta-p/347470


    tungnx59
    tungnx59Author
    Explorer
    December 22, 2024

    Thanks for your reply,

    I dont understand, why do "The FortiGate continues to manage traffic while ensuring that the negotiation of a new SA does not interrupt the VPN connection ", this action make loss connection between 2 sites . Maybe BGP can not update routes via Spoke - Spoke tunnel during  IPSEC rekey.

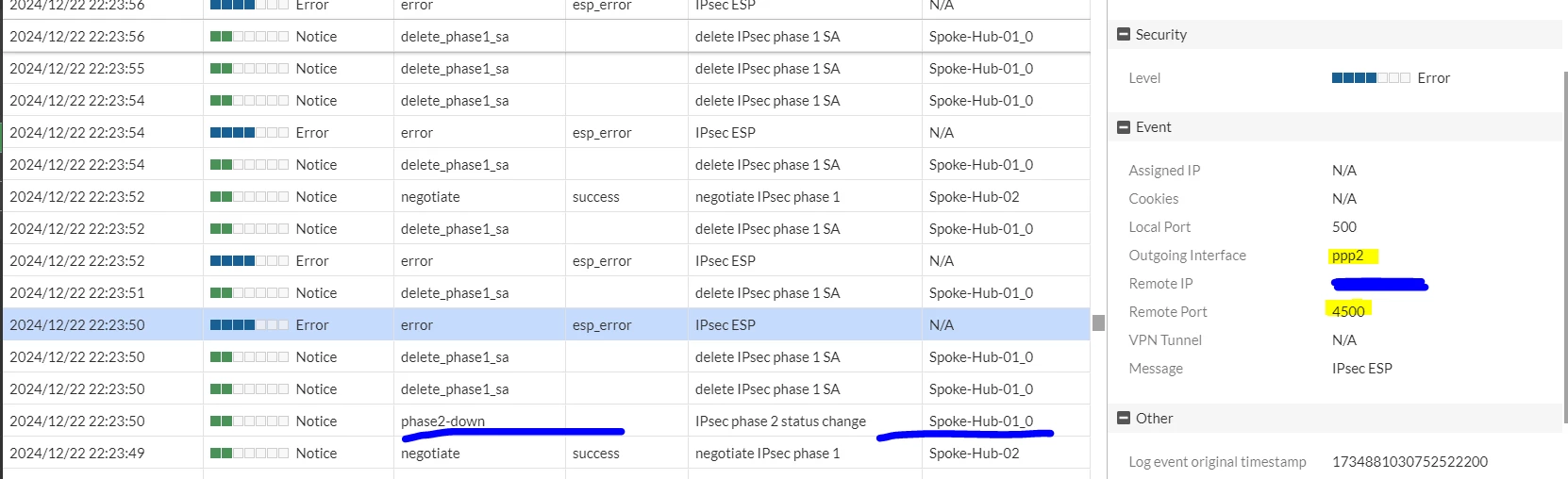

    And i saw error log at start time of issue: the FGT 03 recieved SPI error from FGT04 with 4500






    you can see a lot of message of delete SA phase 1. After ~5 mintues, this situation is finishied  and tunnel spoke-spoke is fine.
