Addressing mode Dedicated to FortiSwitch missing

  • November 5, 2023
  • 2 replies
  • 3123 views

Hello!

This is my first time working with a Fortigate 100F router. I was trying to the the Fortilink to work. I was able to get the switches to show up and online however my access points would not. I played with it for a while and ended up changing the address mode on the Fortilink to lan and the Dedicated to FortiSwitch option is now missing. So I have two questions:


A) How do I set the setting back on the Fortilink so that the dedicated to FortiSwitch is the addressing scheme?



and


B) How can I get the access points to come online with the Fortilink connections between the switches and router?



Thank you in advance for the help!

2 replies

ebilcari
Staff
ebilcari
Staff
November 6, 2023



Try to edit it from CLI (default configuration should look like this):

config system interface
 edit "fortilink"
   set vdom "root"
   set fortilink enable
   set ip 10.255.1.1 255.255.255.0
   set allowaccess ping fabric
   set type aggregate
   set lldp-reception enable
   set lldp-transmission enable
   set snmp-index 7
   set auto-auth-extension-device enable
   set lacp-mode static

use unset command to remove the role if necessary.

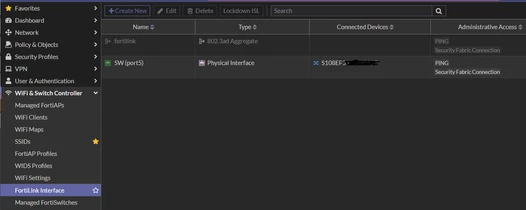

You can also dedicate a single port to FortiLink if needed:

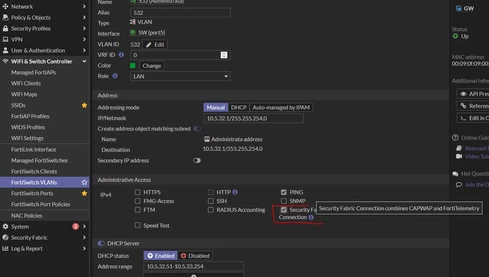

For the FortiAPs you just need to create a VLAN (subnet dedicated to AP management) enable DHCP and Security Fabric Connection. The APs will get IP and information via DHCP to reach and be auto discovered by FGT. The last step will be authorization.

AP mgmt.PNG

Emirjon
mtomp
mtompAuthor
New Member
November 6, 2023

Thank you so much for the reply! I will give this a try next time I am onsite. Does the Fortilink have to be used to manage the switches from the router or can the SFP ports just be used as regular ports and still manage the switches and APs?
