Hello i have a pair of 400 switches connecting via 2 x 10GB MC-LAG ICL - you can call this my distribution layer



then i have a group of 448D's which at this time are not connected , This is a new deployment. - this can be considered my access layer.



My question is - how do i connect my access layer to my distribution layer in this scenario - i

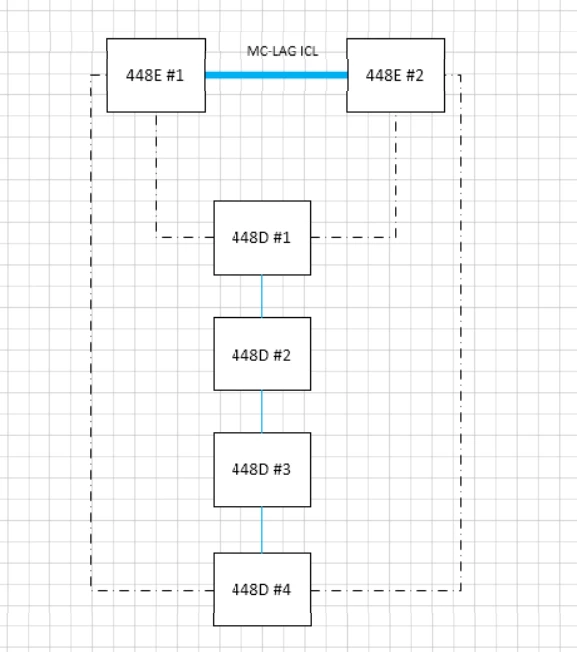

Does this look correct?



Will this provide me with enough redundancy at the access layer?








3 replies

ebilcari
Staff
Staff
December 1, 2023

Are all this Standalone Fortiswitches, is there any FortiGate managing them?

Without a FortiGate, the topology options are a bit limited you should relay on MC/LAG and STP for redundancy/throughput since there is no option to stack all the access layer switches (thin blue line).

Emirjon
blackstark
Explorer II
December 1, 2023

yes i have a fortigate and the switches are managed via fortilink

ebilcari
Staff
Staff
December 1, 2023

than I guess FGT is in HA, you can go with one of the suggested topologies for FortiLink mode:

Emirjon
